575 GM 540 V-8 1986-1992 - Serial 0A677429 Thru 0D763716 - Fuel Pump, Carburetor And Linkage

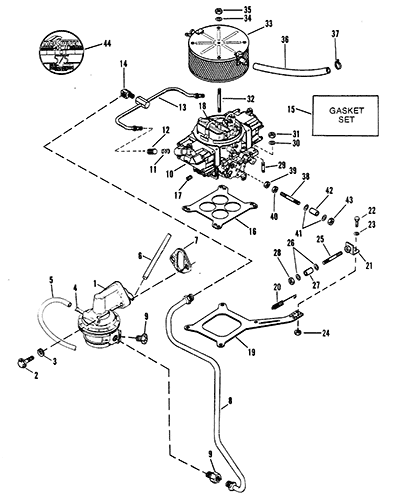

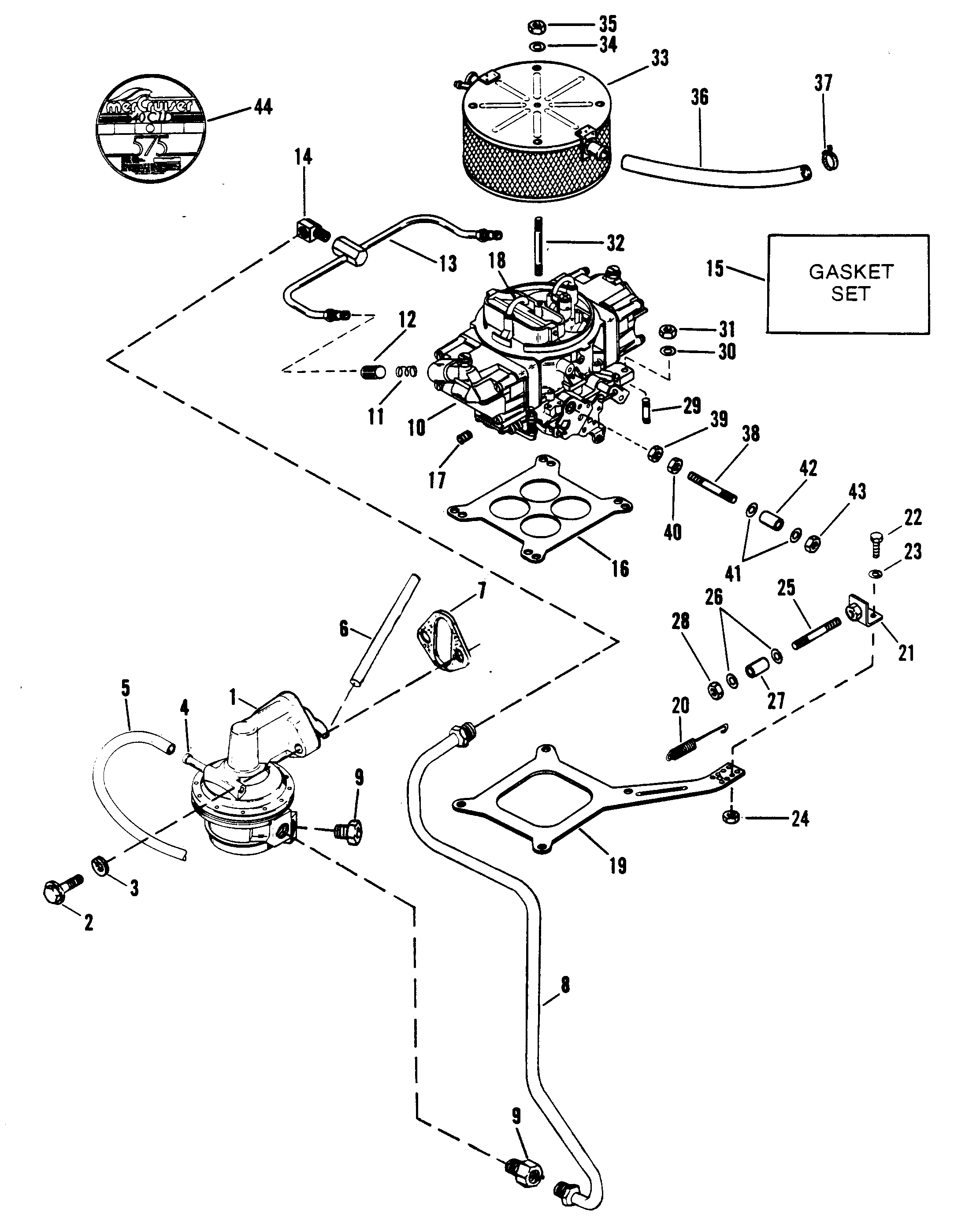

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (55 Amp) - Motorola #8MR2039K
- Alternator (Motorola 8EM2003KA)
- Audio Warning System
- Crankshaft, Pistons And Connecting Rods (460)
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Drive Shaft And Tailstock (Drive Line)
- Exhaust Manifold
- Flywheel Housing
- Fuel Pump, Carburetor And Linkage
- Intake Manifold And Front Cover
- Miscellaneous Parts-Accessories
- Mount Plates (Single, Side By Side Engines)
- Mount Plates (Staggered Engines)
- Oil Cooler (Transmission)
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components (M0031-022)
- Power Steering Components (M0036-022)
- Reservoir Bottle
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Motor
- Thermostat Housing And Water Hoses
- Transmission (Drive Line)
- Transmission (Plug-In)
- Wiring Harness, Electrical And Ignition
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 92864 | FUEL PUMP | 1 | ||||||
| 2 | 10-37612 | SCREW, FUEL PUMP (1-1/4") | 2 | ||||||
| 3 | 13-35048 | LOCKWASHER, FUEL PUMP SCREW | 2 | ||||||
| 4 | 22-85822 | CONNECTOR, FUEL PUMP | 1 | ||||||
| 5 | 32-9337070 | SIGHT TUBE | 1 | This Part is No Longer Available | |||||
| 6 | 35377 | ROD, FUEL PUMP | 1 | ||||||
| 7 | 27-34213 | GASKET, FUEL PUMP | 1 | 2 | |||||
| 8 | 32-93557 | FUEL LINE, FUEL PUMP TO CARBURETOR | 1 | This Part is No Longer Available | |||||
| 9 | 22-33821 | FITTING, FUEL LINE TO FUEL PUMP | 2 | ||||||
| 10 | 12377A2 | CARBURETOR | 1 | This Part is No Longer Available | |||||
| 11 | 24-48143 | SPRING, FILTER | 2 | ||||||
| 12 | 35-93568 | FILTER | 2 | ||||||
| 13 | 32-12837A1 | TUBE, FUEL INLET | 1 | 32-12837 | This Part is No Longer Available | ||||
| 14 | 22-93385 | ELBOW, FUEL INLET TUBE | 1 | ||||||
| 15 | 27-42270A1 | GASKET SET | 1 | 2 | |||||
| 16 | 27-42270A1 | GASKET, FLANGE | 1 | 27-12732 | 2 | ||||
| 17 | 1399-650892 | JET | 4 | ||||||
| 18 | 32-42265 | TUBE, VENT | 2 | ||||||
| 19 | 128493 | BRACKET, THROTTLE | 1 | 128492 | This Part is No Longer Available | ||||
| 20 | 24-897454 | SPRING, THROTTLE RETURN | 1 | 24-32817 | |||||
| 21 | 15017 | THROTTLE BRACKET | 1 | ||||||
| 22 | 10-78291 | SCREW, THROTTLE BRACKET | 2 | ||||||
| 23 | 13-26996 | LOCKWASHER, THROTTLE BRACKET SCREW | 2 | ||||||
| 24 | 11-79989 | NUT, THROTTLE BRACKET SCREW | 2 | ||||||
| 25 | 16-98851 | STUD, CABLE | 1 | No longer made, limited availability | |||||
| 26 | 12-69056 | WASHER, CABLE STUD | 2 | 12-21631 | |||||
| 27 | 23-31866 | SPACER, CABLE STUD | 1 | ||||||
| 28 | 11-826709109 | NUT, CABLE STUD | 1 | 11-20586 | |||||
| 29 | 16-96108 | STUD, CARBURETOR | 4 | This Part is No Longer Available | |||||
| 30 | 12-20084 | WASHER, CARBURETOR STUD | 2 | ||||||
| 30 | 12-848136 | WASHER, CARBURETOR STUD | 2 | 12-39167 | |||||
| 31 | 11-82670911 | NUT, CARBURETOR STUD | 4 | 11-35814 | |||||
| 32 | 16-30668 | STUD, FLAME ARRESTOR | 1 | ||||||
| 33 | 123752 | FLAME ARRESTOR | 1 | 123751 | This Part is No Longer Available | ||||
| 34 | 12-22753 | WASHER, FLAME ARRESTOR STUD | 1 | ||||||
| 35 | 11-82670911 | NUT, FLAME ARRESTOR STUD | 1 | 11-35814 | |||||
| 36 | 32-8M0062669 | HOSE, VENT (11") | 2 | 32-9331512 | |||||
| 37 | 69355 | STA-STRAP, VENT HOSE | 4 | ||||||
| 38 | 16-728091 | STUD, THROTTLE CABLE TO CARBURETOR | 1 | 16-72809 | |||||
| 39 | 11-826709109 | NUT, THROTTLE CABLE STUD (1/4-28) | 1 | 11-20586 | |||||
| 40 | 11-21825 | NUT, THROTTLE CABLE STUD (1/4-28) | 1 | ||||||
| 41 | 12-29245 | WASHER, THROTTLE CABLE STUD | 2 | ||||||
| 42 | 23-53811 | SPACER, THROTTLE CABLE STUD | 1 | ||||||
| 43 | 11-8267098 | NUT, THROTTLE CABLE STUD (1/4-20) | 1 | 11-56374 | |||||
| 44 | 37-1372349 | DECAL, CARBURETOR COVER | 1 | This Part is No Longer Available |
