575 GM 540 V-8 1986-1992 - Serial 0A677429 Thru 0D763716 - Wiring Harness, Electrical And Ignition

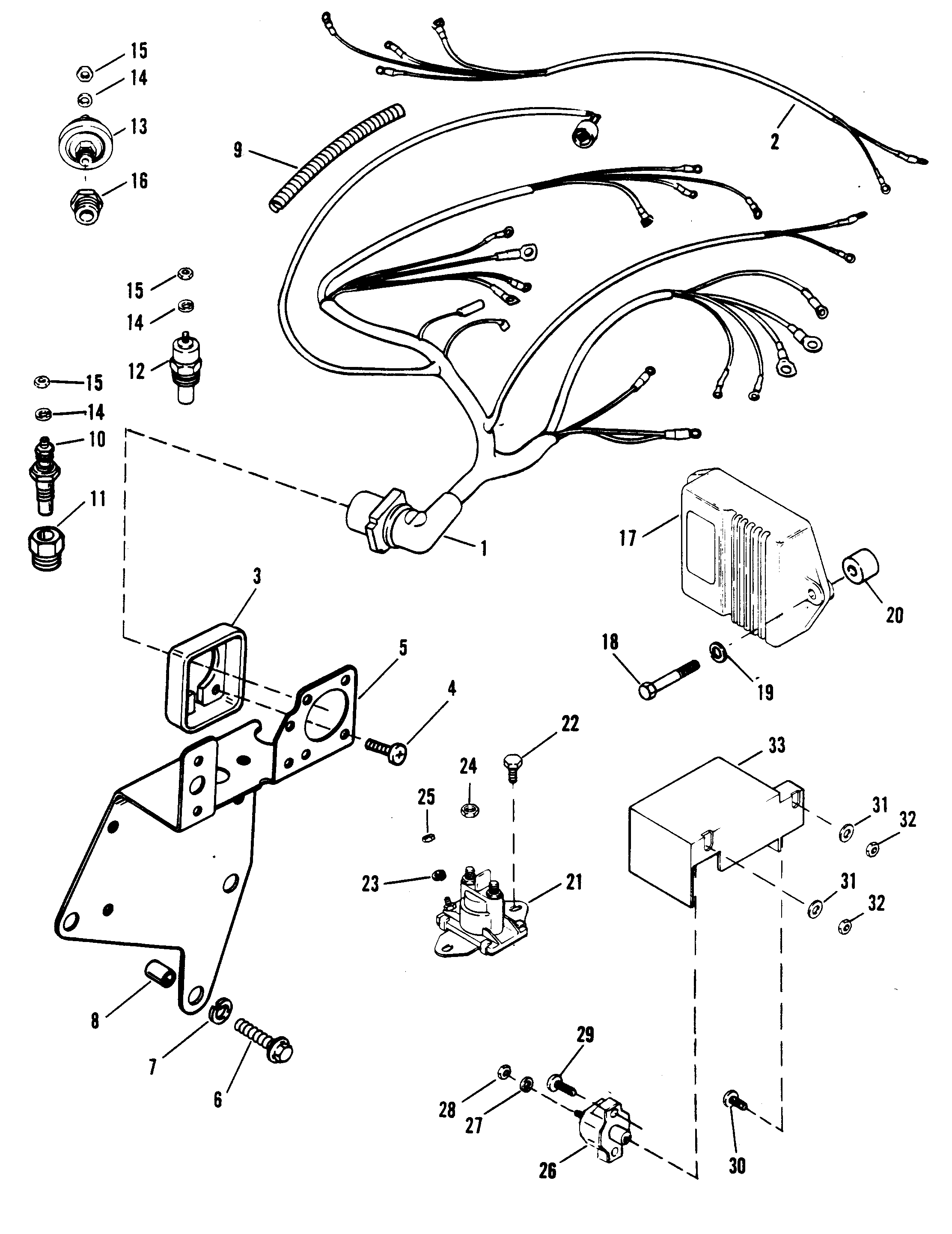

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (55 Amp) - Motorola #8MR2039K
- Alternator (Motorola 8EM2003KA)
- Audio Warning System
- Crankshaft, Pistons And Connecting Rods (460)
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Drive Shaft And Tailstock (Drive Line)
- Exhaust Manifold
- Flywheel Housing
- Fuel Pump, Carburetor And Linkage
- Intake Manifold And Front Cover
- Miscellaneous Parts-Accessories
- Mount Plates (Single, Side By Side Engines)
- Mount Plates (Staggered Engines)
- Oil Cooler (Transmission)
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components (M0031-022)
- Power Steering Components (M0036-022)
- Reservoir Bottle
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Motor
- Thermostat Housing And Water Hoses
- Transmission (Drive Line)
- Transmission (Plug-In)
- Wiring Harness, Electrical And Ignition
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 84-14338T5 | WIRING HARNESS | 1 | 84-14338A1 | |||||
| 2 | 84-14338T5 | WIRING HARNESS | 1 | 84-14337A1 | |||||
| 3 | 26079A2 | PLATE, WIRING HARNESS TO MOUNTING BRACKET | 1 | ||||||
| 4 | 10-34696 | SCREW, USE WITH METAL PLATE | 4 | ||||||
| 4 | 10-15001 | SCREW, USE WITH PLASTIC PLATE | 4 | ||||||
| 5 | 14037 | BRACKET, MOUNTING | 1 | ||||||
| 6 | 10-37612 | SCREW, BRACKET | 3 | ||||||
| 7 | 13-35048 | LOCKWASHER, BRACKET SCREW | 3 | ||||||
| 8 | 23-90523 | SPACER, BRACKET SCREW | 3 | ||||||
| 9 | 32-77690 | WRAPPING, PLASTIC (1/4" DIA) | 1 | ||||||
| 10 | 13611 | OIL TEMPERATURE SENDER | 1 | ||||||
| 11 | 22-36492 | BUSHING, REDUCER | 1 | ||||||
| 12 | 806490T | WATER TEMPERATURE SENDER | 1 | 97257A1 | |||||
| 12 | 49734 | WATER TEMPERATURE SENDER (DUAL) | OPT. | 49734A1 | 3 | ||||
| 13 | 8M0068784 | OIL PRESSURE SENDER | 1 | 90806 | |||||
| 13 | 37293T | OIL PRESSURE SENDER (DUAL) | OPT. | 37293 | 3 | ||||
| 14 | 13-26996 | LOCKWASHER, SENDER TERMINAL (#10) | 3 | ||||||
| 15 | 11-68219 | NUT, SENDER TERMINAL (#10) | 3 | ||||||
| 16 | 22-64013 | REDUCER, OIL PRESSURE SENDER | 1 | ||||||
| 17 | 17316A1 | IGNITION AMPLIFIER (W/HARNESS 84-15275A1) | 1 | This Part is No Longer Available | |||||
| 18 | 10-76630 | SCREW, IGNITION AMPLIFIER | 3 | ||||||
| 19 | 13-26992 | LOCKWASHER, IGNITION AMPLIFIER SCREW | 3 | ||||||
| 20 | 23-92152T | SPACER, IGNITION AMPLIFIER SCREW | 3 | 23-92152 | |||||
| 21 | 89-96054T | STARTER SOLENOID | 1 | 89-96054 | |||||
| 22 | 10-98253 | SCREW, STARTER SOLENOID | 2 | ||||||
| 23 | 13-26992 | LOCKWASHER, STARTER SOLENOID TERMINAL | 2 | ||||||
| 24 | 11-94330 | NUT, STARTER SOLENOID TERMINAL (1/4-20) | 2 | ||||||
| 25 | 11-26419 | NUT, STARTER SOLENOID TERMINAL (10-32) | 2 | ||||||
| 26 | 88-11178A01 | CIRCUIT BREAKER (50 AMP) | 1 | 88-11178 | This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work. | ||||
| 27 | 13-26996 | LOCKWASHER, CIRCUIT BREAKER TERMINAL | 2 | ||||||
| 28 | 11-68219 | NUT, CIRCUIT BREAKER TERMINAL | 2 | ||||||
| 29 | 10-45862 | SCREW, CIRCUIT BREAKER (7/8") | 2 | ||||||
| 30 | 10-71405 | SCREW, INSULATOR (7/16") | 1 | This Part is No Longer Available | |||||
| 31 | 12-56681 | WASHER, CIRCUIT BREAKER SCREW | 2 | ||||||
| 32 | 11-46438 | NUT, INSULATOR SCREW | 2 | ||||||
| 33 | 85-96819T | INSULATOR, CIRCUIT BREAKER | 1 |
