575 GM 540 V-8 1986-1992 - Serial 0A677429 Thru 0D763716 - Flywheel Housing

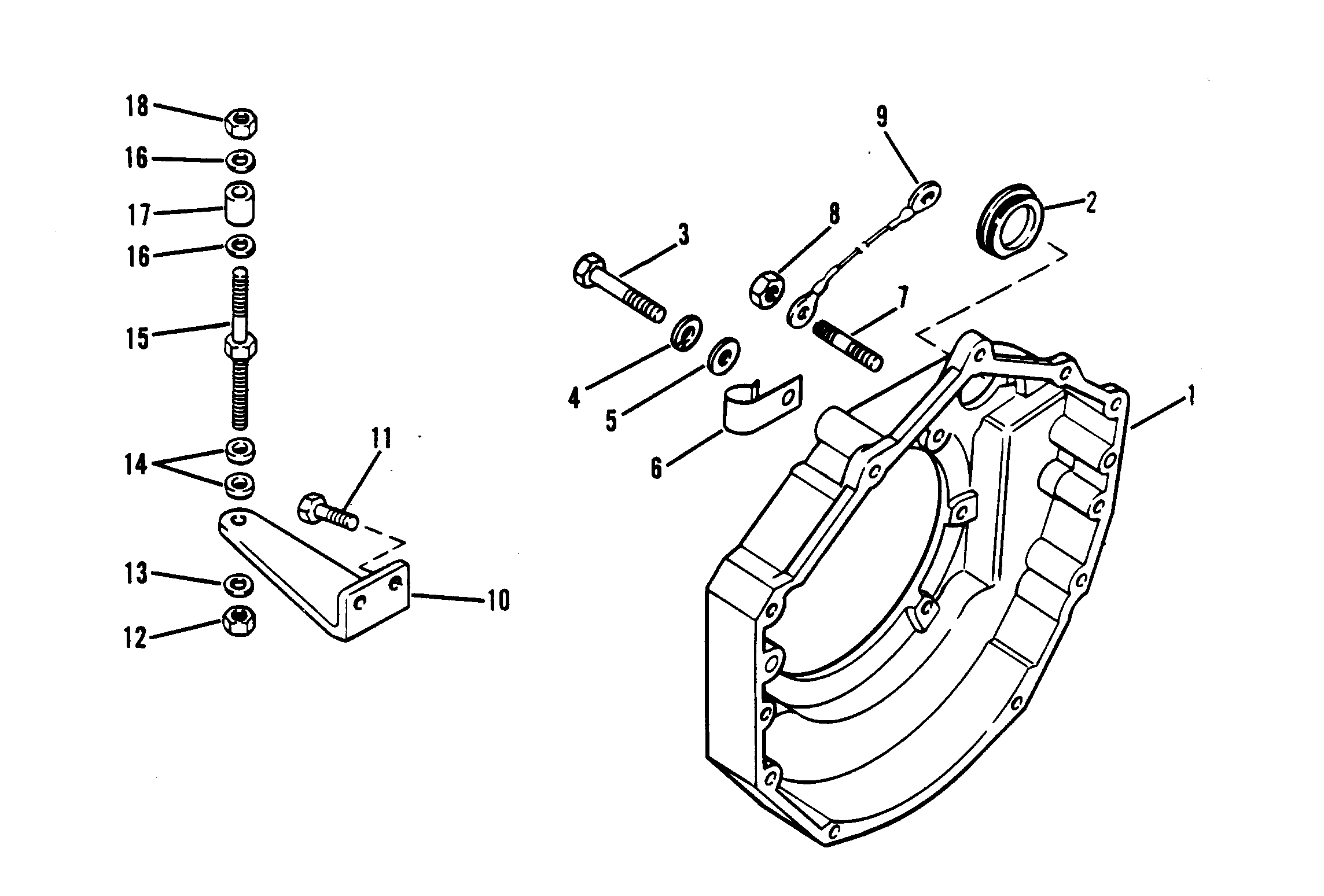

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (55 Amp) - Motorola #8MR2039K
- Alternator (Motorola 8EM2003KA)
- Audio Warning System
- Crankshaft, Pistons And Connecting Rods (460)
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Drive Shaft And Tailstock (Drive Line)
- Exhaust Manifold
- Flywheel Housing
- Fuel Pump, Carburetor And Linkage
- Intake Manifold And Front Cover
- Miscellaneous Parts-Accessories
- Mount Plates (Single, Side By Side Engines)
- Mount Plates (Staggered Engines)
- Oil Cooler (Transmission)
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components (M0031-022)
- Power Steering Components (M0036-022)
- Reservoir Bottle
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Motor
- Thermostat Housing And Water Hoses
- Transmission (Drive Line)
- Transmission (Plug-In)
- Wiring Harness, Electrical And Ignition
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 44187T | HOUSING, FLYWHEEL | 1 | 441871 | |||||
| 2 | 19-12304 | PLUG, TIMING WINDOW | 1 | ||||||
| 3 | 10-37612 | SCREW, FLYWHEEL HOUSING | 3 | ||||||
| 3 | 10-47688 | SCREW, FLYWHEEL HOUSING | 2 | ||||||
| 4 | 13-35048 | LOCKWASHER, FLYWHEEL HOUSING | 7 | SCREW AND STUD | |||||
| 5 | 12-20553 | WASHER, FLYWHEEL HOUSING SCREW | 5 | ||||||
| 5 | 12-20572 | WASHER, FLYWHEEL HOUSING SCREW | 1 | (FOR SLOT) | |||||
| 6 | 54-62494 | CLAMP, FLYWHEEL HOUSING SCREW | 1 | ||||||
| 7 | 16-64066 | STUD, FLYWHEEL HOUSING (2-1/4") | 2 | ||||||
| 8 | 11-32219 | NUT, FLYWHEEL HOUSING STUD | 2 | ||||||
| 9 | 84-62826A7 | WIRE ASSEMBLY, GROUND | 1 | This Part is No Longer Available | |||||
| 10 | 17917 | BRACKET, SHIFT | 1 | ||||||
| 11 | 10-28668 | SCREW, SHIFT BRACKET | 2 | ||||||
| 12 | 11-826709109 | NUT, SHIFT STUD | 1 | 11-20586 | |||||
| 13 | 12-39143 | WASHER, SHIFT STUD | 1 | ||||||
| 14 | 23-53811 | SPACER, SHIFT STUD | 2 | ||||||
| 15 | 16-63335 | STUD, SHIFT | 1 | This Part is No Longer Available | |||||
| 16 | 12-69056 | WASHER, SHIFT STUD | 2 | 12-21631 | |||||
| 17 | 23-31866 | SPACER, SHIFT STUD | 1 | ||||||
| 18 | 11-8267089 | NUT, SHIFT STUD | 1 | 11-20361 |
