575 GM 540 V-8 1986-1992 - Serial 0A677429 Thru 0D763716 - Crankshaft, Pistons And Connecting Rods (460)

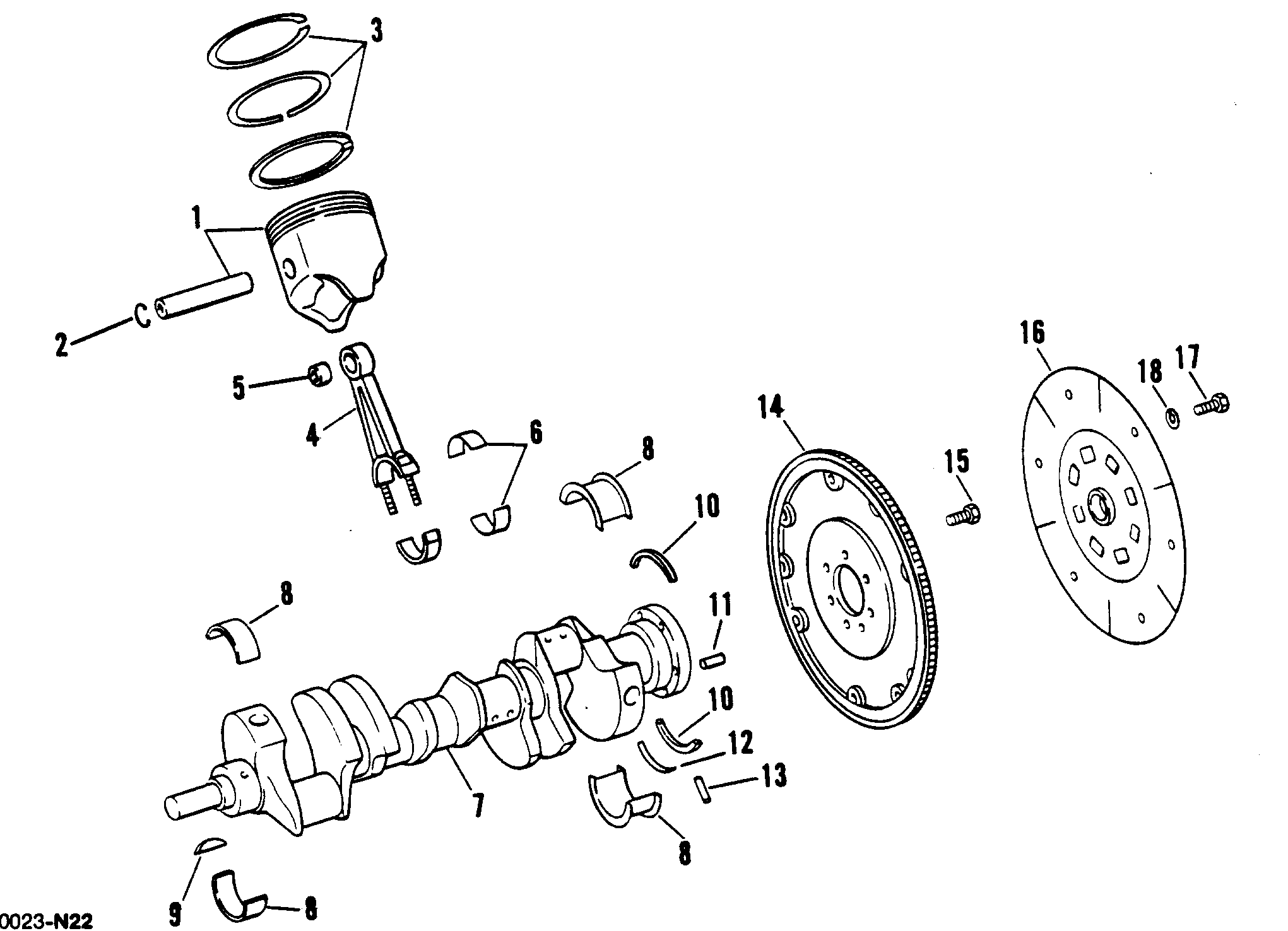

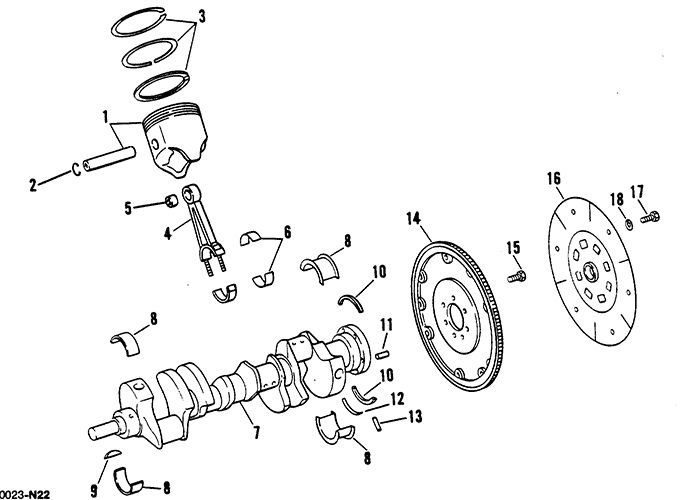

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (55 Amp) - Motorola #8MR2039K
- Alternator (Motorola 8EM2003KA)
- Audio Warning System
- Crankshaft, Pistons And Connecting Rods (460)
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Drive Shaft And Tailstock (Drive Line)
- Exhaust Manifold
- Flywheel Housing
- Fuel Pump, Carburetor And Linkage
- Intake Manifold And Front Cover
- Miscellaneous Parts-Accessories
- Mount Plates (Single, Side By Side Engines)
- Mount Plates (Staggered Engines)
- Oil Cooler (Transmission)
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components (M0031-022)
- Power Steering Components (M0036-022)
- Reservoir Bottle
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Motor
- Thermostat Housing And Water Hoses
- Transmission (Drive Line)
- Transmission (Plug-In)
- Wiring Harness, Electrical And Ignition
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 17802A1 | PISTON & PIN (STANDARD) | 8 | This Part is No Longer Available FLAT DOME | |||||
| 1 | 17803A1 | PISTON & PIN (.030 O.S.) | AR | This Part is No Longer Available FLAT DOME 4 | |||||
| 1 | 789-813058T1 | PISTON & PIN (STANDARD) | 8 | 789-813058A1 | RECESSED DOME | ||||
| 1 | 789-813059A1 | PISTON & PIN (.030 O.S.) | AR | RECESSED DOME 4 | |||||
| 2 | 17799 | SPIRO LOX, PISTON | 32 | This Part is No Longer Available | |||||
| 3 | 39-42733 | PISTON RING SET (STANDARD) | 1 | ||||||
| 3 | 39-4273335 | PISTON RING SET (.030 O.S.) | 1 | 39-4273330 | |||||
| 4 | 600-8M0027746 | CONNECTING ROD | 8 | 622-7929 | This Part is No Longer Available | ||||
| 5 | 42839 | BUSHING, CONNECTING ROD | 8 | ||||||
| 6 | 23-841447A1 | BEARING, CONNECTING ROD (STANDARD) | 8 | 23-61170 | This Part is No Longer Available | ||||
| 6 | 23-8M0030982 | BEARING, CONNECTING (.010 U.S.) | 8 | 23-6117010 | |||||
| 7 | 12492T | CRANKSHAFT | 1 | 12492 | This Part is No Longer Available | ||||
| 8 | 8M0051198 | BEARING SET, CRANKSHAFT (STANDARD) | 1 | 23-61171 | |||||
| 8 | 23-8M0053549 | BEARING SET, CRANKSHAFT (.010 U.S.) | 1 | 23-6117110 | |||||
| 9 | 28-34466 | KEY, CRANKSHAFT | 3 | ||||||
| 10 | 26-14756 | OIL SEAL, REAR - CRANKSHAFT BEARING CAP | 1 | 2 | |||||
| 11 | 17-43504 | DOWEL PIN, CRANKSHAFT | 1 | 2 | |||||
| 12 | 15-98184 | SHIM, REAR OIL SEAL | AR | This Part is No Longer Available 4 | |||||
| 13 | 17-843378 | PIN, DOWEL-REAR CRANKSHAFT BEARING CAP | 1 | 17-35312 | (1/4" DIA.) | ||||
| 14 | 230-81002 | FLYWHEEL | 1 | ||||||
| 15 | 10-845757 | SCREW, FLYWHEEL TO CRANKSHAFT | 6 | 10-49845 | |||||
| 16 | 8M0051206 | DRIVE PLATE | 1 | 74816 | |||||
| 17 | 10-35091 | SCREW, DRIVE PLATE | 6 | ||||||
| 18 | 13-35048 | LOCKWASHER, DRIVE PLATE SCREW | 6 |
