575 GM 540 V-8 1986-1992 - Serial 0A677429 Thru 0D763716 - Mount Plates (Staggered Engines)

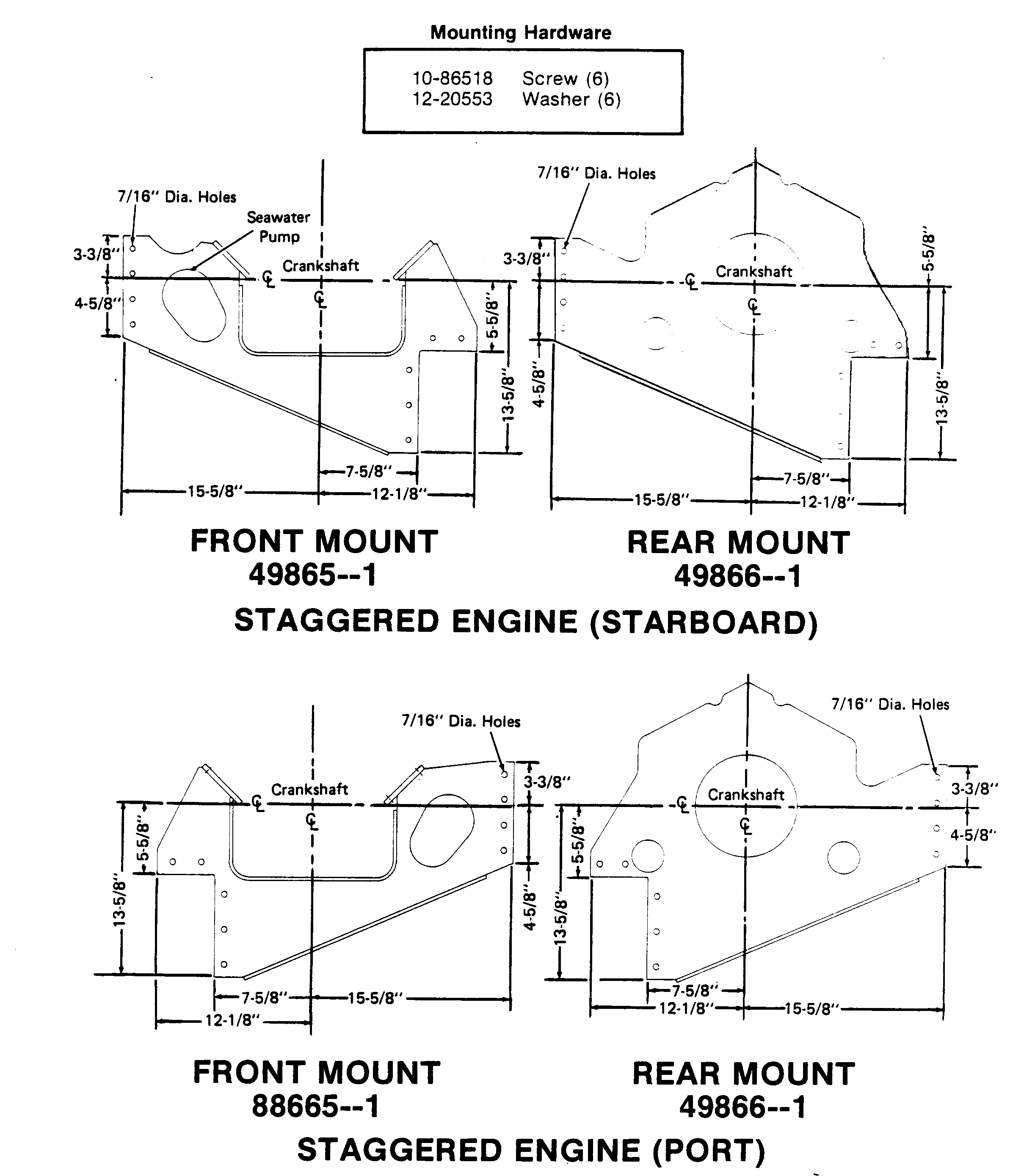

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (55 Amp) - Motorola #8MR2039K
- Alternator (Motorola 8EM2003KA)
- Audio Warning System
- Crankshaft, Pistons And Connecting Rods (460)
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Drive Shaft And Tailstock (Drive Line)
- Exhaust Manifold
- Flywheel Housing
- Fuel Pump, Carburetor And Linkage
- Intake Manifold And Front Cover
- Miscellaneous Parts-Accessories
- Mount Plates (Single, Side By Side Engines)
- Mount Plates (Staggered Engines)
- Oil Cooler (Transmission)
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components (M0031-022)
- Power Steering Components (M0036-022)
- Reservoir Bottle
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Motor
- Thermostat Housing And Water Hoses
- Transmission (Drive Line)
- Transmission (Plug-In)
- Wiring Harness, Electrical And Ignition
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 10-86518 | SCREW | 6 | ||||||
| - | 12-20553 | WASHER | 6 | ||||||
| - | 849310T | FRONT MOUNT | 498651 | STAGGERED ENGINE(STARBOARD) | |||||
| - | 847808T | REAR MOUNT | 498661 | STAGGERED ENGINE(STARBOARD) | |||||
| - | 849335T | FRONT MOUNT | 886651 | STAGGERED ENGINE(PORT) | |||||
| - | 847808T | REAR MOUNT | 498661 | STAGGERED ENGINE(PORT) |
