575 GM 540 V-8 1986-1992 - Serial 0A677429 Thru 0D763716 - Thermostat Housing And Water Hoses

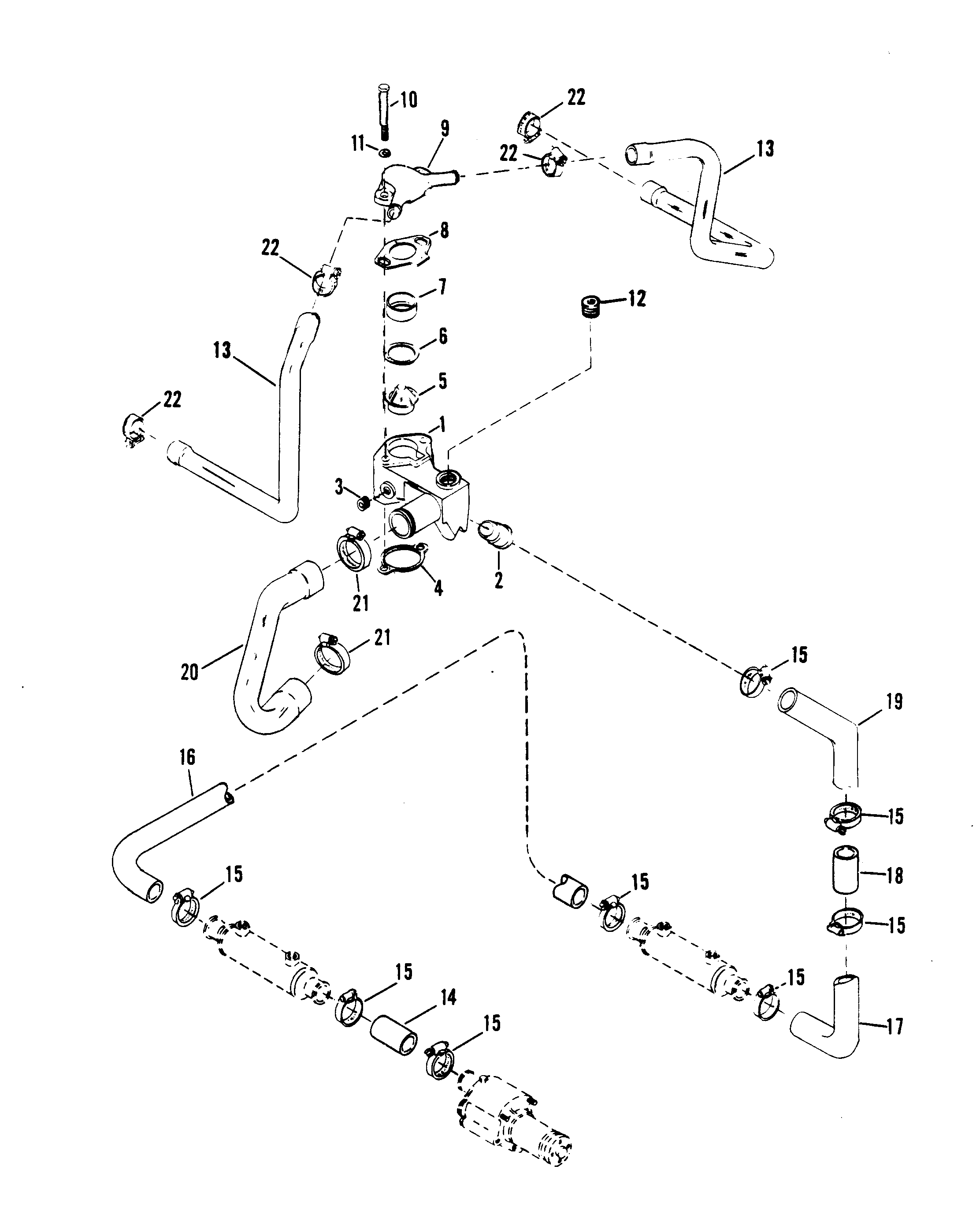

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (55 Amp) - Motorola #8MR2039K
- Alternator (Motorola 8EM2003KA)
- Audio Warning System
- Crankshaft, Pistons And Connecting Rods (460)
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Drive Shaft And Tailstock (Drive Line)
- Exhaust Manifold
- Flywheel Housing
- Fuel Pump, Carburetor And Linkage
- Intake Manifold And Front Cover
- Miscellaneous Parts-Accessories
- Mount Plates (Single, Side By Side Engines)
- Mount Plates (Staggered Engines)
- Oil Cooler (Transmission)
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components (M0031-022)
- Power Steering Components (M0036-022)
- Reservoir Bottle
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Motor
- Thermostat Housing And Water Hoses
- Transmission (Drive Line)
- Transmission (Plug-In)
- Wiring Harness, Electrical And Ignition
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 87290A4 | THERMOSTAT HOUSING ASSEMBLY | 1 | ||||||
| 2 | 23-47511 | SLEEVE, THERMOSTAT HOUSING | 1 | ||||||
| 3 | 22-32803 | PIPE PLUG | 2 | ||||||
| 4 | 27-530451 | GASKET, THERMOSTAT HOUSING | 1 | 2 | |||||
| 5 | 807252T1 | THERMOSTAT (143 DEGREES) | 1 | 59137 | |||||
| 6 | 27-47510 | GASKET, THERMOSTAT | 1 | 2 | |||||
| 7 | 23-47508T | SLEEVE, THERMOSTAT | 1 | 23-47508 | |||||
| 8 | 27-488181 | GASKET, THERMOSTAT COVER | 2 | 27-48818 | 2 | ||||
| 9 | 47441A1 | COVER, THERMOSTAT | 1 | ||||||
| 10 | 10-60410 | SCREW, THERMOSTAT HOUSING TO INTAKE | 2 | MANIFOLD (4-1/4") | |||||
| 11 | 12-20553 | WASHER, THERMOSTAT HOUSING SCREW | 2 | ||||||
| 12 | 22-41622 | PLUG, THERMOSTAT HOUSING | 1 | 22-33198A1 | |||||
| 13 | 32-9809070 | HOSE, THERMOSTAT COVER | 2 | This Part is No Longer Available | |||||
| 14 | 32-8M0062665 | HOSE, WATER PUMP TO OIL COOLER (7") | 1 | 32-5346170 | |||||
| 15 | 54-180766 | CLAMP, HOSE ATTACHING | 8 | ||||||
| 16 | 32-12817 | HOSE, OIL COOLER TO OIL COOLER | 1 | ||||||
| 17 | 32-848956 | HOSE, OIL COOLER TO TUBE | 1 | 32-12818 | |||||
| 18 | 22-13177 | TUBE, WATER HOSE | 1 | ||||||
| 19 | 32-896998 | HOSE, OIL COOLER TO THERMOSTAT HOUSING | 1 | 32-64346 | |||||
| 20 | 32-12807 | HOSE, THERMOSTAT HOUSING | 1 | This Part is No Longer Available (W/O POWER STEERING) | |||||
| 20 | 32-770061 | HOSE, THERMOSTAT HOUSING | 1 | This Part is No Longer Available (W POWER STEERING) | |||||
| 21 | 54-180769 | CLAMP, HOSE ATTACHING | 2 | This Part is No Longer Available | |||||
| 22 | 54-180763 | CLAMP, HOSE ATTACHING | 4 |
