575 GM 540 V-8 1986-1992 - Serial 0A677429 Thru 0D763716 - Power Steering Components (M0031-022)

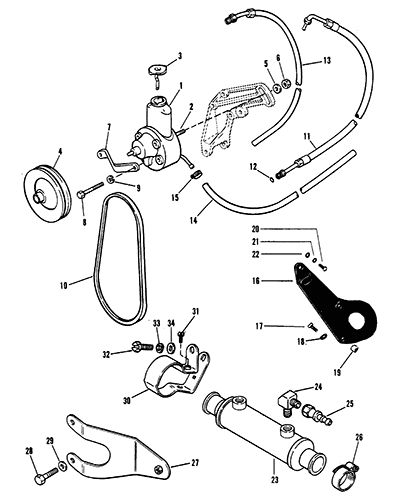

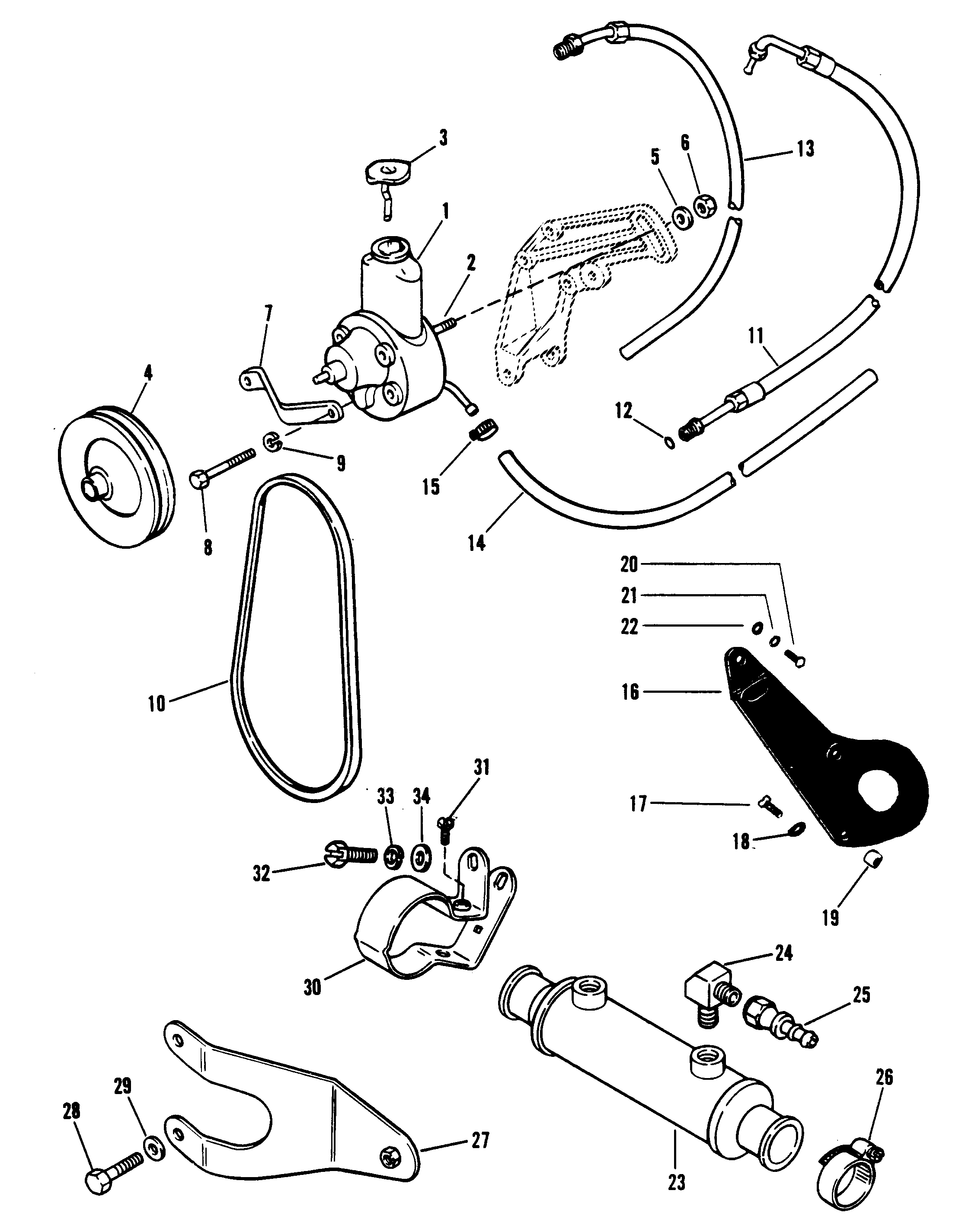

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (55 Amp) - Motorola #8MR2039K
- Alternator (Motorola 8EM2003KA)
- Audio Warning System
- Crankshaft, Pistons And Connecting Rods (460)
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Drive Shaft And Tailstock (Drive Line)
- Exhaust Manifold
- Flywheel Housing
- Fuel Pump, Carburetor And Linkage
- Intake Manifold And Front Cover
- Miscellaneous Parts-Accessories
- Mount Plates (Single, Side By Side Engines)
- Mount Plates (Staggered Engines)
- Oil Cooler (Transmission)
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components (M0031-022)
- Power Steering Components (M0036-022)
- Reservoir Bottle
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Motor
- Thermostat Housing And Water Hoses
- Transmission (Drive Line)
- Transmission (Plug-In)
- Wiring Harness, Electrical And Ignition
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 16792A39 | PUMP ASSEMBLY, POWER STEERING | 1 | 16792A1 | Pump DOES NOT come with pulley | ||||
| 2 | 16-41877 | STUD, POWER STEERING PUMP | 1 | ||||||
| 3 | 36-95805 | CAP, POWER STEERING PUMP | 1 | ||||||
| 4 | 14459 | PULLEY, POWER STEERING PUMP | 1 | This Part is No Longer Available | |||||
| 5 | 12-34567 | WASHER, PUMP STUD (BRACE SLOT) | 2 | ||||||
| 6 | 11-90517 | NUT, MOUNTING STUD | 2 | ||||||
| 7 | 14674 | BRACE, PUMP MOUNTING | 1 | This Part is No Longer Available | |||||
| 8 | 10-81516235 | SCREW, PUMP MOUNTING BRACE | 1 | 10-40062171 | This Part is No Longer Available | ||||
| 9 | 13-400248 | LOCKWASHER, BRACE SCREW | 1 | ||||||
| 10 | 57-94289 | V-BELT, POWER STEERING PUMP | 1 | This Part is No Longer Available | |||||
| 11 | 32-98494 | HOSE, PRESSURE (FITTINGS ON BOTH ENDS) | 1 | ||||||
| 12 | 25-89879 | "O" RING, PRESSURE HOSE END | 1 | ||||||
| 13 | 32-9884339 | HOSE, RETURN (FITTINGS ON ONE END) | 1 | ||||||
| 14 | 32-8M0062341 | HOSE, PUMP TO OIL COOLER | 1 | 32-5251914 | |||||
| 15 | 54-180761 | CLAMP, HOSE ATTACHING | 3 | ||||||
| 16 | 57436T1 | BRACKET, PUMP MOUNTING | 1 | 57436 | |||||
| 17 | 10-29198 | BOLT (5/16" X 7/8") | 1 | ||||||
| 18 | 12-26168 | FLATWASHER (5/16") | 2 | ||||||
| 19 | 23-90523 | SPACER | 1 | ||||||
| 20 | 10-37269 | BOLT, BRACKET TO BLOCK (7/16" X 2") | 2 | ||||||
| 20 | 10-358701 | BOLT (3/8" X 2") | 1 | 10-64900 | |||||
| 21 | 13-32993 | LOCKWASHER (7/16") | 2 | ||||||
| 21 | 13-35048 | LOCKWASHER (3/8") | 1 | ||||||
| 22 | 12-22248 | FLATWASHER (7/16") | 2 | ||||||
| 22 | 12-20553 | FLATWASHER (3/8") | 1 | ||||||
| 23 | 63832A1 | OIL COOLER | 1 | ||||||
| 24 | 22-47625 | ELBOW | 2 | This Part is No Longer Available | |||||
| 25 | 22-70682 | FITTING | 2 | ||||||
| 26 | 54-815504220 | CLAMP | 2 | 54-32780 | |||||
| 27 | 14824 | BRACKET | 1 | This Part is No Longer Available | |||||
| 28 | 10-68101 | SCREW | 2 | ||||||
| 29 | 12-46132 | WASHER | 2 | ||||||
| 30 | 65970T1 | BRACKET | 1 | 65970 | |||||
| 31 | 10-41408 | SCREW | 1 | ||||||
| 32 | 10-98261 | SCREW | 1 | ||||||
| 33 | 13-35048 | LOCKWASHER | 1 | ||||||
| 34 | 12-20553 | WASHER | 1 |
