575 GM 540 V-8 1986-1992 - Serial 0A677429 Thru 0D763716 - Cylinder Block And Camshaft

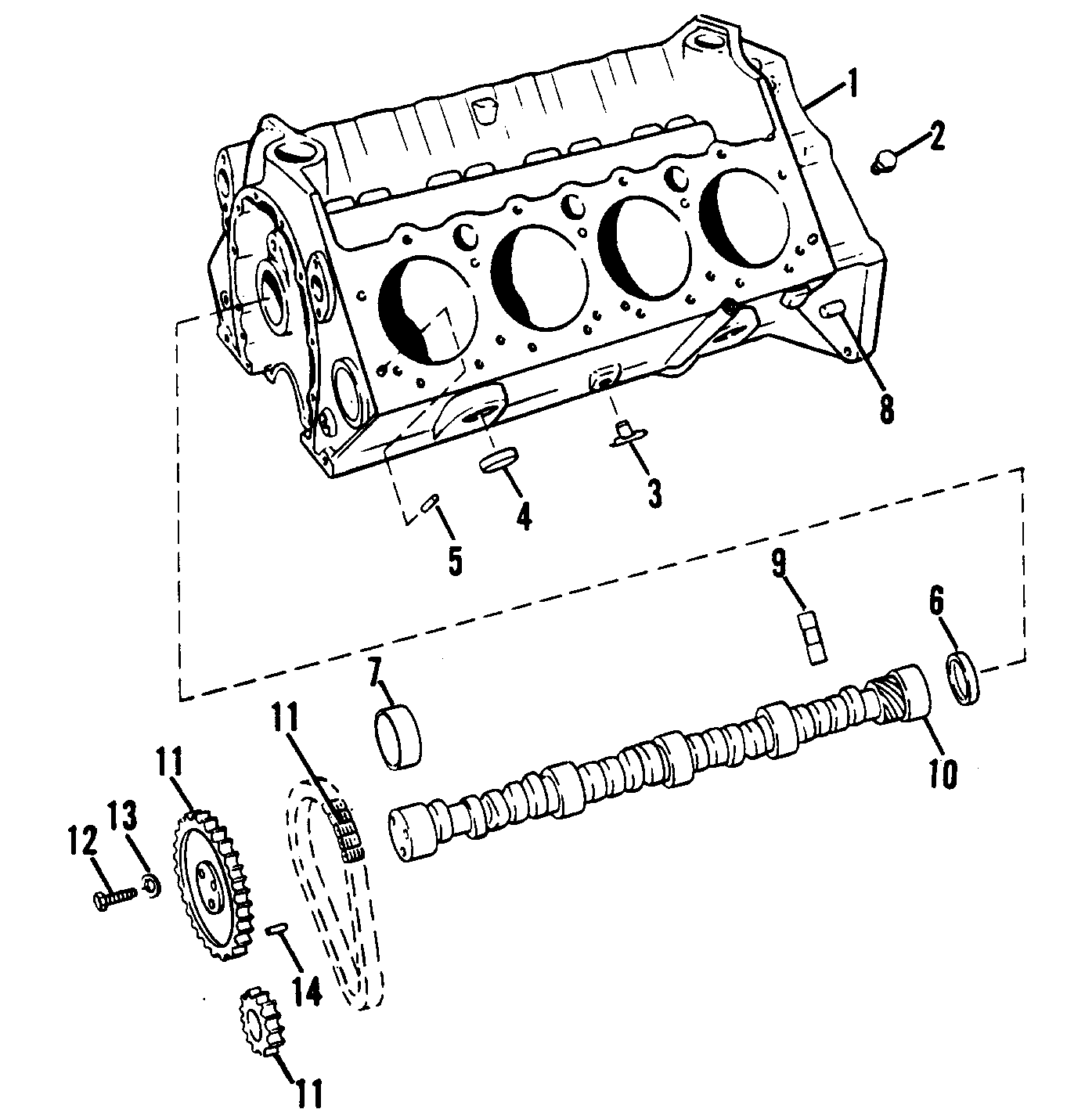

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (55 Amp) - Motorola #8MR2039K
- Alternator (Motorola 8EM2003KA)
- Audio Warning System
- Crankshaft, Pistons And Connecting Rods (460)
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Drive Shaft And Tailstock (Drive Line)
- Exhaust Manifold
- Flywheel Housing
- Fuel Pump, Carburetor And Linkage
- Intake Manifold And Front Cover
- Miscellaneous Parts-Accessories
- Mount Plates (Single, Side By Side Engines)
- Mount Plates (Staggered Engines)
- Oil Cooler (Transmission)
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components (M0031-022)
- Power Steering Components (M0036-022)
- Reservoir Bottle
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Motor
- Thermostat Housing And Water Hoses
- Transmission (Drive Line)
- Transmission (Plug-In)
- Wiring Harness, Electrical And Ignition
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 42112A17 | CYLINDER BLOCK ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 2 | 22-47540 | PLUG | 1 | ||||||
| 3 | 22-36382 | 700-21887 | PLUG | 3 | |||||
| 4 | 22-69300 | PLUG, EXPANSION - BLOCK | 8 | ||||||
| 5 | 17-52190 | PIN, DOWEL CYLINDER HEAD | 4 | ||||||
| 6 | 19-94140 | PLUG, EXPANSION - CAM | 1 | 19-52191 | |||||
| 7 | 23-85684 | BEARING, UNIT - CAM | 1 | 23-61272 | |||||
| 8 | 17-843379 | PIN, CYLINDER BLOCK | 2 | 17-72382 | |||||
| 9 | 12809 | LIFTER | 16 | This Part is No Longer Available | |||||
| 10 | 12475 | CAMSHAFT | 1 | This Part is No Longer Available | |||||
| 11 | 77531 | CHAIN AND TIMING GEAR KIT | 1 | ||||||
| 12 | 10-34505 | BOLT, CAMSHAFT SPROCKET (3/4") | 3 | ||||||
| 13 | 12-848136 | WASHER, CAMSHAFT SPROCKET SCREW | 3 | 12-39167 | |||||
| 14 | 17-843378 | PIN, DOWEL - CAMSHAFT SPROCKET | 1 | 17-35312 |
