575 GM 540 V-8 1986-1992 - Serial 0A677429 Thru 0D763716 - Transmission (Plug-In)

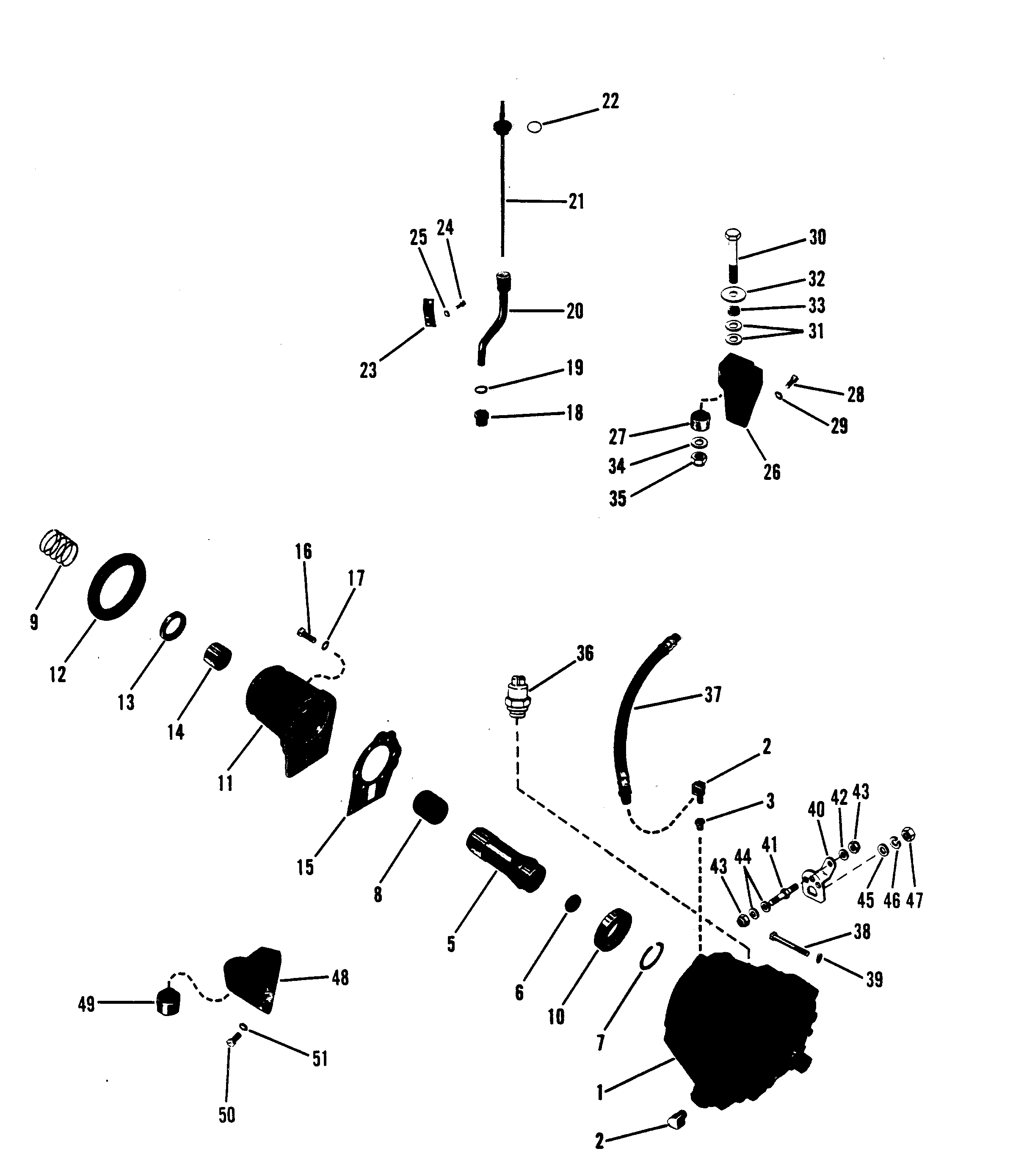

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (55 Amp) - Motorola #8MR2039K
- Alternator (Motorola 8EM2003KA)
- Audio Warning System
- Crankshaft, Pistons And Connecting Rods (460)
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Drive Shaft And Tailstock (Drive Line)
- Exhaust Manifold
- Flywheel Housing
- Fuel Pump, Carburetor And Linkage
- Intake Manifold And Front Cover
- Miscellaneous Parts-Accessories
- Mount Plates (Single, Side By Side Engines)
- Mount Plates (Staggered Engines)
- Oil Cooler (Transmission)
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components (M0031-022)
- Power Steering Components (M0036-022)
- Reservoir Bottle
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Motor
- Thermostat Housing And Water Hoses
- Transmission (Drive Line)
- Transmission (Plug-In)
- Wiring Harness, Electrical And Ignition
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 14746A1 | TRANSMISSION ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 2 | 22-47629 | ELBOW, TRANSMISSION TO OIL HOSE | 2 | ||||||
| 3 | 22-88517 | BUSHING, REDUCING - TRANSMISSION ELBOW | 1 | ||||||
| 5 | 47339A4 | ENGINE COUPLING ASSEMBLY, TRANSMISSION | 1 | No longer made, limited availability | |||||
| 6 | 19-47463 | PLUG, EXPANSION - ENGINE COUPLING | 1 | ||||||
| 7 | 53-47469 | RING, SNAP - BALL BEARING TO ENGINE COUPLING | 1 | ||||||
| 8 | 23-47471T | BEARING, ENGINE COUPLING | 1 | 23-47471 | |||||
| 9 | 24-47755 | SPRING, GUIDE - ENGINE COUPLING | 1 | ||||||
| 10 | 30-47470 | BALL BEARING, ENGINE COUPLING | 1 | TO TRANSMISSION | |||||
| 11 | 47333A1 | HOUSING ASSEMBLY, BEARING SUPPORT | 1 | This Part is No Longer Available | |||||
| 12 | 25-47756 | "O" RING, BEARING SUPPORT HOUSING | 1 | ||||||
| 13 | 26-47465 | OIL SEAL, BEARING SUPPORT HOUSING | 1 | ||||||
| 14 | 31-47468T | ROLLER BEARING | 1 | 31-47468 | This Part is No Longer Available BEARING SUPPORT HOUSING | ||||
| 15 | 27-47903 | GASKET, BEARING SUPPORT HOUSING | 1 | ||||||
| 16 | 10-47462 | SCREW, BEARING SUPPORT HOUSING TO | 8 | TRANSMISSION (1-1/4") | |||||
| 17 | 13-32993 | LOCKWASHER, BEARING SUPPORT HOUSING SCREW | 8 | ||||||
| 18 | 48461 | ADAPTOR, OIL LEVEL GUAGE TUBE | 1 | This Part is No Longer Available TO TRANSMISSION | |||||
| 19 | 25-48462 | "O" RING, OIL LEVEL TUBE ADAPTOR | 1 | ||||||
| 20 | 48463 | TUBE, OIL LEVEL GAUGE | 1 | This Part is No Longer Available | |||||
| 21 | 48464 | GAUGE, OIL | 1 | This Part is No Longer Available | |||||
| 22 | 25-35276 | "O" RING, OIL LEVEL GAUGE | 1 | ||||||
| 23 | 48466 | BRACKET, MOUNTING - OIL LEVEL GAUGE TUBE | 1 | This Part is No Longer Available | |||||
| 24 | 10-32417 | SCREW, MOUNTING BRACKET TO TRANSMISSION MOUNT BRACKET | 2 | ||||||
| 25 | 13-26992 | LOCKWASHER, MOUNTING BRACKET SCREW | 2 | ||||||
| 26 | 47340A1 | BRACKET ASSEMBLY, TRANSMISSION MOUNT | 1 | (PORT) | |||||
| 27 | 35852 | MOUNT, TRANSMISSION MOUNT BRACKET | 1 | ||||||
| 28 | 10-47462 | SCREW, MOUNT BRACKET TO TRANSMISSION | 2 | (1-1/4") | |||||
| 29 | 13-32993 | LOCKWASHER, MOUNT BRACKET SCREW | 2 | ||||||
| 30 | 10-47467 | SCREW, TAILSTOCK TO INNER TRANSOM PLATE | 2 | (5-1/2") | |||||
| 31 | 12-47466 | WASHER, TAILSTOCK SCREWS (NEPORENE) | 4 | ||||||
| 32 | 12-47475 | WASHER, TAILSTOCK SCREWS | 2 | ||||||
| 33 | 13-34846 | LOCKWASHER, TAILSTOCK SCREWS | 2 | ||||||
| 34 | 12-33171 | WASHER, TAILSTOCK SCREWS | 2 | ||||||
| 35 | 11-22339 | NUT, TAILSTOCK SCREWS | 2 | ||||||
| 36 | 87-88031 | SWITCH, TEMPERATURE | 1 | ||||||
| 37 | 32-475166 | HOSE, TRANSMISSION TO OIL COOLER (30") | 2 | ||||||
| 38 | 10-60179 | SCREW, TRANSMISSION TO ENGINE (3-1/2") | 6 | ||||||
| 39 | 13-32993 | LOCKWASHER, TRANSMISSION SCREW | 6 | ||||||
| 40 | 12128 | LEVER, SHIFT - TRANSMISSION | 1 | ||||||
| 41 | 16-63335 | STUD, SHIFT LEVER | 1 | This Part is No Longer Available | |||||
| 42 | 12-39143 | WASHER, SHIFT LEVER STUD | 1 | ||||||
| 43 | 11-8267089 | NUT, SHIFT LEVER STUD | 2 | 11-20361 | |||||
| 44 | 12-29245 | WASHER, SHIFT LEVER STUD | 2 | ||||||
| 45 | 12-20722 | WASHER, TRANSMISSION LEVER STUD | 1 | This Part is No Longer Available | |||||
| 46 | 13-26993 | LOCKWASHER, TRANSMISSION LEVER STUD | 1 | ||||||
| 47 | 11-22053 | NUT, TRANSMISSION LEVER STUD | 1 | ||||||
| 48 | 47334A2 | BRACKET ASSEMBLY, TRANSMISSION MOUNT | 1 | This Part is No Longer Available (STARBOARD) | |||||
| 49 | 35852 | MOUNT, TRANSMISSION MOUNT BRACKET | 1 | ||||||
| 50 | 10-47462 | SCREW, MOUNT BRACKET TO TRANSMISSION | 2 | (1-1/4") | |||||
| 51 | 13-32993 | LOCKWASHER, MOUNT BRACKET SCREW | 2 |
