575 GM 540 V-8 1986-1992 - Serial 0A677429 Thru 0D763716 - Distributor And Ignition Components

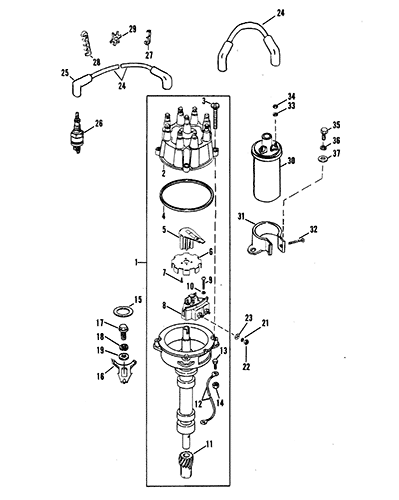

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (55 Amp) - Motorola #8MR2039K
- Alternator (Motorola 8EM2003KA)
- Audio Warning System
- Crankshaft, Pistons And Connecting Rods (460)
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Drive Shaft And Tailstock (Drive Line)
- Exhaust Manifold
- Flywheel Housing
- Fuel Pump, Carburetor And Linkage
- Intake Manifold And Front Cover
- Miscellaneous Parts-Accessories
- Mount Plates (Single, Side By Side Engines)
- Mount Plates (Staggered Engines)
- Oil Cooler (Transmission)
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components (M0031-022)
- Power Steering Components (M0036-022)
- Reservoir Bottle
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Motor
- Thermostat Housing And Water Hoses
- Transmission (Drive Line)
- Transmission (Plug-In)
- Wiring Harness, Electrical And Ignition
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 13497A3 | DISTRIBUTOR ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 2 | 805759T1 | CAP, DISTRIBUTOR | 1 | 16457A4 | |||||
| 3 | 10-90926 | SCREW, DISTRIBUTOR CAP | 4 | ||||||
| 4 | 27-805760 | GASKET, DISTRIBUTOR CAP | 1 | 27-98242 | 2 | ||||
| 5 | 13524T1 | ROTOR | 1 | 13524A3 | |||||
| 6 | 13524A5 | SENSOR WHEEL | 1 | 42862 | |||||
| 7 | 10-11252 | SCREW, SENSOR WHEEL | 3 | ||||||
| 8 | 87-892150Q02 | SENSOR ASSEMBLY | 1 | 87-91019A3 | |||||
| 9 | 10-66686 | SCREW, SENSOR | 1 | ||||||
| 10 | 13-26996 | LOCKWASHER, SENSOR SCREW | 3 | ||||||
| 11 | 43-818807 | GEAR, DRIVE | 1 | 43-8137761 | |||||
| 12 | 84-86322A17 | CABLE ASSEMBLY (BLACK) | 1 | This Part is No Longer Available | |||||
| 13 | 10-72202 | SCREW, CABLE | 1 | ||||||
| 14 | 11-68219 | NUT, CABLE SCREW | 1 | ||||||
| 15 | 27-344863 | GASKET, DISTRIBUTOR | 1 | 27-344861 | 2 | ||||
| 16 | 52185 | CLAMP, DISTRIBUTOR TO INTAKE MANIFOLD | 1 | ||||||
| 17 | 10-34353 | SCREW, DISTRIBUTOR CLAMP (1") | 1 | ||||||
| 18 | 13-35048 | LOCKWASHER, CLAMP SCREW | 1 | ||||||
| 19 | 12-20553 | WASHER, CLAMP SCREW | 1 | ||||||
| 21 | 13-26996 | LOCKWASHER, DISTRIBUTOR TERMINAL | 2 | ||||||
| 22 | 11-68219 | NUT, DISTRIBUTOR TERMINAL (10-32) | 2 | ||||||
| 23 | 12-30164 | WASHER, DISTRIBUTOR TERMINAL | 2 | ||||||
| 24 | 84-816608Q61 | SPARK PLUG WIRE KIT | 1 | 84-813720A2 | |||||
| 25 | 85-63709A1 | BOOT ASSEMBLY, SPARK PLUG | 8 | ||||||
| 26 | 33-8134214 | SPARK PLUG | 8 | 33-59660 | |||||
| 27 | 54676 | RETAINER, HIGH TENSION LEADS (2 WIRE) | 2 | ||||||
| 28 | 32783 | RETAINER, HIGH TENSION LEADS (3 WIRE) | 2 | ||||||
| 29 | 32784 | RETAINER, HIGH TENSION LEADS (4 WIRE) | 4 | ||||||
| 30 | 300-8M0079202 | COIL, IGNITION | 1 | 392-7803A4 | |||||
| 31 | 77294T | BRACKET, IGNITION COIL | 1 | 77294 | This Part is No Longer Available | ||||
| 32 | 10-41408 | SCREW, BRACKET (1-1/2") | 1 | ||||||
| 33 | 13-26996 | LOCKWASHER, IGNITION COIL TERMINAL | 2 | ||||||
| 34 | 11-68219 | NUT, IGNITION COIL TERMINAL (#10-32) | 2 | ||||||
| 35 | 10-86750 | SCREW, IGNITION COIL (3/4") | 2 | ||||||
| 36 | 13-26993 | LOCKWASHER, IGNITION COIL SCREW | 2 | ||||||
| 37 | 12-20084 | WASHER, IGNITION COIL SCREW | 2 |
