575 GM 540 V-8 1986-1992 - Serial 0A677429 Thru 0D763716 - Oil Pan And Oil Pump

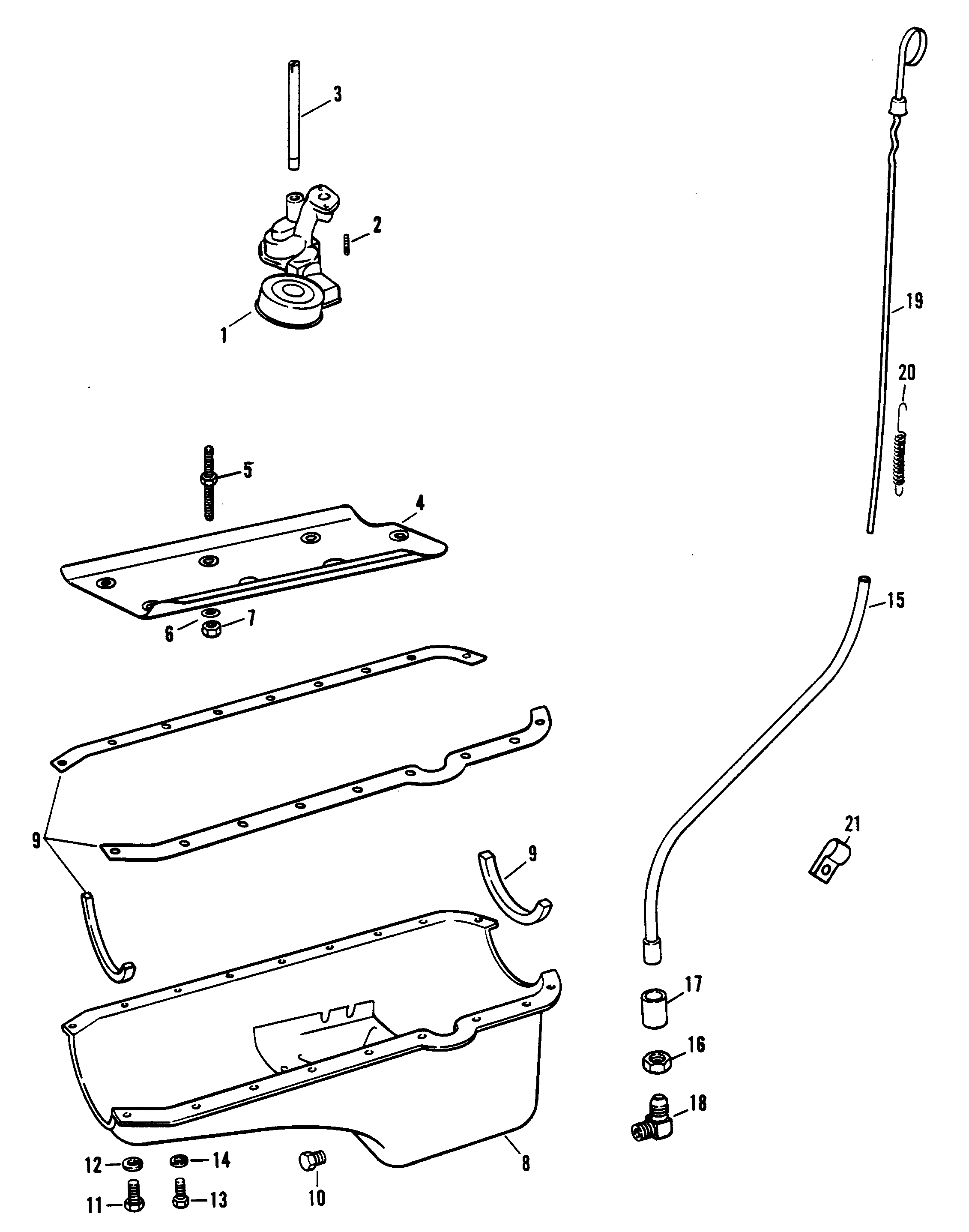

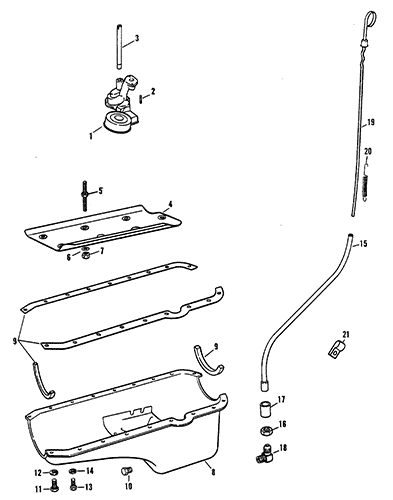

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (55 Amp) - Motorola #8MR2039K
- Alternator (Motorola 8EM2003KA)
- Audio Warning System
- Crankshaft, Pistons And Connecting Rods (460)
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Drive Shaft And Tailstock (Drive Line)
- Exhaust Manifold
- Flywheel Housing
- Fuel Pump, Carburetor And Linkage
- Intake Manifold And Front Cover
- Miscellaneous Parts-Accessories
- Mount Plates (Single, Side By Side Engines)
- Mount Plates (Staggered Engines)
- Oil Cooler (Transmission)
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components (M0031-022)
- Power Steering Components (M0036-022)
- Reservoir Bottle
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Motor
- Thermostat Housing And Water Hoses
- Transmission (Drive Line)
- Transmission (Plug-In)
- Wiring Harness, Electrical And Ignition
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 98337A2 | OIL PUMP | 1 | This Part is No Longer Available | |||||
| 2 | 16-845599 | STUD, OIL PUMP TO CYLINDER BLOCK | 1 | 16-49108 | |||||
| 3 | 848511 | SHAFT, OIL PUMP TO DISTRIBUTOR | 1 | 49149 | |||||
| 4 | 49198 | BAFFLE, OIL PAN | 1 | This Part is No Longer Available | |||||
| 5 | 16-49144 | STUD, BAFFLE | 4 | This Part is No Longer Available | |||||
| 6 | 12-25909 | WASHER, OIL PAN BAFFLE/OIL PUMP STUD | 5 | ||||||
| 7 | 11-37500 | NUT, OIL PAN BAFFLE/OIL PUMP STUD | 5 | ||||||
| 8 | 47552A5 | OIL PAN | 1 | This Part is No Longer Available | |||||
| 9 | 27-52550 | 676-9-61501 | 700-39490 | GASKET SET, OIL PAN | 1 | 2 | |||
| 10 | 22-32803 | PLUG, PIPE | 1 | ||||||
| 11 | 10-55714 | SCREW, OIL PAN (5/16-18 X 7/8") | 10 | ||||||
| 12 | 12-20546 | WASHER, OIL PAN SCREW | 10 | ||||||
| 13 | 10-55715 | SCREW, OIL PAN (1/4-20 X 7/8") | 2 | ||||||
| 14 | 12-20028 | WASHER, OIL PAN SCREW | 2 | ||||||
| 15 | 86890A2 | TUBE, OIL LEVEL GAUGE | 1 | ||||||
| 16 | 11-47626 | NUT, OIL LEVEL GUAGE TUBE | 1 | No longer made, limited availability | |||||
| 17 | 22-78039 | COUPLING, OIL LEVEL GUAGE TUBE | 1 | No longer made, limited availability | |||||
| 18 | 22-47625 | ELBOW, OIL LEVEL GUAGE TUBE TO OIL PAN | 1 | This Part is No Longer Available No longer made, limited availability | |||||
| 19 | 86194220 | GAUGE, OIL LEVEL (DIPSTICK) | 1 | 87353A2 | |||||
| 20 | 24-897454 | SPRING | 1 | 24-32817 | |||||
| 21 | 54-719822 | CLIP, OIL LEVEL TUBE | 1 | No longer made, limited availability |
