575 GM 540 V-8 1986-1992 - Serial 0A677429 Thru 0D763716 - Cylinder Head And Rocker Cover

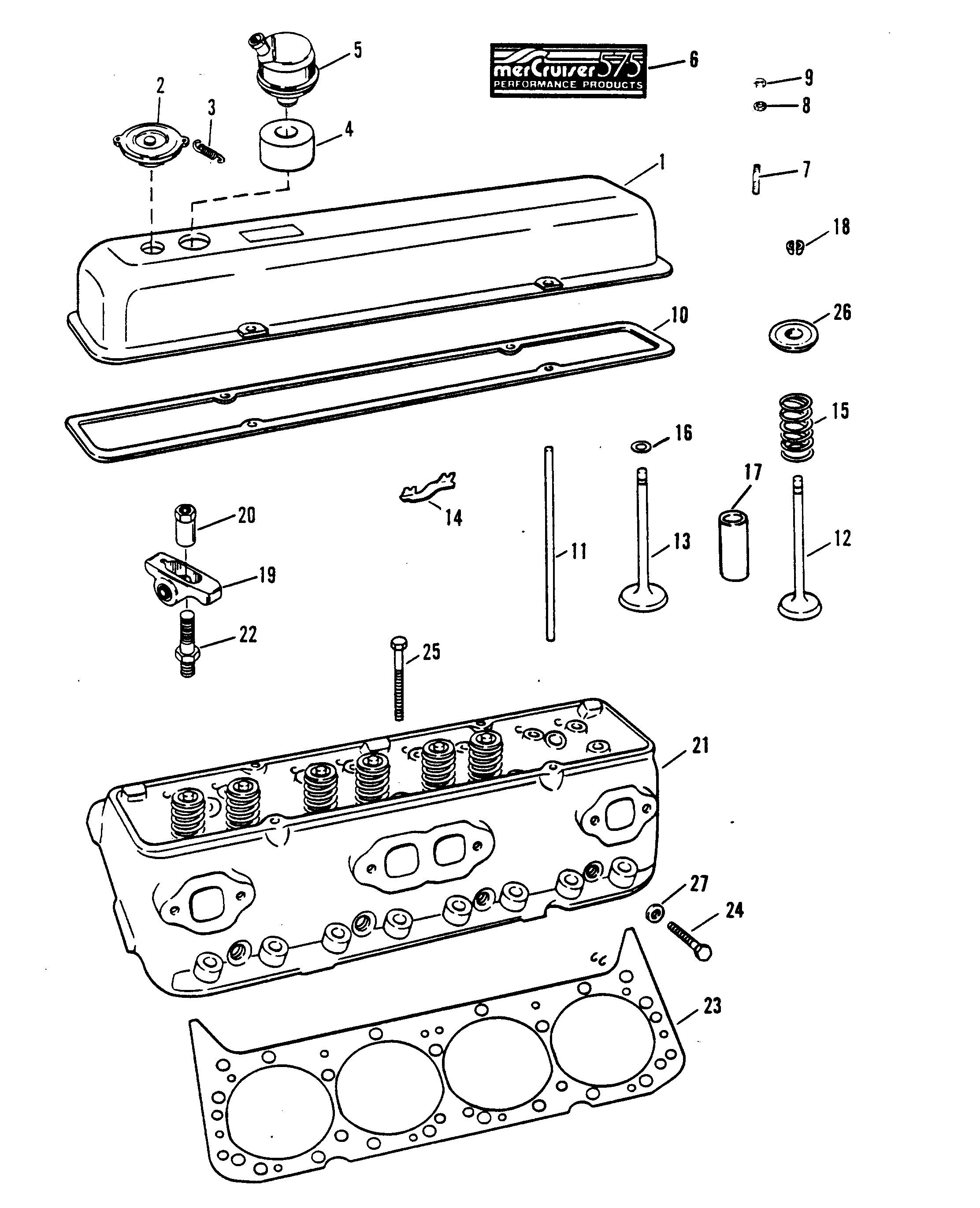

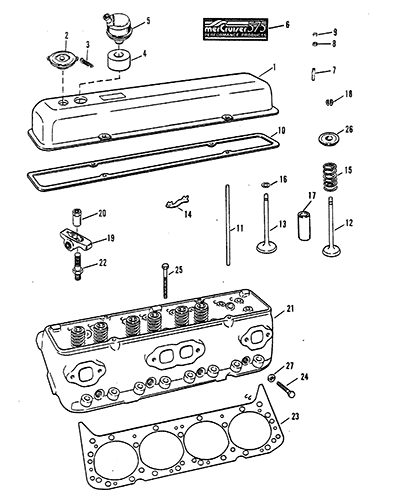

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (55 Amp) - Motorola #8MR2039K
- Alternator (Motorola 8EM2003KA)
- Audio Warning System
- Crankshaft, Pistons And Connecting Rods (460)
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Drive Shaft And Tailstock (Drive Line)
- Exhaust Manifold
- Flywheel Housing
- Fuel Pump, Carburetor And Linkage
- Intake Manifold And Front Cover
- Miscellaneous Parts-Accessories
- Mount Plates (Single, Side By Side Engines)
- Mount Plates (Staggered Engines)
- Oil Cooler (Transmission)
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components (M0031-022)
- Power Steering Components (M0036-022)
- Reservoir Bottle
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Motor
- Thermostat Housing And Water Hoses
- Transmission (Drive Line)
- Transmission (Plug-In)
- Wiring Harness, Electrical And Ignition
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 821948T1 | ROCKER COVER | 2 | 77679 | This Part is No Longer Available | ||||
| 2 | 17345 | CAP, OIL FILLER | 2 | 36-14903 | |||||
| 3 | 24-70086 | SPRING, FILLER CAP | 2 | No longer made, limited availability | |||||
| 4 | 25-49767 | GROMMET, ROCKER COVER | 2 | This Part is No Longer Available | |||||
| 5 | 41598T | BREATHER, ROCKER COVER | 2 | 14902 | This Part is No Longer Available | ||||
| 6 | 37-818991 | DECAL | 2 | 37-165925 | |||||
| 7 | 16-56766 | STUD, ROCKER COVER | 14 | ||||||
| 8 | 12-39143 | WASHER, ROCKER COVER STUD | 14 | ||||||
| 9 | 11-8267089 | NUT, ROCKER COVER STUD | 14 | 11-20361 | |||||
| 10 | 27-49121 | GASKET, ROCKER COVER | 2 | 27-91831 | 2 | ||||
| 11 | 848509 | ROD, VALVE PUSH (INLET) | 8 | 96023 | |||||
| 11 | 848508 | ROD, VALVE PUSH (EXHAUST) | 8 | 96024 | |||||
| 12 | 843080 | VALVE, EXHAUST (STANDARD) | 8 | 13024 | |||||
| 13 | 986781 | VALVE, INLET (STANDARD) | 8 | ||||||
| 14 | 13559 | GUIDE, PUSH ROD | 8 | This Part is No Longer Available | |||||
| 15 | 24-69288 | SPRING, VALVE | 16 | This Part is No Longer Available | |||||
| 16 | 15-845669 | SHIM, INLET VALVE SPRING | 8 | 15-54531 | |||||
| 17 | 23-79781 | BUSHING | 16 | This Part is No Longer Available | |||||
| 18 | 96028 | KEY, VALVE STEM (INCLUDES 32 KEYS) | 1 | ||||||
| 19 | 14729T1 | ARM, VALVE ROCKER | 16 | 147291 | |||||
| 20 | 11-14985 | NUT, VALVE ROCKER ARM | 16 | This Part is No Longer Available | |||||
| 21 | 938-816778T3 | CYLINDER HEAD ASSEMBLY | 2 | 938-9221 | |||||
| 22 | 95820 | STUD, VALVE ROCKER ARM | 16 | ||||||
| 23 | 27-42591 | GASKET, CYLINDER HEAD | 2 | 27-13217 | 2 | ||||
| 24 | 10-8M0000463 | BOLT, CYLINDER HEAD (2") | 8 | 10-49106 | |||||
| 25 | 10-8M0000482 | BOLT, CYLINDER HEAD (4-1/8") | 24 | 10-49105 | |||||
| 26 | 14368 | RETAINER, VALVE SPRING | 16 | This Part is No Longer Available | |||||
| 27 | 12-45176 | WASHER, CYLINDER HEAD BOLT | 8 |
