575 GM 540 V-8 1986-1992 - Serial 0A677429 Thru 0D763716 - Starter Motor

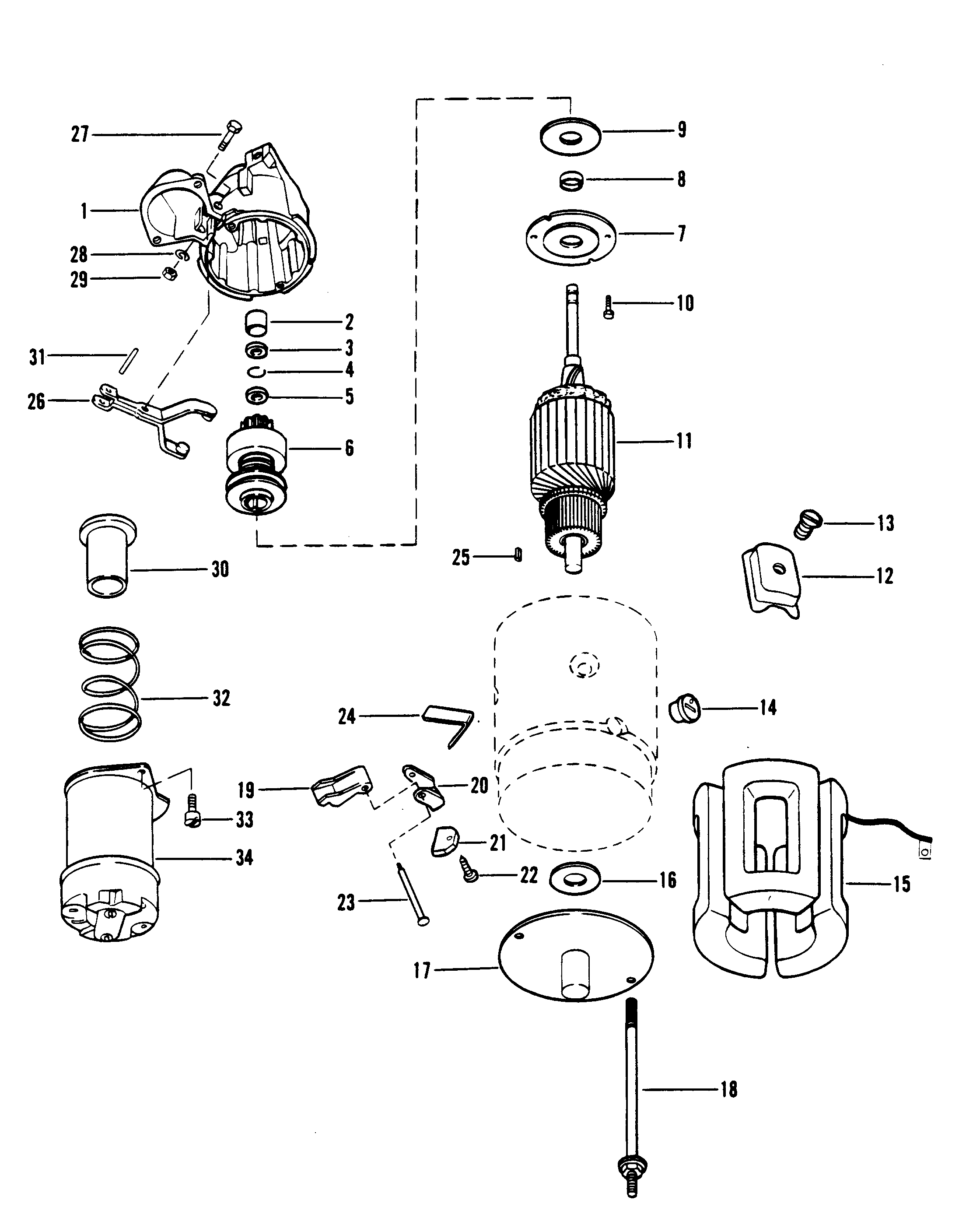

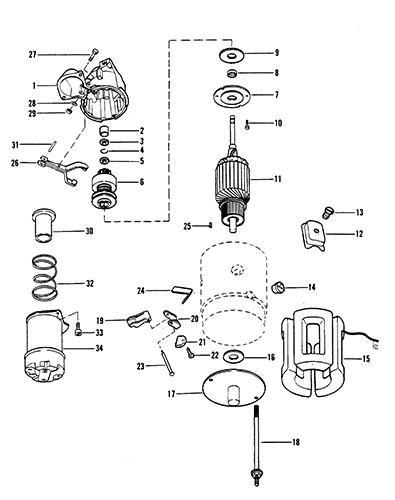

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (55 Amp) - Motorola #8MR2039K
- Alternator (Motorola 8EM2003KA)
- Audio Warning System
- Crankshaft, Pistons And Connecting Rods (460)
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Drive Shaft And Tailstock (Drive Line)
- Exhaust Manifold
- Flywheel Housing
- Fuel Pump, Carburetor And Linkage
- Intake Manifold And Front Cover
- Miscellaneous Parts-Accessories
- Mount Plates (Single, Side By Side Engines)
- Mount Plates (Staggered Engines)
- Oil Cooler (Transmission)
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components (M0031-022)
- Power Steering Components (M0036-022)
- Reservoir Bottle
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Motor
- Thermostat Housing And Water Hoses
- Transmission (Drive Line)
- Transmission (Plug-In)
- Wiring Harness, Electrical And Ignition
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 50-808011A05 | 676-9-15908 | STARTER MOTOR ASSEMBLY | 1 | 50-17251A3 | ||||
| 1 | 79206 | HOUSING, DRIVE END | 1 | This Part is No Longer Available | |||||
| 2 | 23-33369 | BUSHING, DRIVE END HOUSING | 1 | This Part is No Longer Available | |||||
| 3 | 23-809457 | COLLAR, THRUST | 1 | 33292 | This Part is No Longer Available | ||||
| 4 | 53-33290 | RING, RETAINING - PINION STOP COLLAR | 1 | ||||||
| 5 | 33291 | COLLAR, PINION STOP | 1 | ||||||
| 6 | 68608 | DRIVE ASSEMBLY, CLUTCH | 1 | This Part is No Longer Available | |||||
| 7 | 79396 | PLATE, BEARING | 1 | This Part is No Longer Available | |||||
| 8 | 23-71694 | BUSHING, BEARING PLATE | 1 | This Part is No Longer Available | |||||
| 9 | 12-68614 | WASHER, BEARING PLATE | 1 | This Part is No Longer Available | |||||
| 10 | 10-79209 | SCREW, BEARING PLATE | 2 | This Part is No Longer Available | |||||
| 11 | 68606 | ARMATURE | 1 | This Part is No Longer Available | |||||
| 12 | NSS | NOT SOLD SEPARATE, SHOE, POLE - FIELD COIL | 4 | This part is not sold separate (DELCO REMY #810601) 1 | |||||
| 13 | NSS | NOT SOLD SEPARATE, SCREW, POLE SHOE TO FIELD COIL | 4 | This part is not sold separate (DELCO REMY #1968396) 1 | |||||
| 14 | NSS | NOT SOLD SEPARATE, GROMMET, FIELD COIL | 1 | This part is not sold separate (DELCO REMY #1846097) 1 | |||||
| 15 | NSS | NOT SOLD SEPARATE, FIELD COIL ASSEMBLY | 1 | This part is not sold separate (DELCO REMY #1970467) 1 | |||||
| 16 | NSS | NOT SOLD SEPARATE, WASHER, LEATHER | 1 | This part is not sold separate (DELCO REMY #1985617) 1 | |||||
| 17 | 79211 | FRAME, COMMUTATOR END - LOWER | 1 | This Part is No Longer Available | |||||
| 18 | NSS | NOT SOLD SEPARATE, BOLT, THRU | 2 | This part is not sold separate (DELCO REMY #1939970) 1 | |||||
| 19 | 33284 | HOLDER, INSULTATED - FIELD FRAME BRUSH | 2 | This Part is No Longer Available | |||||
| 20 | 33283 | HOLDER, FIELD FRAME BRUSH GROUND | 2 | This Part is No Longer Available | |||||
| 21 | 33270 | BRUSH, FIELD FRAME | 4 | ||||||
| 22 | NSS | NOT SOLD SEPARATE, SCREW, BRUSH LEAD | 2 | This part is not sold separate (DELCO REMY #1967747) 1 | |||||
| 22 | NSS | NOT SOLD SEPARATE, SCREW, BRUSH LEAD | 2 | This part is not sold separate (DELCO REMY #443527) 1 | |||||
| 23 | 33294 | SUPPORT PACKAGE | 2 | This Part is No Longer Available GROUND AND INSULATED HOLDERS | |||||
| 24 | 24-33285 | SPRING, FIELD FRAME BRUSH | 4 | This Part is No Longer Available | |||||
| 25 | NSS | NOT SOLD SEPARATE, PIN, DOWEL - FIELD FRAME | 1 | This part is not sold separate (DELCO REMY #1985696) 1 | |||||
| 26 | 33297 | LEVER, SHIFT | 1 | This Part is No Longer Available | |||||
| 27 | NSS | NOT SOLD SEPARATE, STUD, SHIFT LEVER | 1 | This part is not sold separate (DELCO REMY #1814529) 1 | |||||
| 28 | 12-68615 | WASHER, SHIFT LEVER STUD | 1 | This Part is No Longer Available | |||||
| 29 | 11-26484 | NUT, SHIFT LEVER STUD | 1 | ||||||
| 30 | 33317 | PLUNGER, SHIFT LEVER | 1 | This Part is No Longer Available | |||||
| 31 | 17-79207 | PIN, PLUNGER TO SHIFT LEVER | 1 | This Part is No Longer Available | |||||
| 32 | 24-46889 | SPRING, PLUNGER RETURN | 1 | This Part is No Longer Available | |||||
| 33 | NSS | NOT SOLD SEPARATE, SCREW, SOLENOID SWITCH | 2 | This part is not sold separate (DELCO REMY #132255) 1 | |||||
| 34 | 13037 | SOLENOID SWITCH (4-1/4" LONG) | 1 | ||||||
| 34 | 89-18080 | 676-9-15102 | 700-72460 | SOLENOID SWITCH (3-5/8" LONG) | 1 | This Part is No Longer Available |
