575 GM 540 V-8 1986-1992 - Serial 0A677429 Thru 0D763716 - Sea Water Pump Assembly

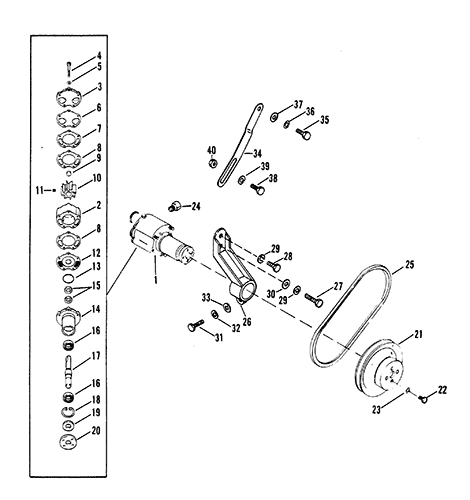

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (55 Amp) - Motorola #8MR2039K
- Alternator (Motorola 8EM2003KA)
- Audio Warning System
- Crankshaft, Pistons And Connecting Rods (460)
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Drive Shaft And Tailstock (Drive Line)
- Exhaust Manifold
- Flywheel Housing
- Fuel Pump, Carburetor And Linkage
- Intake Manifold And Front Cover
- Miscellaneous Parts-Accessories
- Mount Plates (Single, Side By Side Engines)
- Mount Plates (Staggered Engines)
- Oil Cooler (Transmission)
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components (M0031-022)
- Power Steering Components (M0036-022)
- Reservoir Bottle
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Motor
- Thermostat Housing And Water Hoses
- Transmission (Drive Line)
- Transmission (Plug-In)
- Wiring Harness, Electrical And Ignition
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 46-72774A32 | WATER PUMP ASSEMBLY | 1 | ||||||
| 2 | 46-72774A40 | BODY, WATER PUMP | 1 | This Part is No Longer Available | |||||
| 3 | 87631A4 | COVER, WATER PUMP | 1 | 87631A1 | |||||
| 4 | 10-73275 | SCREW, WATER PUMP (2-7/8") | 5 | ||||||
| 5 | 12-20084 | WASHER, COVER SCREW | 5 | ||||||
| 6 | 27-8052151 | GASKET, COVER TO OUTER WEAR PLATE | 1 | 27-94915 | 2 | ||||
| 7 | 94916 | WEAR PLATE, OUTER | 1 | ||||||
| 8 | 27-94914 | GASKET, BODY TO WEAR PLATE | 2 | 2 | |||||
| 9 | 19-59504 | PLUG, IMPELLER | 1 | ||||||
| 10 | 47-59362T1 | 625-4011 | 676-9-45375 | 700-89740 | IMPELLER | 1 | 47-59362 | ||
| 11 | 8M0032837 | KEY, IMPELLER DRIVE | 1 | 28-56662 | |||||
| 12 | 94576 | WEAR PLATE, INNER | 1 | ||||||
| 13 | 25-94288 | QUAD RING, PUMP HOUSING | 1 | ||||||
| 14 | 46-94913A1 | PUMP HOUSING ASSEMBLY | 1 | ||||||
| 15 | 26-90562 | 676-9-76107 | 700-85080 | OIL SEAL, WATER PUMP SHAFT | 2 | 2 | |||
| 16 | 30-72961 | BALL BEARING, WATER PUMP SHAFT | 2 | ||||||
| 17 | 59501A1 | SHAFT, WATER PUMP | 1 | ||||||
| 18 | 53-23720 | SNAP RING, BALL BEARING RETAINING | 1 | ||||||
| 19 | 26-72785 | OIL SEAL, WATER PUMP SHAFT | 1 | ||||||
| 20 | 47530 | HUB, WATER PUMP PULLEY | 1 | ||||||
| 21 | 59762T | PULLEY, WATER PUMP | 1 | This Part is No Longer Available | |||||
| 22 | 10-47277 | SCREW, PULLEY (3/4") | 4 | ||||||
| 23 | 13-39107 | 700-21496 | LOCKWASHER, PULLEY SCREW | 4 | |||||
| 24 | 22-328022 | PLUG, PIPE (FOR WATER PUMP BODY) | 1 | 22-32802 | |||||
| 25 | 57-94290Q | BELT, WATER PUMP | 1 | 57-94290 | |||||
| 26 | 47489A2 | BRACKET ASSEMBLY, WATER PUMP | 1 | This Part is No Longer Available | |||||
| 27 | 10-47462 | SCREW, WATER PUMP BRACKET (1") | 1 | ||||||
| 28 | 10-48948 | SCREW, WATER PUMP BRACKET (7/8") | 1 | This Part is No Longer Available | |||||
| 29 | 13-32993 | LOCKWASHER, BRACKET SCREW | 2 | ||||||
| 30 | 12-27025 | WASHER, BRACKET SCREW | 1 | ||||||
| 31 | 10-34354 | SCREW, WATER PUMP BRACKET (1-1/2") | 1 | ||||||
| 32 | 13-35048 | LOCKWASHER, BRACKET SCREW | 1 | ||||||
| 33 | 12-29330 | WASHER, WATER PUMP SCREW (FOR SLOT) | 1 | ||||||
| 34 | 64177 | BRACE, WATER PUMP | 1 | This Part is No Longer Available | |||||
| 35 | 10-47462 | SCREW, BRACE TO ENGINE (1") | 1 | ||||||
| 36 | 13-32993 | LOCKWASHER, BRACE SCREW | 1 | ||||||
| 37 | 12-74758 | WASHER, BRACE SCREW | 1 | 12-30315 | |||||
| 38 | 10-35786 | SCREW, WATER PUMP BRACE (1") | 1 | ||||||
| 39 | 13-35048 | LOCKWASHER, BRACE SCREW | 1 | ||||||
| 40 | 11-46335 | NUT, BRACE SCREW | 1 | 11-24883 |
