575 GM 540 V-8 1986-1992 - Serial 0A677429 Thru 0D763716 - Transmission (Drive Line)

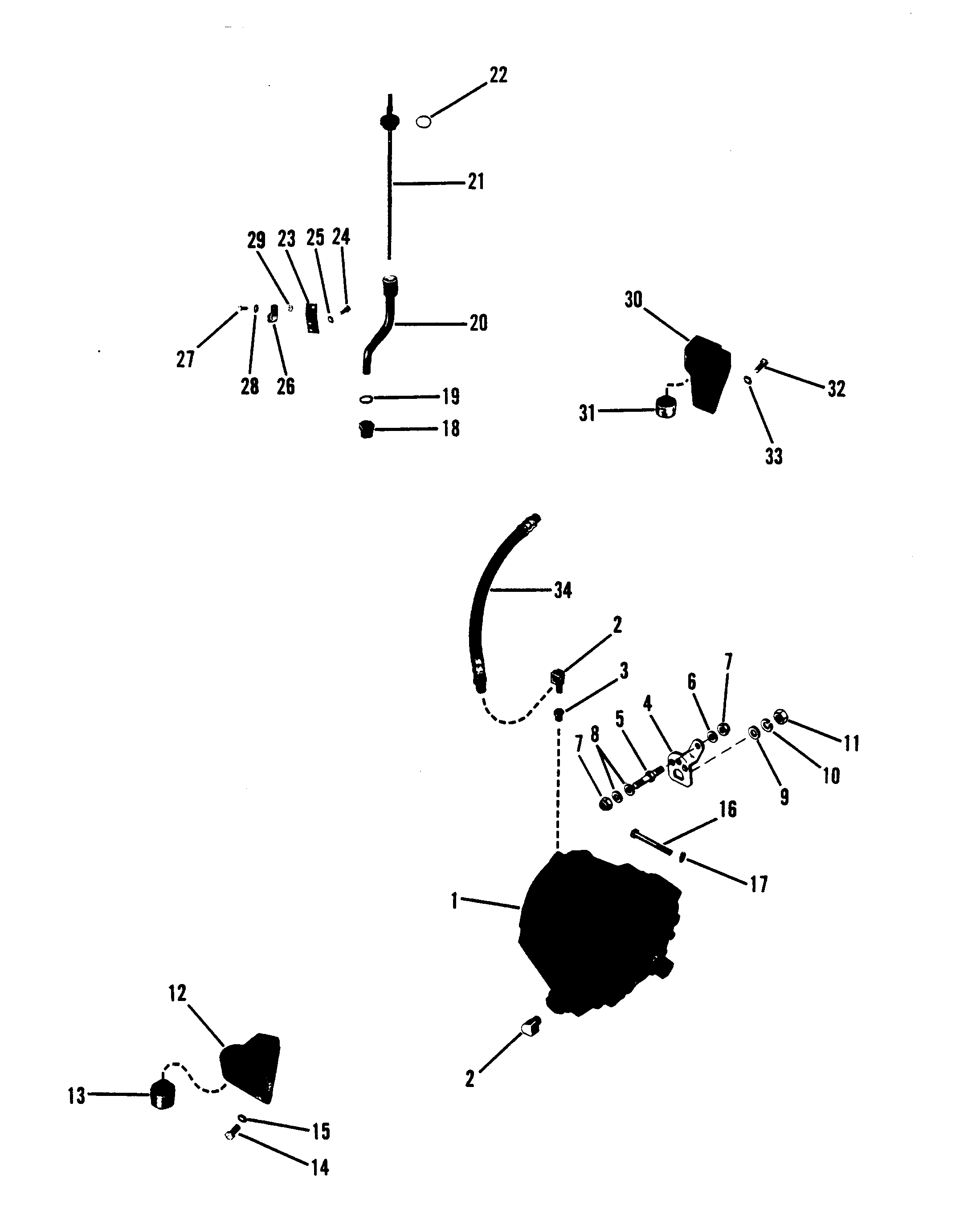

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (55 Amp) - Motorola #8MR2039K
- Alternator (Motorola 8EM2003KA)
- Audio Warning System
- Crankshaft, Pistons And Connecting Rods (460)
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Drive Shaft And Tailstock (Drive Line)
- Exhaust Manifold
- Flywheel Housing
- Fuel Pump, Carburetor And Linkage
- Intake Manifold And Front Cover
- Miscellaneous Parts-Accessories
- Mount Plates (Single, Side By Side Engines)
- Mount Plates (Staggered Engines)
- Oil Cooler (Transmission)
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components (M0031-022)
- Power Steering Components (M0036-022)
- Reservoir Bottle
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Motor
- Thermostat Housing And Water Hoses
- Transmission (Drive Line)
- Transmission (Plug-In)
- Wiring Harness, Electrical And Ignition
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 841918A07 | TRANSMISSION ASSEMBLY | 1 | 14750A1 | |||||
| 2 | 22-47629 | ELBOW, TRANSMISSION TO OIL HOSE | 2 | ||||||
| 3 | 22-88517 | BUSHING, REDUCING - TRANSMISSION ELBOW | 1 | ||||||
| 4 | 12128 | LEVER, SHIFT - TRANSMISSION | 1 | ||||||
| 5 | 16-63335 | STUD, SHIFT LEVER | 1 | This Part is No Longer Available | |||||
| 6 | 12-39143 | WASHER, SHIFT LEVER STUD | 1 | ||||||
| 7 | 11-8267089 | NUT, SHIFT LEVER STUD | 2 | 11-20361 | |||||
| 8 | 12-29245 | WASHER, SHIFT LEVER STUD | 2 | ||||||
| 9 | 12-20722 | WASHER, TRANSMISSION LEVER STUD | 1 | This Part is No Longer Available | |||||
| 10 | 13-26993 | LOCKWASHER, TRANSMISSION LEVER STUD | 1 | ||||||
| 11 | 11-22053 | NUT, TRAMSISSION LEVER STUD | 1 | ||||||
| 12 | 47334A2 | BRACKET ASSEMBLY, TRANSMISSION MOUNT | 1 | This Part is No Longer Available (STARBOARD) | |||||
| 13 | 35852 | MOUNT, TRANSMISSION MOUNT BRACKET | 1 | ||||||
| 14 | 10-47462 | SCREW, MOUNT BRACKET TO TRANMISSION (1-1/4") | 2 | ||||||
| 15 | 13-32993 | LOCKWASHER, MOUNT BRACKET SCREW | 2 | ||||||
| 16 | 10-60179 | SCREW, TRANSMISSION TO ENGINE (3-1/2") | 6 | ||||||
| 17 | 13-32993 | LOCKWASHER, TRANSMISSION SCREW | 6 | ||||||
| 18 | 48461 | ADAPTOR, OIL LEVEL GAUGE TUBE | 1 | TO TRANSMISSION This Part is No Longer Available | |||||
| 19 | 25-48462 | "O" RING, OIL LEVEL TUBE ADAPTOR | 1 | ||||||
| 20 | 48463 | TUBE, OIL LEVEL GAUGE | 1 | This Part is No Longer Available | |||||
| 21 | 48464 | GAUGE, OIL LEVEL | 1 | This Part is No Longer Available | |||||
| 22 | 25-35276 | "O" RING, OIL LEVEL GAUGE | 1 | ||||||
| 23 | 48466 | BRACKET, MOUNTING - OIL LEVEL GAUGE TUBE | 1 | This Part is No Longer Available | |||||
| 24 | 10-32417 | SCREW, MOUNTING BRACKET TO TRANSMISSION | 2 | MOUNT BRACKET (5/8") | |||||
| 25 | 13-26992 | LOCKWASHER, MOUNTING BRACKET SCREW | 2 | ||||||
| 26 | 54-859172 | CLAMP, OIL LEVEL GAUGE TUBE TO MOUNTING | 1 | 54-67015 | BRACKET | ||||
| 27 | 10-60300 | SCREW, OIL LEVEL GAUGE TUBE CLAMP | 1 | ||||||
| 28 | 12-29245 | WASHER, OIL LEVEL GAUGE TUBE CLAMP SCREW | 2 | ||||||
| 29 | 11-8267089 | NUT, OIL LEVEL GAUGE TUBE CLAMP SCREW | 1 | 11-20361 | |||||
| 30 | 47340A1 | BRACKET ASSEMBLY, TRANSMISSION MOUNT | 1 | (PORT) | |||||
| 31 | 35852 | MOUNT, TRANSMISSION MOUNT BRACKET | 1 | ||||||
| 32 | 10-47462 | SCREW, MOUNT BRACKET TO TRANSMISSION | 2 | (1-1/4") | |||||
| 33 | 13-32993 | LOCKWASHER, MOUNT BRACKET SCREW | 2 | ||||||
| 34 | 32-475166 | HOSE, TRANSMISSION TO OIL COOLER (30") | 2 |
