600 SC Bobtail 1998 - Serial 0L414734 Thru 0L601186 - Carburetor And Linkage

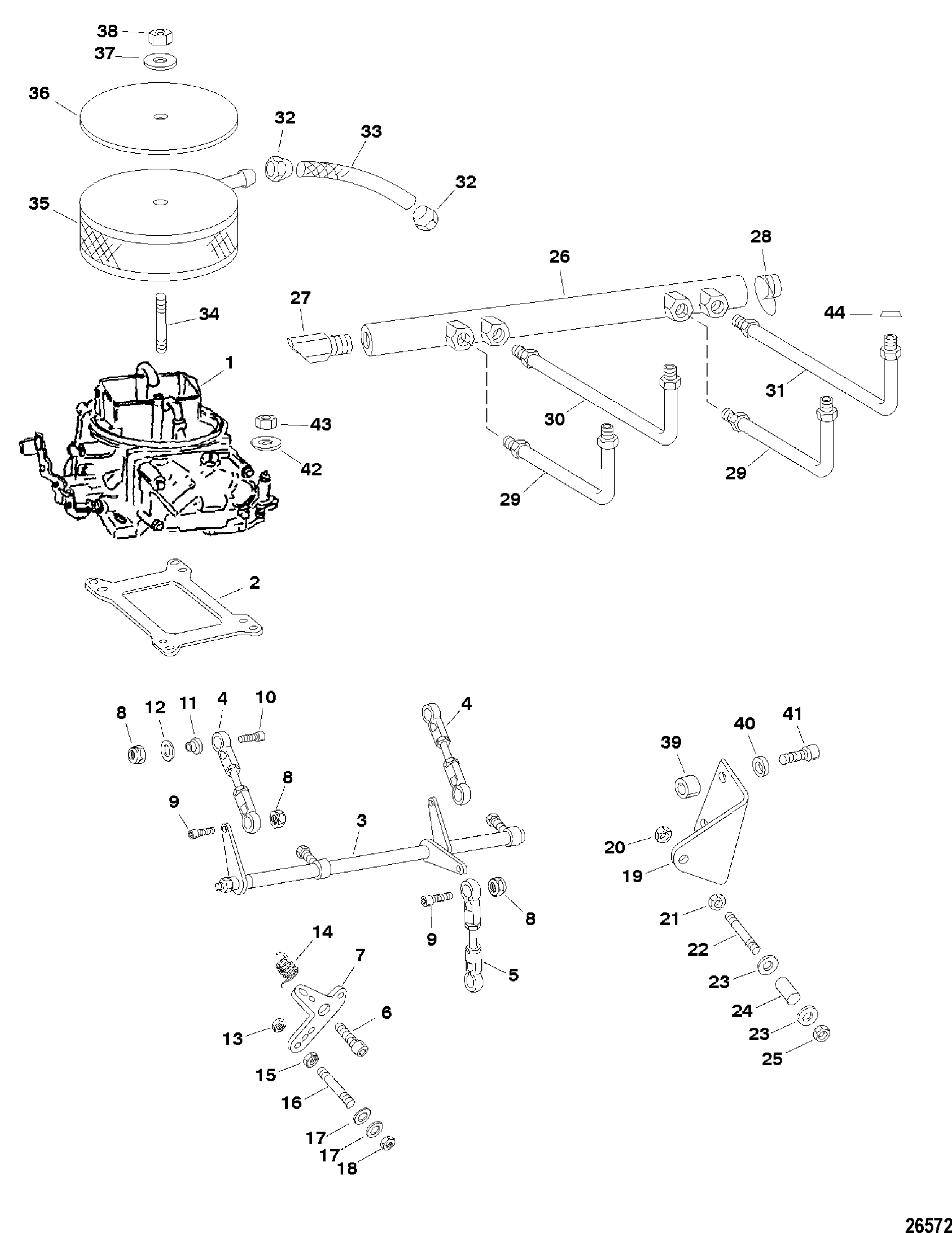

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft – Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Exhaust Header - Tailpipe Assembly
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mount Plates
- Oil Cooler And Oil Filter
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Assembly (50-8M8021116)
- Supercharger
- Thermostat Housing
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 3312-821030A15 | CARBURETOR, Blue | 1 | Rear | |||||
| 1 | 3312-821030T16 | CARBURETOR, Blue | 1 | 3312-821030A16 | Front | ||||
| 2 | 818892 | SPACER, Carburetor Base | 2 | 3 | |||||
| 3 | 849094A1 | LINKAGE ASSEMBLY, Throttle | 1 | 818974A1 | This Part is No Longer Available | ||||
| 4 | 849095A1 | LINK, Connecting | 2 | 818975 | |||||
| 5 | 849096A1 | LINK, Connecting | 1 | 818978 | This Part is No Longer Available | ||||
| 6 | 10-849117 | SCREW | 1 | 10-818980 | |||||
| 7 | 849093 | BELLCRANK, Lower | 1 | 818979 | This Part is No Longer Available | ||||
| 8 | 11-826709109 | NUT, (.250-28) | 6 | 11-35045 | |||||
| 9 | 10-821282 | SCREW (.250-28 x .750) | 4 | This Part is No Longer Available | |||||
| 10 | 10-92702 | SCREW, (.250-28 x .875) | 2 | ||||||
| 11 | 23-818894 | BUSHING, Carburetor Lever | 2 | ||||||
| 12 | 12-28426 | WASHER | 2 | ||||||
| 13 | 11-826709109 | NUT, (.250-28) | 1 | 11-35045 | |||||
| 14 | 24-821001 | SPRING, Throttle Return | 1 | ||||||
| 15 | 11-21825 | NUT, (.250-28) | 1 | ||||||
| 16 | 16-98851 | STUD (.250-28 x 1.500) | 1 | No longer made, limited availability | |||||
| 17 | 12-29245 | WASHER, (.281 x .500 x .060) | 2 | ||||||
| 18 | 11-8267098 | NUT, (.250-20) | 1 | 11-56374 | |||||
| 19 | 818995 | BRACKET, Throttle Cable | 1 | This Part is No Longer Available | |||||
| 20 | 11-826709109 | NUT, (.250-28) | 1 | 11-35045 | |||||
| 21 | 11-25168 | NUT, (.250-28) | 1 | This Part is No Longer Available - Thin Style | |||||
| 21 | 11-21825 | NUT, (.250-28) | 1 | Thick Style | |||||
| 22 | 16-728091 | STUD, (.250-20/.250-28 x 1.620) | 1 | 16-72809 | |||||
| 23 | 12-69056 | WASHER, (.255 x .625 x .0312) | 2 | 12-21631 | |||||
| 24 | 23-31866 | SPACER, (.26 x .31 x .64) | 1 | ||||||
| 25 | 11-8267098 | NUT, (.250-20) | 1 | 11-56374 | |||||
| 26 | 32-821120A1 | RAIL ASSEMBLY, Fuel | 1 | This Part is No Longer Available | |||||
| 27 | 22-817395 | FITTING, 45 Degree | 1 | ||||||
| 28 | 22-73379 | PLUG, (.250-18) | 1 | ||||||
| 29 | 32-821121 | LINE, Fuel - Carburetor To Rail - Short | 2 | ||||||
| 30 | 32-821123 | LINE, Fuel - Carburetor To Rail - Long | 1 | 32-821122 | This Part is No Longer Available - Front Carburetor | ||||
| 31 | 32-821123 | LINE, Fuel - Carburetor To Rail - Long | 1 | This Part is No Longer Available - Rear Carburetor | |||||
| 32 | 54-84763012 | COVER, Clamp End, Hose | 4 | This Part is No Longer Available | |||||
| 33 | 32-821284A8 | HOSE ASSEMBLY (16.00 Inches) | 2 | ||||||
| 34 | 16-30667 | STUD, (.250-20/.250-28 x 3.125), Flame Arrestor | 2 | ||||||
| 35 | 8486231 | ARRESTOR, Flame | 1 | 848623 | Front Carburetor | ||||
| 35 | 8485881 | ARRESTOR, Flame | 1 | 848588 | Rear Carburetor | ||||
| 36 | 37-848600 | DECAL | 1 | This Part is No Longer Available - Front Carburetor | |||||
| 36 | 37-848624 | DECAL | 1 | Rear Carburetor | |||||
| 37 | 12-86400 | WASHER | 2 | ||||||
| 38 | 11-35888 | 676-9-72001 | 700-21180 | NUT, (.250-28) | 2 | ||||
| 39 | 821018 | SPACER | 2 | This Part is No Longer Available | |||||
| 40 | 12-70132 | WASHER, (.323 x .563 x .063) Stainless Steel | 2 | ||||||
| 41 | 10-821281 | SCREW, (.312-18 x 2.500) | 2 | ||||||
| 42 | 12-848136 | WASHER | 8 | ||||||
| 43 | 11-82670911 | NUT, (.312-24) | 8 | 11-35814 | |||||
| 44 | 27-848438 | GASKET, Flare - Copper | 4 | ||||||
| - | 27-818188A98 | GASKET SET, Engine Overhaul | 1 | 27-818188A96 |
