600 SC Bobtail 1998 - Serial 0L414734 Thru 0L601186 - Supercharger

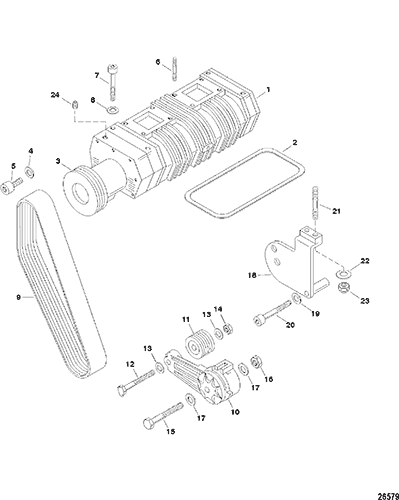

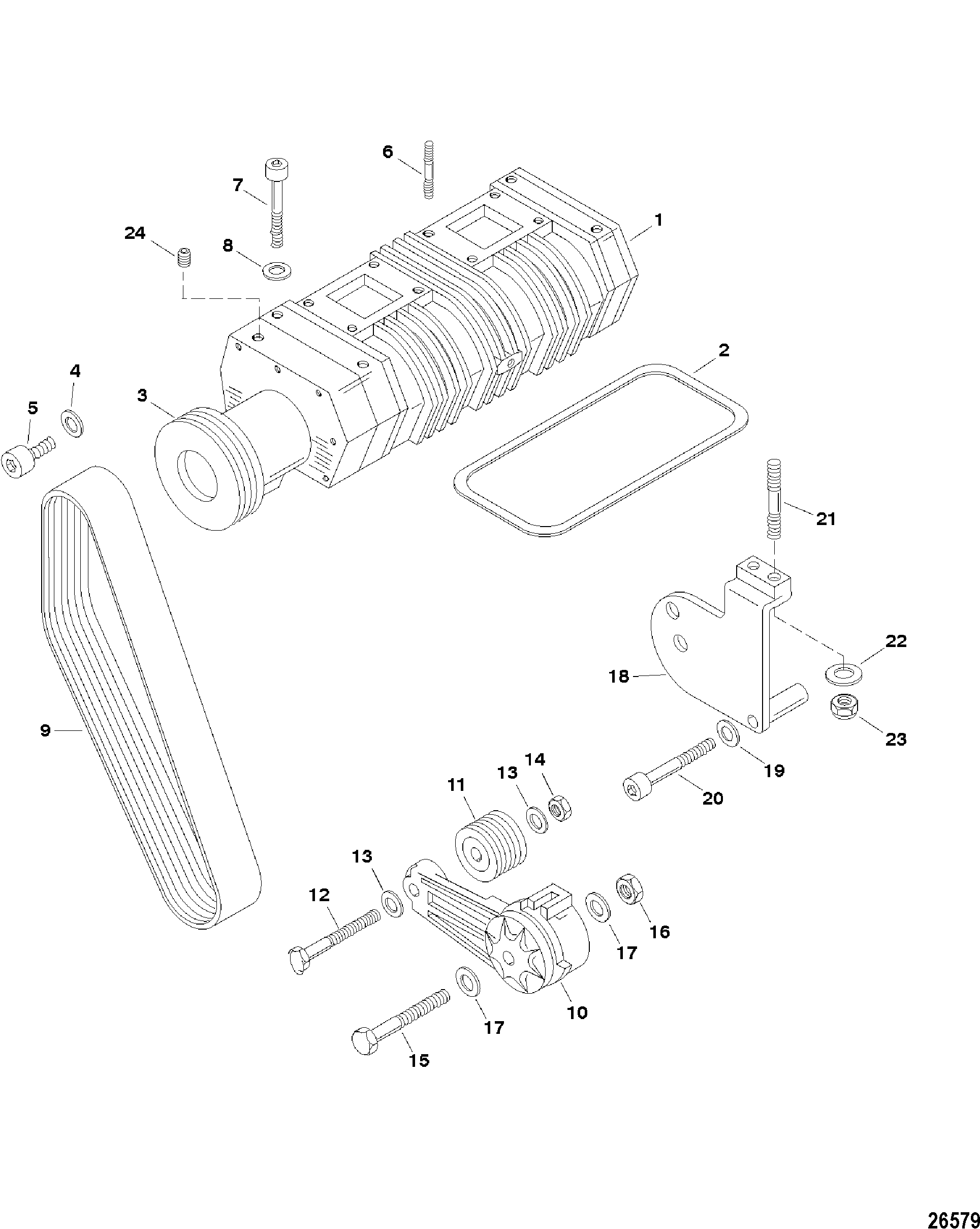

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft – Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Exhaust Header - Tailpipe Assembly
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mount Plates
- Oil Cooler And Oil Filter
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Assembly (50-8M8021116)
- Supercharger
- Thermostat Housing
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 818950A1 | SUPERCHARGER ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 2 | 25-818972 | O-RING | 1 | 3 | |||||
| 3 | 8189811 | PULLEY, Blue | 1 | This Part is No Longer Available | |||||
| 4 | 12-37828 | WASHER, (.390 x .625 x .062) | 6 | ||||||
| 5 | 10-30206 | SCREW, (.375-16 x 1.00) | 6 | ||||||
| 6 | 16-46857 | STUD (.312-18 x 1.875) | 8 | ||||||
| 7 | 10-818969 | SCREW | 4 | This Part is No Longer Available | |||||
| 8 | 12-822350 | WASHER | 4 | ||||||
| 9 | 57-817113 | BELT, Serpentine | 1 | ||||||
| 10 | 848090T1 | TENSIONER ASSEMBLY, Blue | 1 | 848090A1 | This Part is No Longer Available | ||||
| 11 | 848091T | PULLEY, Tensioner | 1 | 848091 | This Part is No Longer Available | ||||
| 12 | 10-848088 | SCREW (.375-16 x 2.250) Special | 1 | This Part is No Longer Available | |||||
| 13 | 12-74759 | WASHER, (.391 x .880 x .125) | 2 | ||||||
| 14 | 11-848089 | NUT (.375-16) Special | 1 | This Part is No Longer Available | |||||
| 15 | 10-848106 | SCREW (.437-14 x 3.250) | 1 | This Part is No Longer Available | |||||
| 16 | 11-848107 | NUT (.437-14) | 1 | This Part is No Longer Available | |||||
| 17 | 12-45176 | WASHER, (.453 x .812 x .105) | 2 | ||||||
| 18 | 8480681 | BRACKET ASSEMBLY, Tensioner Assembly | 1 | This Part is No Longer Available | |||||
| 19 | 12-45175 | WASHER, (.406 x .750 x .104) | 1 | ||||||
| 20 | 10-848105 | SCREW (.375-16 x 3.250) | 1 | This Part is No Longer Available | |||||
| 21 | 16-848562 | STUD (.312-24 x 1.65) | 2 | ||||||
| 22 | 12-70132 | WASHER, (.323 x .563 x .063) Stainless Steel | 2 | ||||||
| 23 | 11-82670911 | NUT, (.312-24) | 2 | 11-35814 | |||||
| 24 | 845606 | PLUG | 1 | 42534 | |||||
| - | 27-818188A98 | GASKET SET, Engine Overhaul | 1 | 27-818188A96 |
