600 SC Bobtail 1998 - Serial 0L414734 Thru 0L601186 - Starter Assembly (50-8M8021116)

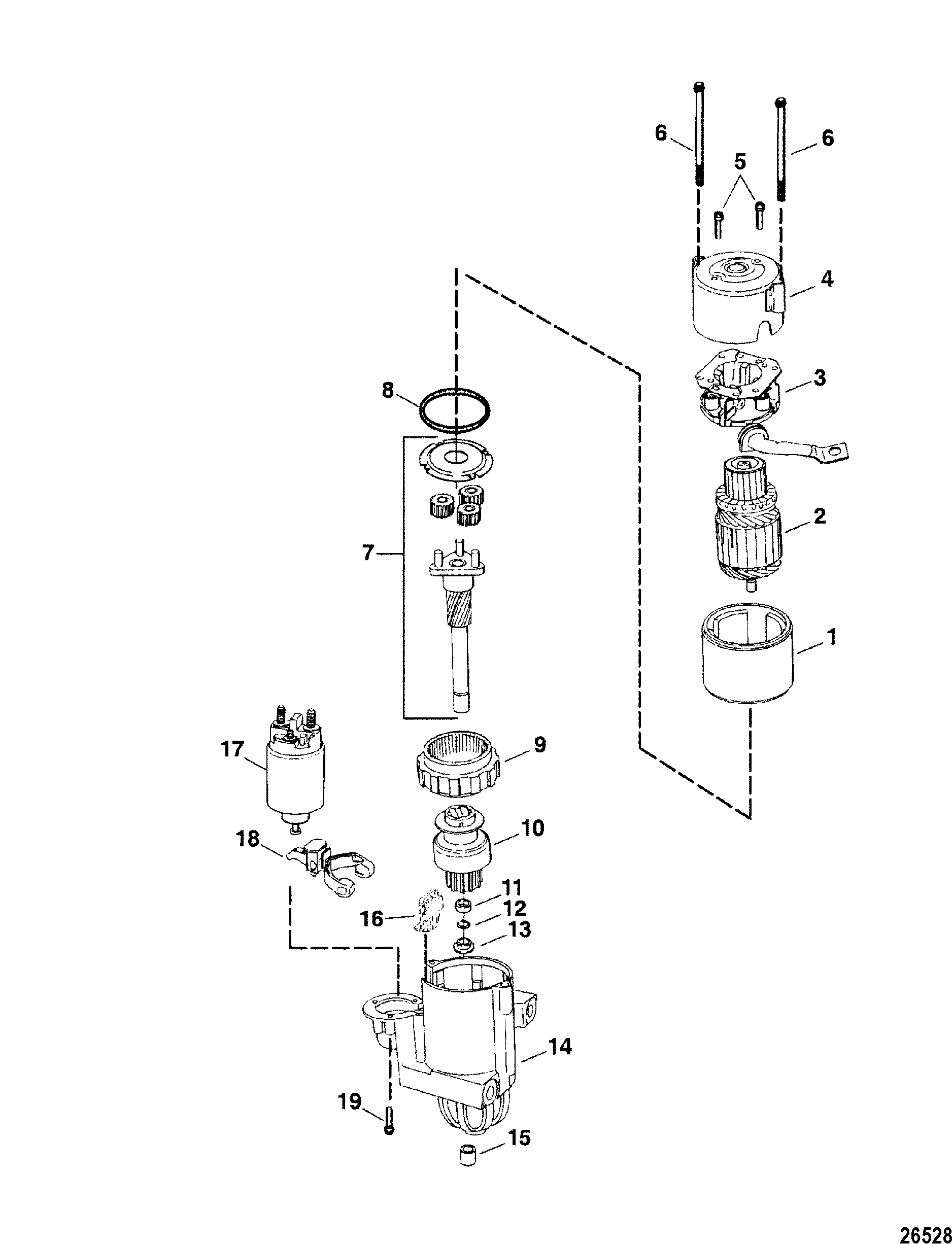

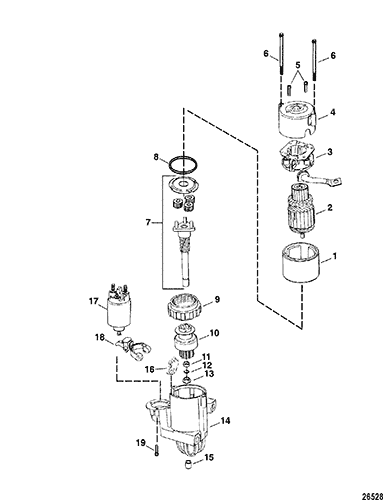

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft – Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Exhaust Header - Tailpipe Assembly
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mount Plates
- Oil Cooler And Oil Filter
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Assembly (50-8M8021116)
- Supercharger
- Thermostat Housing
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 50-8M8021116 | STARTER ASSEMBLY | 1 | Bravo Plug In Models | |||||
| 2 | NSS | NOT SOLD SEPARATE, Armature | 1 | This Part is not sold separately | |||||
| 3 | NSS | NOT SOLD SEPARATE, Brush Holder And Spring | 1 | This Part is not sold separately | |||||
| 4 | NSS | NOT SOLD SEPARATE, Frame | 1 | This Part is not sold separately | |||||
| 5 | NSS | NOT SOLD SEPARATE, Screw | 2 | This Part is not sold separately | |||||
| 6 | NSS | NOT SOLD SEPARATE, Thru Bolt | 2 | This Part is not sold separately | |||||
| 7 | NSS | NOT SOLD SEPARATE, Shaft And Gear | 1 | This Part is not sold separately | |||||
| 8 | NSS | NOT SOLD SEPARATE, Gasket | 1 | This Part is not sold separately | |||||
| 9 | NSS | NOT SOLD SEPARATE, Gear | 1 | This Part is not sold separately | |||||
| 10 | NSS | NOT SOLD SEPARATE, Drive | 1 | This Part is not sold separately | |||||
| 11 | 33291 | COLLAR | 1 | ||||||
| 12 | 53-33290 | RING, Retaining | 1 | ||||||
| 13 | NSS | NOT SOLD SEPARATE, Thrust Collar | 1 | This Part is not sold separately | |||||
| 14 | NSS | NOT SOLD SEPARATE, Drive Housing | 1 | This Part is not sold separately | |||||
| 15 | 23-814476 | BUSHING | 1 | This Part is No Longer Available | |||||
| 16 | NSS | NOT SOLD SEPARATE, Grommet | 1 | This Part is not sold separately | |||||
| 17 | 809463A1 | 676-9-15125 | 700-72450 | SOLENOID KIT | 1 | ||||
| 18 | NSS | NOT SOLD SEPARATE, Lever | 1 | This Part is not sold separately | |||||
| 19 | NSS | NOT SOLD SEPARATE, Screw | 3 | This Part is not sold separately |
