600 SC Bobtail 1998 - Serial 0L414734 Thru 0L601186 - Crankshaft – Pistons - Connecting Rods

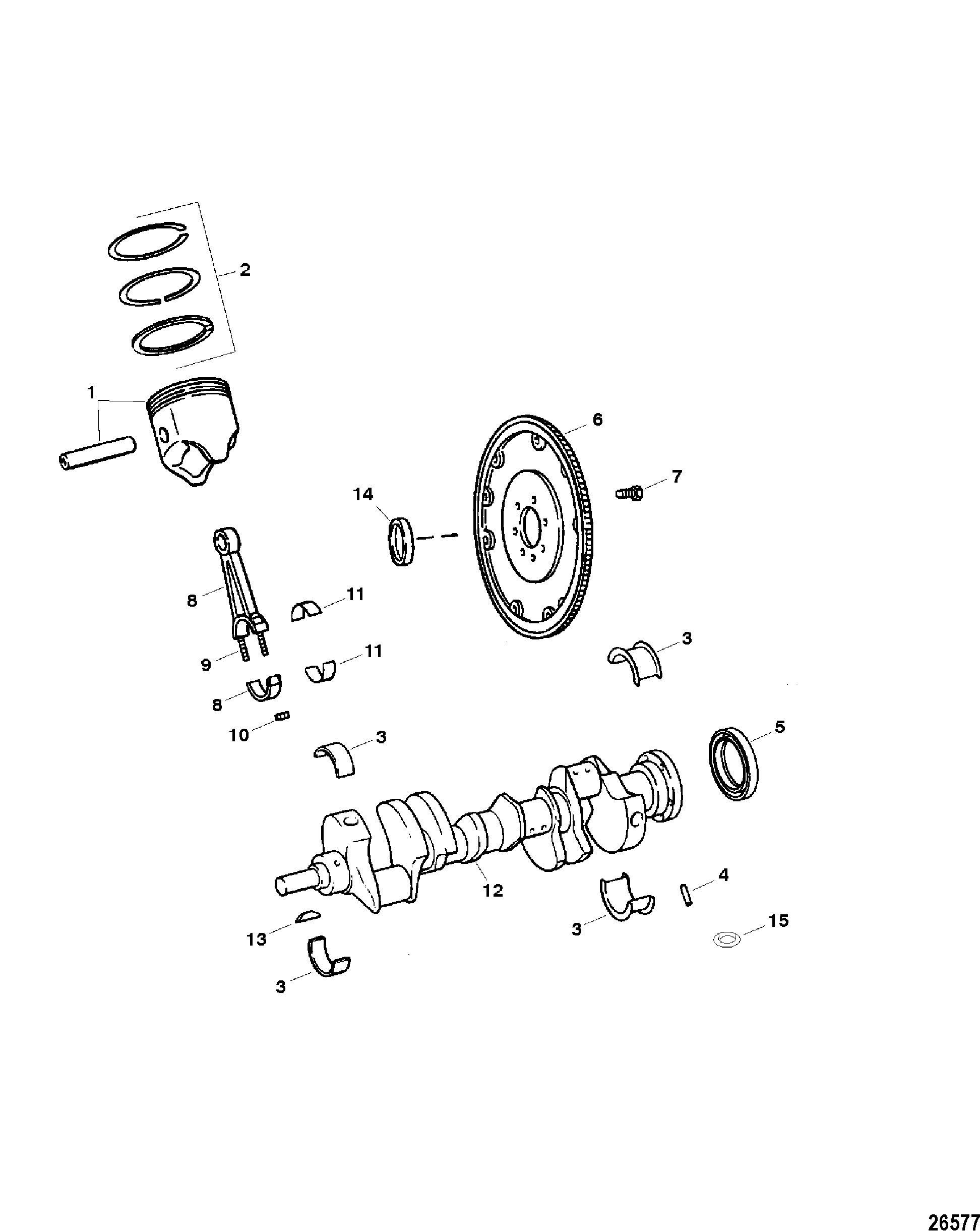

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft – Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Exhaust Header - Tailpipe Assembly
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mount Plates
- Oil Cooler And Oil Filter
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Assembly (50-8M8021116)
- Supercharger
- Thermostat Housing
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 2701-821003T | PISTON ASSEMBLY | 8 | 2701-821003 | This Part is No Longer Available - Standard | ||||
| 1 | 2701-821003T1 | PISTON ASSEMBLY | 8 | 2701-821003A1 | This Part is No Longer Available - .034 Oversize - NOTE: When Ordering Oversize Pistons For This Engine, It Is Recommended That The Crankshaft, Rod And Piston Assembly Be Rebalanced Before Engine Is Rebuilt | ||||
| 2 | 39-818874 | RING KIT, Piston | 1 | This Part is No Longer Available - Standard | |||||
| 2 | 39-847684 | RING SET, Piston | 1 | This Part is No Longer Available - .034 Oversize | |||||
| 3 | 23-818473001 | BEARING SET, Main (Standard) | 1 | 23-818473 | |||||
| 3 | 23-818474 | BEARING SET, Main (.001 Undersize) | AR | ||||||
| 3 | 23-818475 | BEARING SET, Main (.002 Undersize) | AR | ||||||
| 3 | 818476001 | BEARING SET, Main (.010 Undersize) | AR | 23-818476 | |||||
| 3 | 23-818477 | BEARING SET, Main (.020 Undersize) | AR | ||||||
| 4 | 17-843378 | PIN, Dowel (.250) | 1 | 17-35312 | |||||
| 5 | 26-811554 | SEAL, Oil | 1 | 3 | |||||
| 6 | 274-821985 | FLYWHEEL | 1 | ||||||
| 7 | 10-845757 | SCREW, (.437-20 x 1.00) | 6 | 10-49845 | |||||
| 8 | 614-9641T | CONNECTING ROD | 8 | 614-9641 | |||||
| 9 | 10-19234 | SCREW, (.437-20), Connecting Rod Cap | 16 | ||||||
| 10 | 11-37493 | NUT, (.375-24), Connecting Rod Cap Bolt | 16 | ||||||
| 11 | 23-85726001 | BEARING SET, Conn Rod (Standard) | 8 | 23-85726 | |||||
| 11 | 23-85727 | BEARING SET, Conn Rod (.001 Undersize) | AR | ||||||
| 11 | 23-85728 | BEARING SET, Conn Rod (.002 Undersize) | AR | This Part is No Longer Available | |||||
| 11 | 23-85691 | BEARING SET, Conn Rod (.010 Undersize) | AR | ||||||
| 11 | 23-85729 | BEARING SET, Conn Rod (.020 Undersize) | AR | ||||||
| 12 | 429-843083T | CRANKSHAFT | 1 | 429-811550 | |||||
| 13 | 28-845607 | KEY, Crankshaft | 1 | 28-811558 | |||||
| 14 | 23-823108 | BUSHING, Crankshaft Pilot | OPT | Driveline Models | |||||
| 15 | 25-69756 | O-RING, (.500 Inch) | 1 | 25-811528 | NOTE: #5 Bearing Cap Oil Hole 3 | ||||
| - | 27-818188A98 | GASKET SET, Engine Overhaul | 1 | 27-818188A96 |
