600 SC Bobtail 1998 - Serial 0L414734 Thru 0L601186 - Thermostat Housing

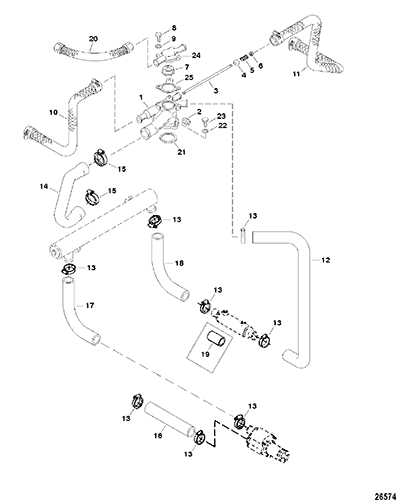

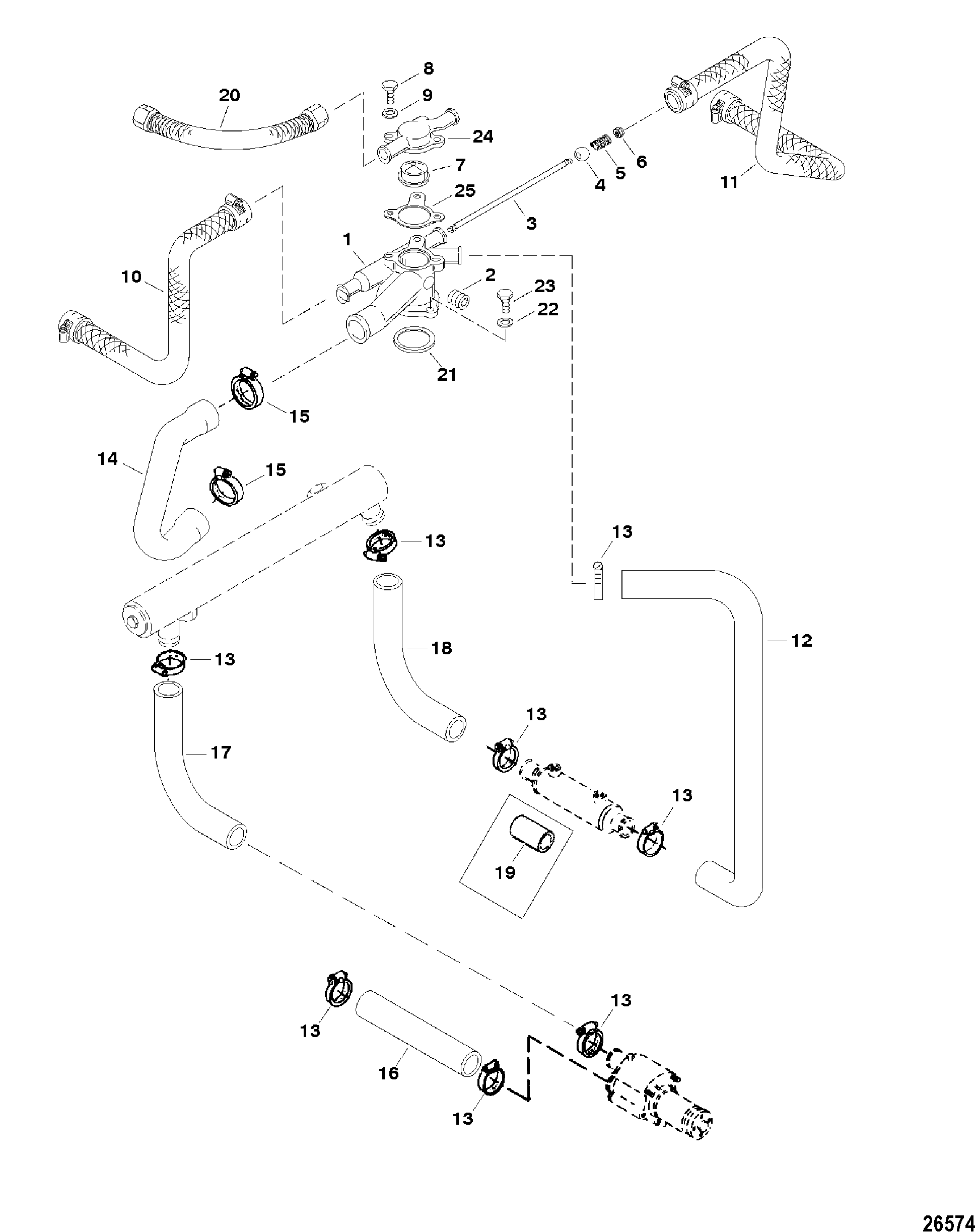

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft – Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Exhaust Header - Tailpipe Assembly
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mount Plates
- Oil Cooler And Oil Filter
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Assembly (50-8M8021116)
- Supercharger
- Thermostat Housing
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 847704A1 | HOUSING ASSEMBLY, Thermostat | 1 | This Part is No Longer Available | |||||
| 2 | 22-36373 | PLUG, Hex Steel (.375-18) | 1 | ||||||
| 3 | 6-847742 | STUD, (#10-32 x 11.810), By Pass Valve | 1 | ||||||
| 4 | 30-98475 | BALL, Nylon | 2 | ||||||
| 5 | 24-75533 | SPRING | 2 | ||||||
| 6 | 11-29488 | 700-21163 | NUT, (#10-32) | 2 | No longer made, limited availability | ||||
| 7 | 591371 | THERMOSTAT | 1 | ||||||
| 8 | 10-30206 | SCREW, (.375-16 x 1.00), Cover To Housing | 2 | ||||||
| 9 | 12-37828 | WASHER, (.390 x .625 x .062) | 2 | ||||||
| 10 | 32-847707A4 | HOSE ASSEMBLY (22.00 Inches) Housing To Pipe | 1 | This Part is No Longer Available - Starboard | |||||
| 11 | 32-847707A7 | HOSE ASSEMBLY (14.50 Inches) Housing To Pipe | 1 | Port | |||||
| 12 | 32-818361 | HOSE, Tube To Thermostat Housing | 1 | This Part is No Longer Available | |||||
| 13 | 54-180766 | CLAMP, Worm Gear | 8 | ||||||
| 14 | 32-842412A02 | HOSE, Thermostat Housing To Pump | 1 | 32-822525 | |||||
| 15 | 54-180768 | CLAMP, Worm Gear | 2 | ||||||
| 16 | 32-1743565 | HOSE, (38.00 Inches Bulk), Cut As Required - Pickup To Pump | 1 | ||||||
| 17 | 32-848178 | HOSE, Sea Pump To Engine Cooler | 1 | ||||||
| 18 | 32-848956 | HOSE, Molded, Engine Cooler To Connector Tube | 1 | ||||||
| 19 | 22-13177 | TUBE, Connector | 1 | ||||||
| 20 | 32-847707A8 | HOSE ASSEMBLY (20.50 Inches) Cover To Manifold | 1 | This Part is No Longer Available - Starboard | |||||
| 20 | 32-847707A1 | HOSE ASSEMBLY (12.00 Inches) Cover To Manifold | 1 | This Part is No Longer Available - Port | |||||
| 21 | 25-20826 | 700-82280 | 525-25-20826 | O-RING, (2.230 x .139) | 1 | 3 | |||
| 22 | 12-20086 | WASHER, (.390 x .620 x .060), Housing To Manifold | 3 | ||||||
| 23 | 10-34353 | SCREW, (.375-16 x 1.00), Housing To Manifold | 3 | ||||||
| 24 | 847706T1 | COVER, Thermostat | 1 | 8477061 | |||||
| 25 | 27-818364 | GASKET, Thermostat | 1 | 3 | |||||
| - | 27-818188A98 | GASKET SET, Engine Overhaul | 1 | 27-818188A96 |
