600 SC Bobtail 1998 - Serial 0L414734 Thru 0L601186 - Intake Manifold And Front Cover

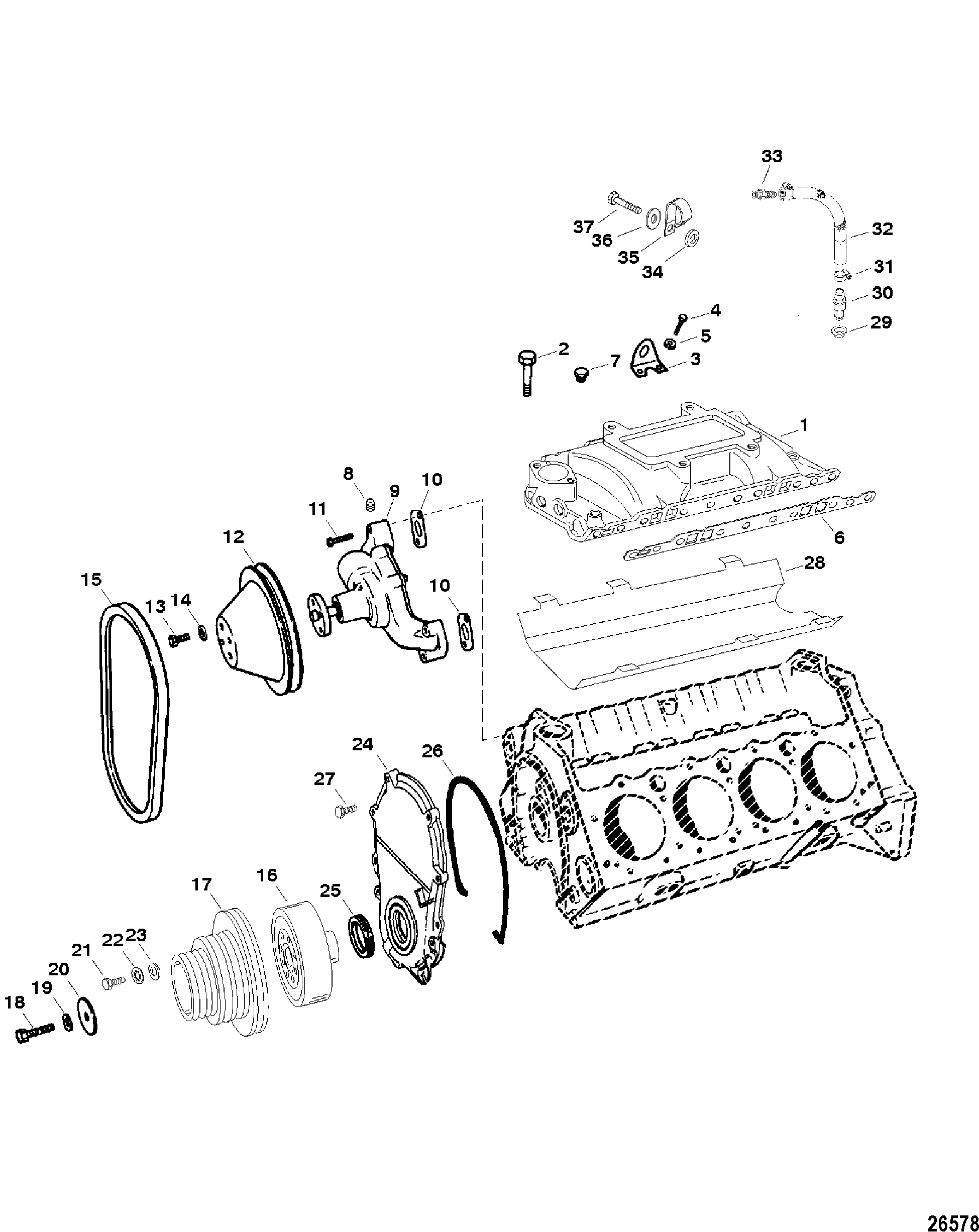

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 8485831         MANIFOLD, Intake 1   This Part is No Longer Available
2 10-815687         SCREW, (.375-16 x 1.250) 12
Hex Head
2 10-818369         SCREW (.375-16 x 1.250) 2   This Part is No Longer Available - Socket Head
3 54-64628         LIFTING EYE 1 54-646281
4 10-812567         SCREW, (.375-16 x 1.625) 2

5 12-37828         WASHER, (.390 x .625 x .062) 16

6 27-8181881         GASKET, Intake Manifold 2
3
7 22-328022         PLUG, Pipe (.125-27), Brass 1 22-328021
8 22-845174         PLUG, Circulating Pump 1 22-61162
9 811573A04         PUMP ASSEMBLY, Circulating Water 1 811573A03
10 27-49110         GASKET, Circulating Water Pump Mount 2
3
11 10-805611         SCREW, (.375-16 x 1.750) 4 10-811574
12 523491         PULLEY, Blue 1   This Part is No Longer Available
13 10-47277         SCREW, (.312-24 x .750) 4

14 13-39107     700-21496   LOCKWASHER, (.312) 4

15 57-816034Q         V BELT 1 57-816034
16 845625T2         BALANCER 1 850460
17 8219821         PULLEY, Crankshaft - Blue 1   This Part is No Longer Available
18 10-8M2011240         SCREW, (.500-20 x 2.500), Crankshaft 1 10-48490
19 13-38829         LOCKWASHER, (.500) 1

20 12-49103         WASHER 1

21 10-357851         SCREW, (.375-16 x .250), Pulley 3

22 13-35048         LOCKWASHER, (.375) 3

23 12-20553         WASHER, (.406 x .734 x .063) 3

24 845610T         COVER ASSEMBLY, Timing Chain 1 850459
25 26-8219471         SEAL, Oil 1
3
26 27-850456         GASKET, Front Cover Mount 1
3
27 10-850455         SCREW 10

28 845756T         SHIELD, Oil - Intake 1 816073
29 25-811553         GROMMET 1
3
30 848578         VALVE ASSEMBLY, Crankcase Vent 1

31 54-815504104         CLAMP, Worm Gear 1

32 32-823229A5         HOSE ASSEMBLY, PCV (21.00 Inches) 1   This Part is No Longer Available
33 22-823195         ADAPTOR, Supercharger 1   This Part is No Longer Available
34 821018         SPACER 1   This Part is No Longer Available
35 54-78945         J CLAMP, Harness Support 1

36 12-70132         WASHER, (.323 x .563 x .063) Stainless Steel 1

37 10-821281         SCREW, (.312-18 x 2.500) 1

- 27-818188A98         GASKET SET, Engine Overhaul 1 27-818188A96
