4.3L (GEN +) (2 BBL.) GM 262 V-6 - 0L010044 THRU 0M614999 - Standard Cooling System

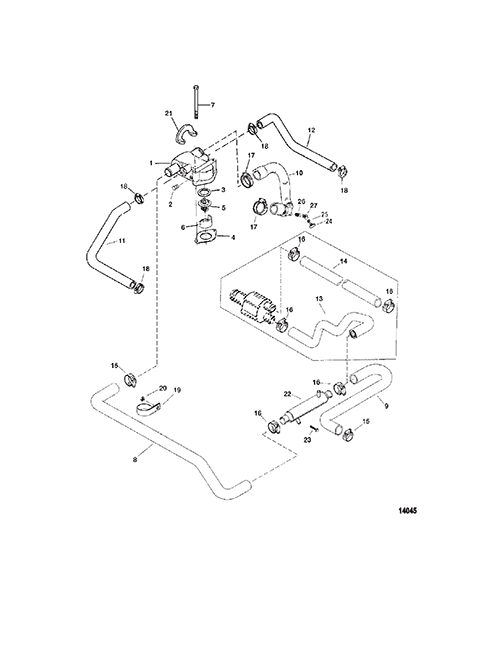

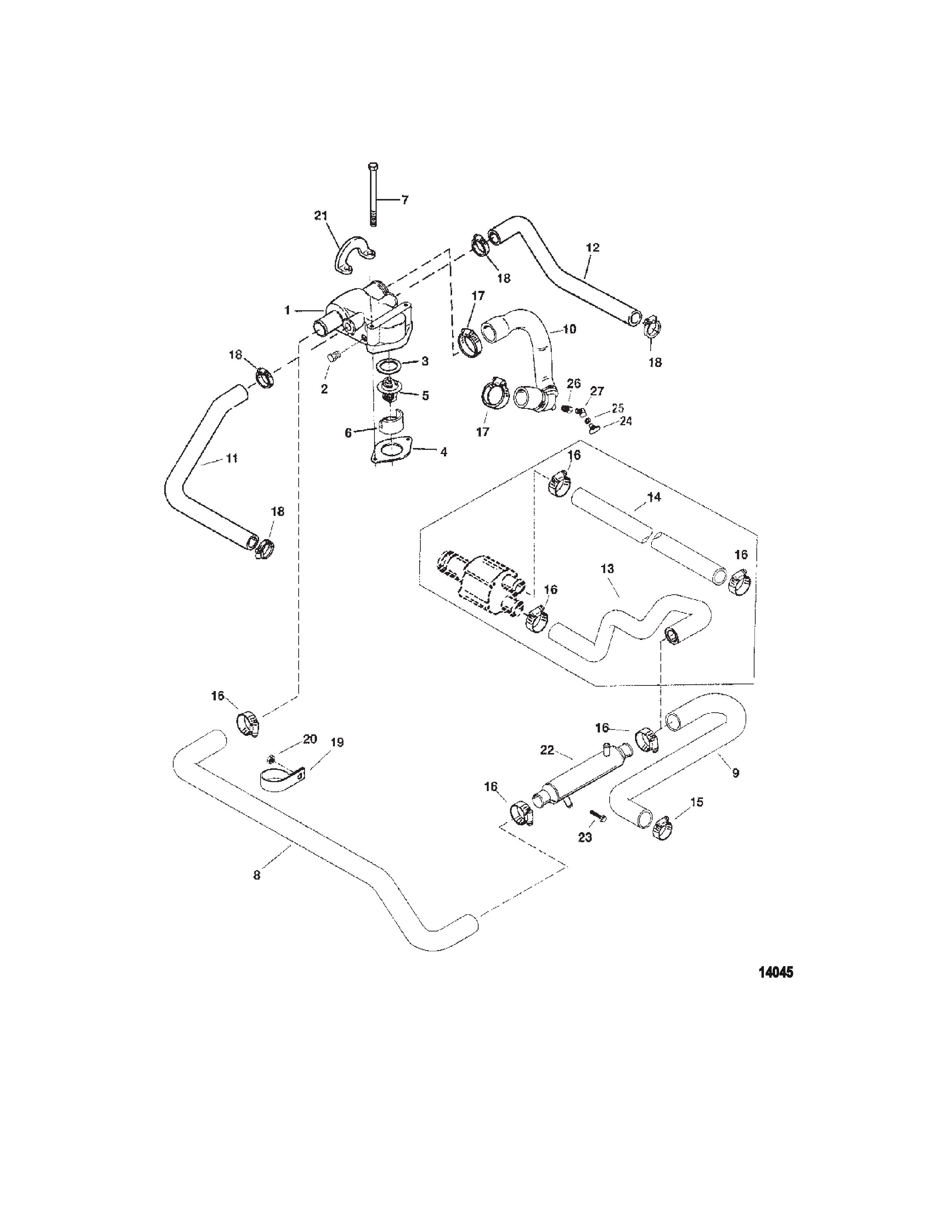

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 OEM: 525-860256A3 HOUSING ASSEMBLY Thermostat (Alpha) 1
1 0000 OEM: 525-860256A4, Sierra: 676-18-3530-1 HOUSING ASSEMBLY Thermostat (Bravo) 1
2 0022 OEM: 525-22-32803, Sierra: 676-18-4264, GLM: 700-21894 PLUG Pipe (.375-18) Brass   2
3 0027 OEM: 525-27-806871 GASKET   1 [1]
4 0027 OEM: 525-27-530451, Sierra: 676-18-2917 GASKET   1 [2]
5 0000 OEM: 525-807252T2, Sierra: 676-18-3649, GLM: 700-13100 THERMOSTAT 71DegreeC (160 Degree F)   1 [3]
6 0023 OEM: 530-806922 SLEEVE   1
7 0010 OEM: 525-10-98508 SCREW (.375-16 x 3.00)   2
8 0032 OEM: 525-32-8062091 HOSE Thermostat Housing To Power Steering Oil Cooler   1
9 0032 OEM: 525-32-807661 HOSE (Alpha Engines) 1
10 0032 861590A2 HOSE ASSEMBLY Thermostat Housing to Water Pump With Drain   1
11 0032 OEM: 525-32-860144, Sierra: 676-18-70940 HOSE Thermostat Housing To Port Exhaust Manifold (One Piece Manifold) 1
11 0032 OEM: 525-32-862139, Sierra: 676-18-70945 HOSE Thermostat Housing to Port Exhaust Manifold (Two Piece Manifold) 1 [4]
12 0032 OEM: 525-32-807697 HOSE Thermostat Housing to Starboard Manifold (One Piece Manifold) 1
12 0032 8066362 HOSE Thermostat Housing To Starboard Exhaust Manifold (Two Piece Manifold) [0L618999] & Below 1
12 0032 OEM: 525-32-862124, Sierra: 676-18-70947 HOSE Thermostat Housing to Starboard Manifold (Two Piece Manifold) [0L619000 ] & Up 1 [4]
13 0032 OEM: 525-32-860205, Sierra: 676-18-70951 HOSE Oil Cooler to Sea Water Pump   1
14 0032 1743579 HOSE (96.00 Inches Bulk) (Bravo Engines) 1
15 0054 OEM: 525-54-815504212 CLAMP Worm Gear   1
16 0054 OEM: 525-54-815504222 CLAMP Worm Gear (1.98 DIameter)   6
17 0054 OEM: 525-54-815504232 CLAMP Worm Gear (2.50 Diameter)   2
18 0054 OEM: 525-54-815504220 CLAMP Worm Gear   4
19 0054 OEM: 525-54-47715 CLIP   1
20 0011 OEM: 525-11-29250 NUT (.312-24)   1
21 0000 OEM: 525-12552, GLM: 700-13237 LIFTING EYE   1
22 0000 861554T COOLER   1
23 0010 OEM: 525-10-816585 SCREW (.312-18 x .875) Metal Cooler 1
23 0010 OEM: 525-10-8M2016106 SCREW (.312 x 1.25) Composite Cooler (Included with 861554T02) 1
24 0022 806608A1 PLUG KIT (.500-13) Royal Blue   1 [5]
25 0025 32509 O-RING (.489 x .070)   1
26 0022 OEM: 525-22-860088 BUSHING   1 [4]
27 0022 OEM: 525-22-37682 FITTING Elbow (45 Degree)   1 [4]
NS 0019 8079923 COVER Hose Clamp End   AR [6]
- 0027 824326A96 GASKET SET Overhaul   1

PART NOTES:

[1] - Component Of Overhaul Gasket Set 824326A96


[2] - Alternate part numbers:

53045 1Service Part

53045Q01QS

Component Of Overhaul Gasket Set 824326A96


[3] - Alternate part numbers:

807252Q 5QS Kit

807252T 2Service Part

807252T 5MPP Kit


[4] - Part Number Is New And Listed For The First Time


[5] - Alternate part numbers:

806608A 1Service Part

806608Q01QS


[6] - As Required
