4.3L (GEN +) (2 BBL.) GM 262 V-6 - 0L010044 THRU 0M614999 - Cylinder Head And Rocker Cover

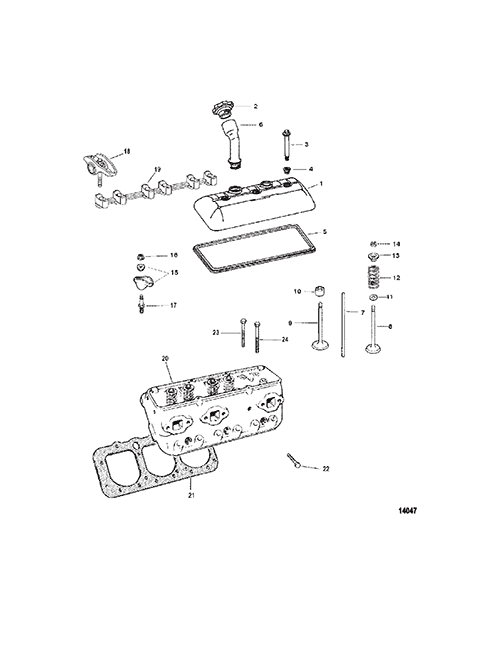

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator And Brackets (Delco)
- Alternator And Brackets (Mando)
- Carburetor (Mercarb - Two Barrel)
- Carburetor (Weber)
- Carburetor And Throttle Linkage (2 Barrel)
- Carburetor And Throttle Linkage (Four Barrel)
- Closed Cooling System
- Crankshaft And Pistons
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Decals
- Distributor And Ignition Components
- Electrical Components
- Engine Mounting
- Exhast Manifold And Exhaust Elbow (Two Piece)
- Exhaust Manifold (One Piece)
- Exhaust System (Use With One Piece Manifold)
- Exhaust System (Use With Two Piece Manifold)
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Information
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly (Use With Bravo Engines)
- Serpentine Belts (S-N 0L010044 thru 0L618999)
- Serpentine Belts S-N 0L619000 And Above
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Starter Motor
- Swiss Emissions Parts (BSO1 and SAV1)
- Wiring Harness And Electrical Components
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | OEM: 525-827149 | COVER Rocker | (Port) | 1 | |
| 1 | 0000 | OEM: 525-827150 | COVER Rocker | (Starboard) | 1 | |
| 2 | 0036 | OEM: 525-36-827151 | CAP Oil Fill | 1 | ||
| 3 | 0010 | OEM: 525-10-827153 | SCREW | 6 | ||
| 4 | 0025 | OEM: 525-25-827155 | O-RING | 6 | ||
| 5 | 0027 | OEM: 525-27-827154, Sierra: 676-18-61319, GLM: 700-30358 | GASKET Rocker Cover | 2 | [1] | |
| 6 | 0000 | OEM: 525-806754T | TUBE Oil Fill | 1 | ||
| 7 | 0000 | OEM: 525-173391 | PUSH ROD | 12 | ||
| 8 | 0000 | OEM: 525-8243171 | VALVE | 6 | ||
| 8 | 0000 | OEM: 525-8243181 | VALVE | AR | [2] | |
| 9 | 0000 | OEM: 525-809992 | VALVE | 6 | ||
| 10 | 0026 | OEM: 525-26-976641, Sierra: 676-18-4024 | SEAL | 6 | [1] | |
| 11 | 0026 | OEM: 525-26-34217, Sierra: 676-18-0518 | SEAL O-Ring | 6 | [1] | |
| 12 | 0024 | OEM: 525-24-483471 | SPRING | 12 | ||
| 13 | 0000 | OEM: 525-483481 | CAP | 12 | ||
| 14 | 0028 | OEM: 525-28-547971 | KEY | 24 | ||
| 15 | 0000 | OEM: 525-824335T | ROCKER ARM AND BALL KIT | (Use With Non-Roller Rocker Cylinder Head) | 12 | |
| 16 | 0011 | OEM: 525-11-801883 | NUT | (Use With Non-Roller Rocker Cylinder Head) | 12 | |
| 17 | 0016 | OEM: 525-16-8018821 | STUD | (Use With Non-Roller Rocker Cylinder Head) | 12 | |
| 18 | 0000 | 883164 | ROCKER ARM ASSEMBLY Roller | 12 | ||
| 19 | 0000 | OEM: 525-883165 | SUPPORT Rocker Arm Roller | 2 | ||
| 20 | 0938 | 8271782 | CYLINDER HEAD ASSEMBLY | (Non-Roller Rocker Cylinder Head) | 2 | |
| 20 | 0938 | OEM: 525-938-8271783 | CYLINDER HEAD | (Roller Rocker Cylinder Head) | 1 | [3] |
| 21 | 0027 | 816460 | GASKET | 2 | [1] | |
| 22 | 0010 | OEM: 525-10-11968 | SCREW (.437-14 x 1.750) | 12 | ||
| 23 | 0010 | 119671 | SCREW (.437-14 x 3.00) | 4 | ||
| 24 | 0010 | OEM: 525-10-11966 | SCREW (.437-14 x 3.750) | 10 | ||
| - | 0027 | 824326A96 | GASKET SET Overhaul | 1 |
PART NOTES:
[1] - Component Of Overhaul Gasket Set 824326A96
[2] - As Required
[3] - Alternate part numbers:
827178 3QS
8M0115136Kit
