4.3L (GEN +) (2 BBL.) GM 262 V-6 - 0L010044 THRU 0M614999 - Shift Bracket (Bravo Engines)

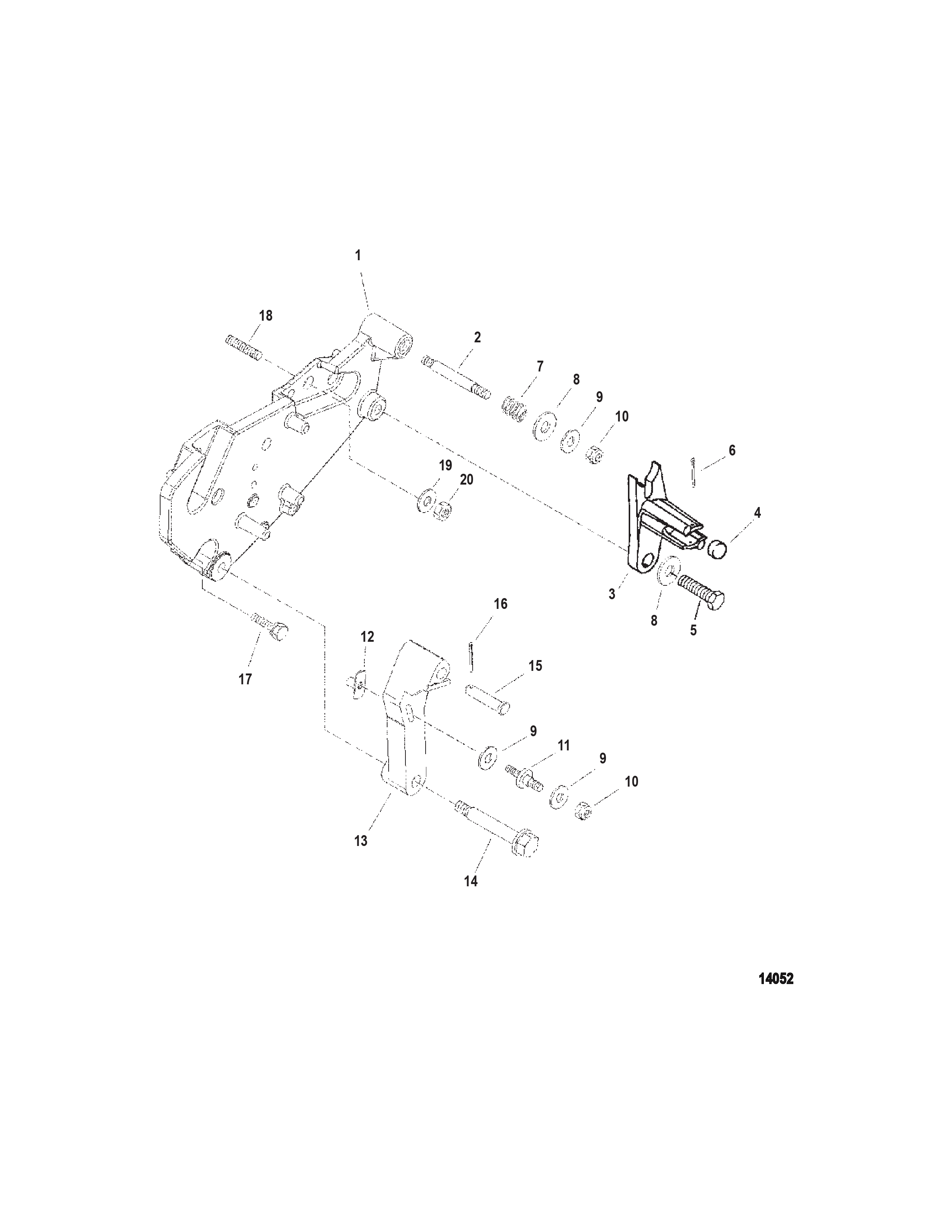

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 807962A3 BRACKET ASSEMBLY Shift   1
2 0016 987981 STUD (.250-20/.250-28 x 2.120)   1
3 0000 123811 RETAINER   1
4 0023 OEM: 525-23-98828 SPACER   1
5 0010 53167 SCREW (.312-18 x .880)   1
6 0018 32857 COTTER PIN   1
7 0024 OEM: 525-24-98880 SPRING   1
8 0012 OEM: 525-12-56720 WASHER (.330 x .750 x .060) Stainless Steel   2
9 0012 OEM: 525-12-35462 WASHER (.2656 x .625 x .0625) Stainless Steel   5
10 0011 13438 NUT (.250-28)   2
11 0016 96112 STUD (.250-28 x 2.00) Throttle Cable Anchor   1
12 0011 OEM: 525-11-63341 TEE NUT   1
13 0000 138981 LEVER   1
14 0010 13743 SCREW (.312-18 x 1.843) Shoulder   1
15 0017 OEM: 525-17-68402 PIN (.250 x 1.13)   1
16 0018 21071 COTTER PIN   1
17 0010 OEM: 525-10-657461 SCREW AND LOCKWASHER (.250- 20 x .625) (2 PC. EXHAUST MANIFOLD) 3
18 0016 66357 STUD (.250-28 x 1.00) (1 PC. EXHAUST MANIFOLD) 2
19 0012 OEM: 525-12-69057 WASHER (.281 x .734 x .063) (1 PC. EXHAUST MANIFOLD) 2
20 0011 35045 NUT (.250-28) (1 PC. EXHAUST MANIFOLD) 2
