4.3L (GEN +) (2 BBL.) GM 262 V-6 - 0L010044 THRU 0M614999 - Fuel Pump And Fuel Filter

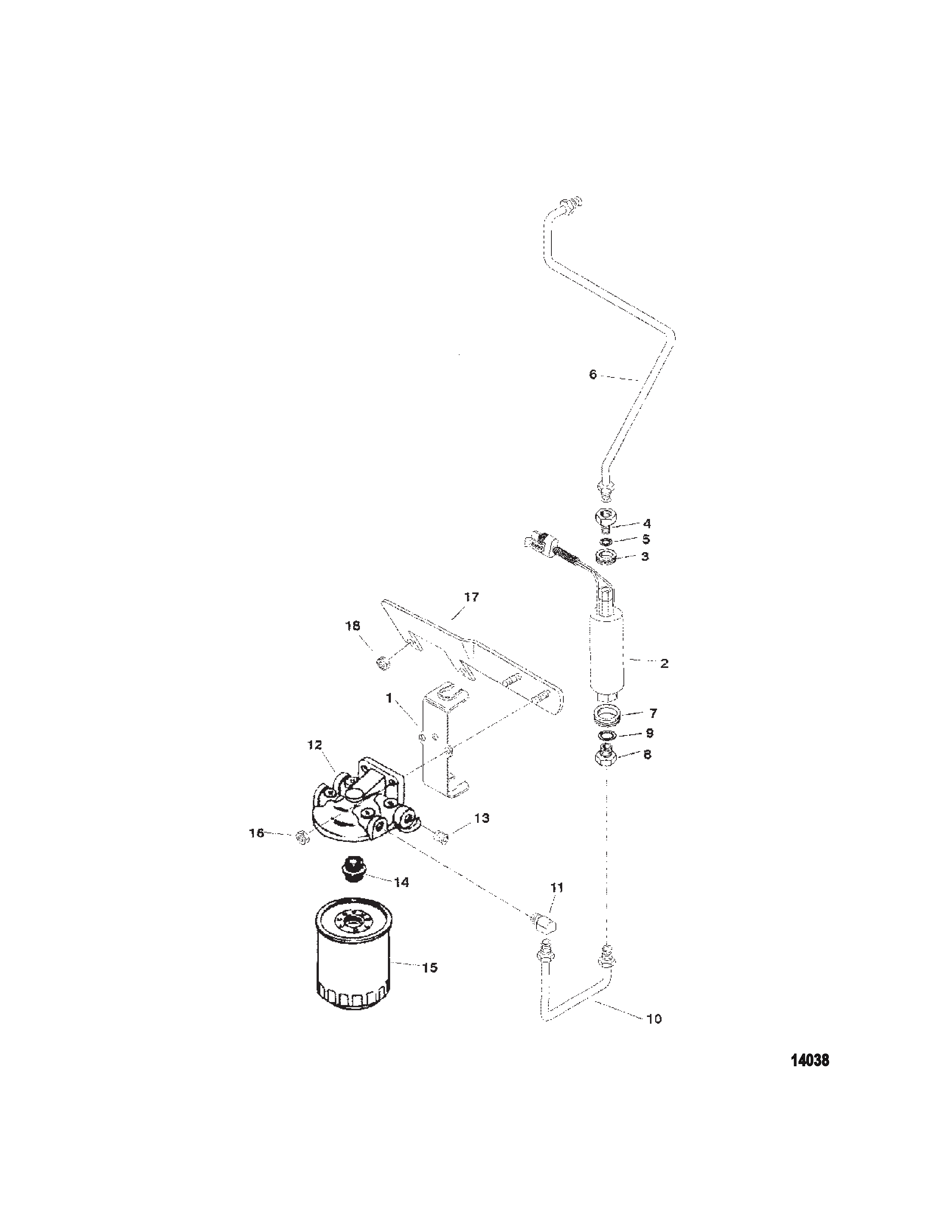

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 OEM: 525-861319 BRACKET Fuel Pump   1
2 0000 OEM: 530-861155A3, Sierra: 676-18-8868 PUMP ASSEMBLY Fuel   1
3 0025 OEM: 525-25-817491 GROMMET (.56 Inside Diameter)   1
4 0022 OEM: 525-22-805027A1 FITTING ASSEMBLY (1.00 Inch Overall Length) 1
4 0022 OEM: 525-22-861395A1 FITTING ASSEMBLY (1.25 Inch Overall Length) 1
5 0025 OEM: 525-25-805063 O-RING (.301 x .070)   1
6 0032 861320 LINE Fuel (Two Barrel) 1
6 0032 OEM: 525-32-861321 LINE Fuel (Four Barrel) 1
7 0025 OEM: 525-25-13467 GROMMET (.88 Inside Diameter)   1
8 0022 OEM: 525-22-805026A1 FITTING   1
9 0025 OEM: 525-25-805062 O-RING (.530 x .082)   1
10 0032 OEM: 525-32-861250 LINE ASSEMBLY Fuel   1
11 0022 93385 FITTING (90 Degree)   1
12 0000 OEM: 525-89876A3, Sierra: 676-18-7853-1, GLM: 700-25000 BASE ASSEMBLY Fuel Filter/Water Seperator   1
13 0022 OEM: 525-22-32561 PLUG Pipe - Allen Head (.250-18)   3
14 0022 OEM: 525-22-816133 FITTING   1
15 0035 802893Q FILTER Fuel/Water Separating - Quicksilver Brand   1 [1]
16 0011 OEM: 525-11-82670911 NUT (.312-24) Stainless Steel   2
17 0000 OEM: 525-807918T BRACKET Fuel Filter Base   1
18 0011 OEM: 525-11-860069 NUT (.375-16)   2
18 0011 OEM: 525-11-4013610 NUT (M10) Stainless Steel   2

PART NOTES:

[1] - Alternate part numbers:

802893QQS

802893TMPP

807172Service Part
