4.3L (GEN +) (2 BBL.) GM 262 V-6 - 0L010044 THRU 0M614999 - Intake Manifold And Front Cover

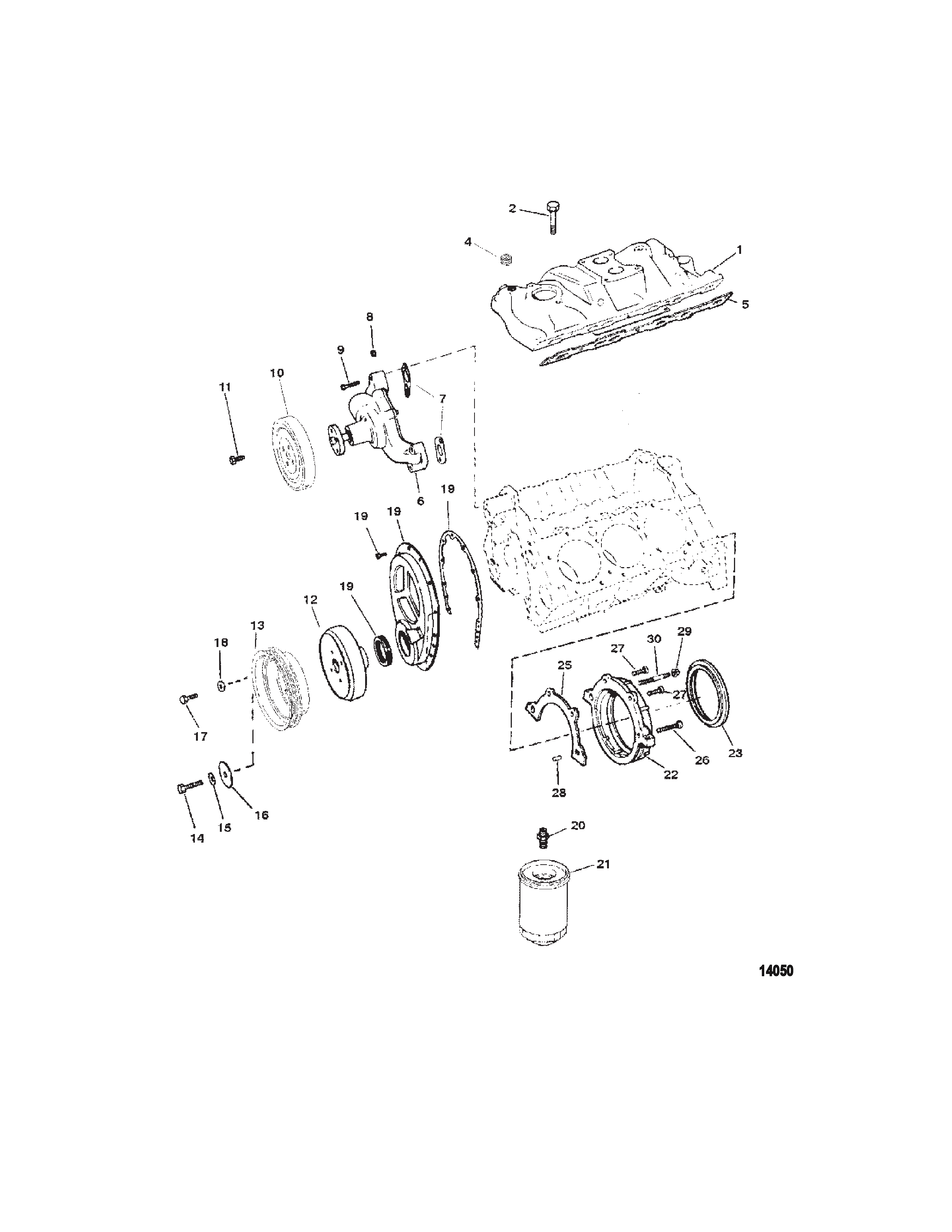

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 OEM: 525-824330T1 MANIFOLD Intake (4 BBL) 1
1 0000 824324T1 MANIFOLD Intake (2 BBL) 1
2 0010 OEM: 525-10-835004 BOLT (.312-18 x 1.75)   8
3 0010 11975 BOLT (3/8-16 x 1.25)   4
4 0022 OEM: 525-22-75983 PLUG   1
5 0027 8243261 GASKET SET   1 [1]
6 0000 850399 PUMP ASSEMBLY Water   1
7 0027 OEM: 525-27-34897, Sierra: 676-18-0891, GLM: 700-31380 GASKET   2 [1]
8 0022 OEM: 525-22-48336 PLUG Water Pump   1
9 0010 OEM: 525-10-32132 SCREW (.375-16 x 1.750)   1
9 0010 OEM: 525-10-47688 SCREW (.375-16 x 2.750)   1
9 0016 35342 STUD (.312-24/.375-16 x 2.5625)   2
10 0000 807729T PULLEY   1
11 0010 OEM: 525-10-47277 SCREW (.312-24 x .750)   4
12 0000 809892 BALANCER Harmonic   1
13 0000 OEM: 530-807730T PULLEY   1
14 0010 32515 SCREW (.437-20 x 2.50)   1
15 0013 OEM: 525-13-39131 LOCKWASHER (.437)   1
16 0012 35332 WASHER   1
17 0010 OEM: 525-10-34352 SCREW (.375-24 x .875)   3
18 0012 OEM: 525-12-34714 WASHER   3
19 0000 809893 TIMING COVER ASSEMBLY Screws, Grommets And Oil Seal Are Not Sold Separately (Use With Out Crankshaft Sensor) 1
19 0000 888777T TIMING COVER ASSEMBLY Screws, Grommets And Oil Seal Are Not Sold Separately (Use With Crankshaft Sensor) 1
20 0000 11972 ADAPTER (With Out Remote Oil Filter) 1
21 0000 41815 FILTER Oil (With Out Remote Oil Filter) 1 [2]
22 0000 804910 RETAINER Seal   1
23 0026 804909 SEAL Oil (GM Block Code 9LK, 9LJ, 0LK, 0LJ 1LJ, 1LK & 2LB)   1 [1]
24 0026 OEM: 525-26-852941 SEAL Oil (GM Block Code 8LK, 8LJ)   1 [1]
25 0027 OEM: 525-27-881715, Sierra: 676-18-0322, GLM: 700-30354 GASKET   1 [1]
26 0010 14243 BOLT (.250-20 x 1.750)   1
27 0010 OEM: 525-10-14242 BOLT (.250-20 x .875)   2
28 0017 OEM: 525-17-14263 PIN Dowel   1
29 0011 OEM: 525-11-11996 NUT   1
30 0016 148271 STUD   1
- 0027 824326A96 GASKET SET Overhaul   1

PART NOTES:

[1] - Component Of Overhaul Gasket Set 824326A96

[2] - Alternate part numbers:

41815Service Part

883702KMPP

883702QQS
