4.3L (GEN +) (2 BBL.) GM 262 V-6 - 0L010044 THRU 0M614999 - Flywheel Housing

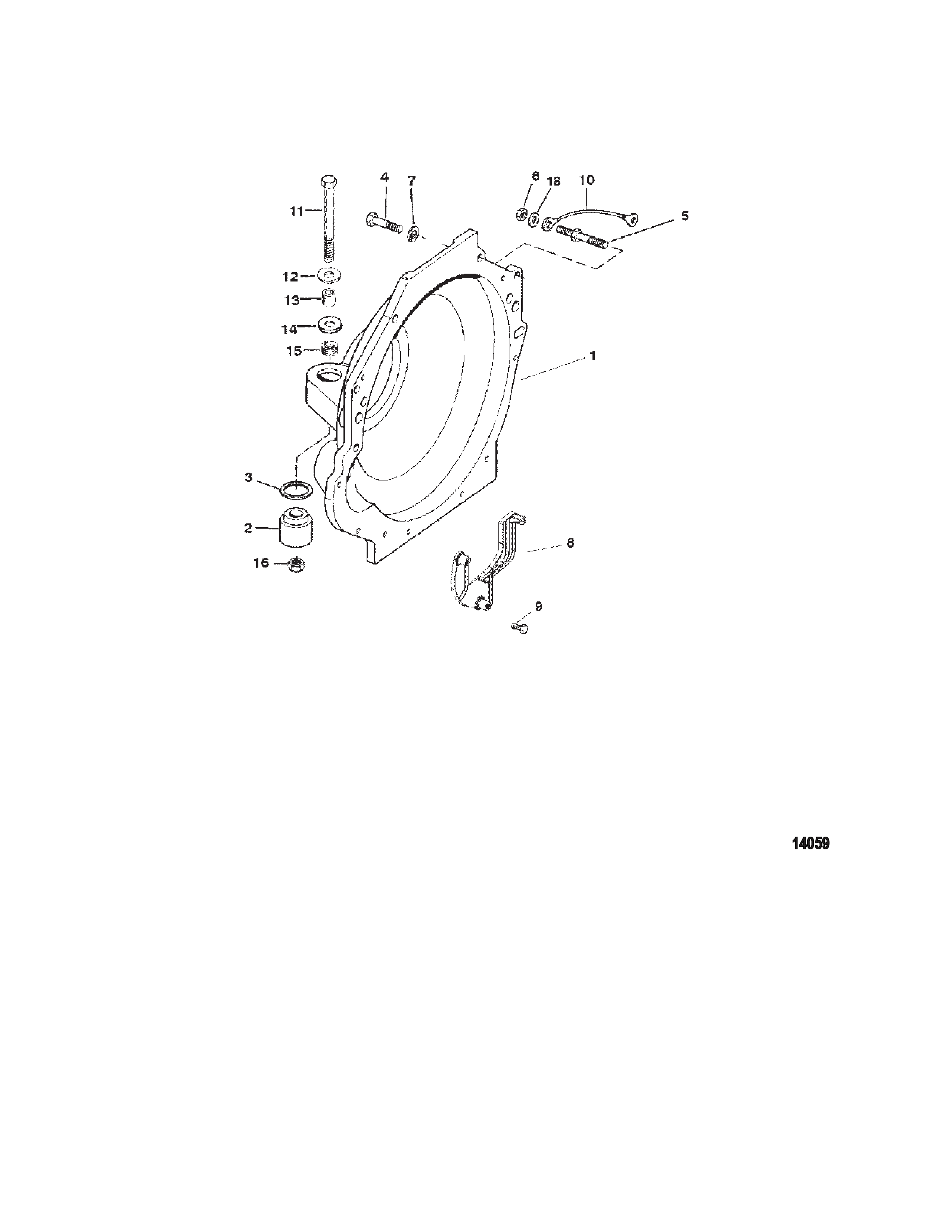

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 OEM: 525-865657A03 HOUSING ASSEMBLY Flywheel   1
2 0000 865329A02 MOUNT KIT Rubber   1
3 0023 OEM: 525-23-99322, GLM: 700-21050 SPACER   2
4 0010 OEM: 525-10-37612, GLM: 700-21755 SCREW (.375-16 x 1.250)   3
4 0010 OEM: 525-10-32132 SCREW (.375-16 x 1.750)   1
4 0010 OEM: 525-10-40001197 SCREW (M10 x 35)   3
4 0010 OEM: 525-10-40001203 SCREW (M10 x 45)   1
5 0016 OEM: 525-16-64066 STUD (.375-16 x 2.750) Special   2
5 0016 OEM: 525-16-861577 STUD Double Ended Metric (M10)   2
6 0011 OEM: 525-11-32219 NUT (.375-16)   2
6 0011 OEM: 525-11-40125100 NUT (M10)   2
7 0013 OEM: 525-13-35048, GLM: 700-21493 LOCKWASHER (.375)   4
8 0000 OEM: 525-807456A2 COVER   1
9 0010 OEM: 525-10-76596 SCREW (.250-20 x 1.250)   2
10 0084 62826A6 CABLE ASSEMBLY Ground (13.00 Inches) Black   1
11 0010 OEM: 525-10-97934, Sierra: 676-18-3729, GLM: 700-19310 SCREW (.500-20 x 5.370) Special   2
12 0012 OEM: 525-12-35777, GLM: 700-19320 WASHER (.5156 x 1.375 x .125) Aluminum   2
13 0023 OEM: 525-23-99299, GLM: 700-19340 SPACER (.520 x .870 x .630)   2
14 0012 OEM: 525-12-32834, Sierra: 676-18-0681, GLM: 700-30020 WASHER (.9375 x 1.750 x .172)   2
15 0013 OEM: 525-13-33734, GLM: 700-19330 LOCKWASHER (.500)   2
16 0011 OEM: 525-11-863332, Sierra: 676-18-3728, GLM: 700-19350 NUT (.500-20) Aluminum   2
17 0011 OEM: 525-11-40125100 NUT (M10)   2
18 0013 OEM: 525-13-400248 LOCKWASHER (M10)   2
