4.3L (GEN +) (2 BBL.) GM 262 V-6 - 0L010044 THRU 0M614999 - Alternator And Brackets (Delco)

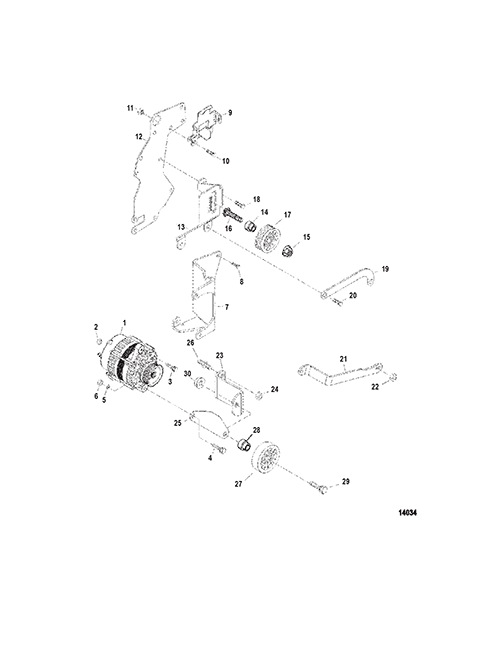

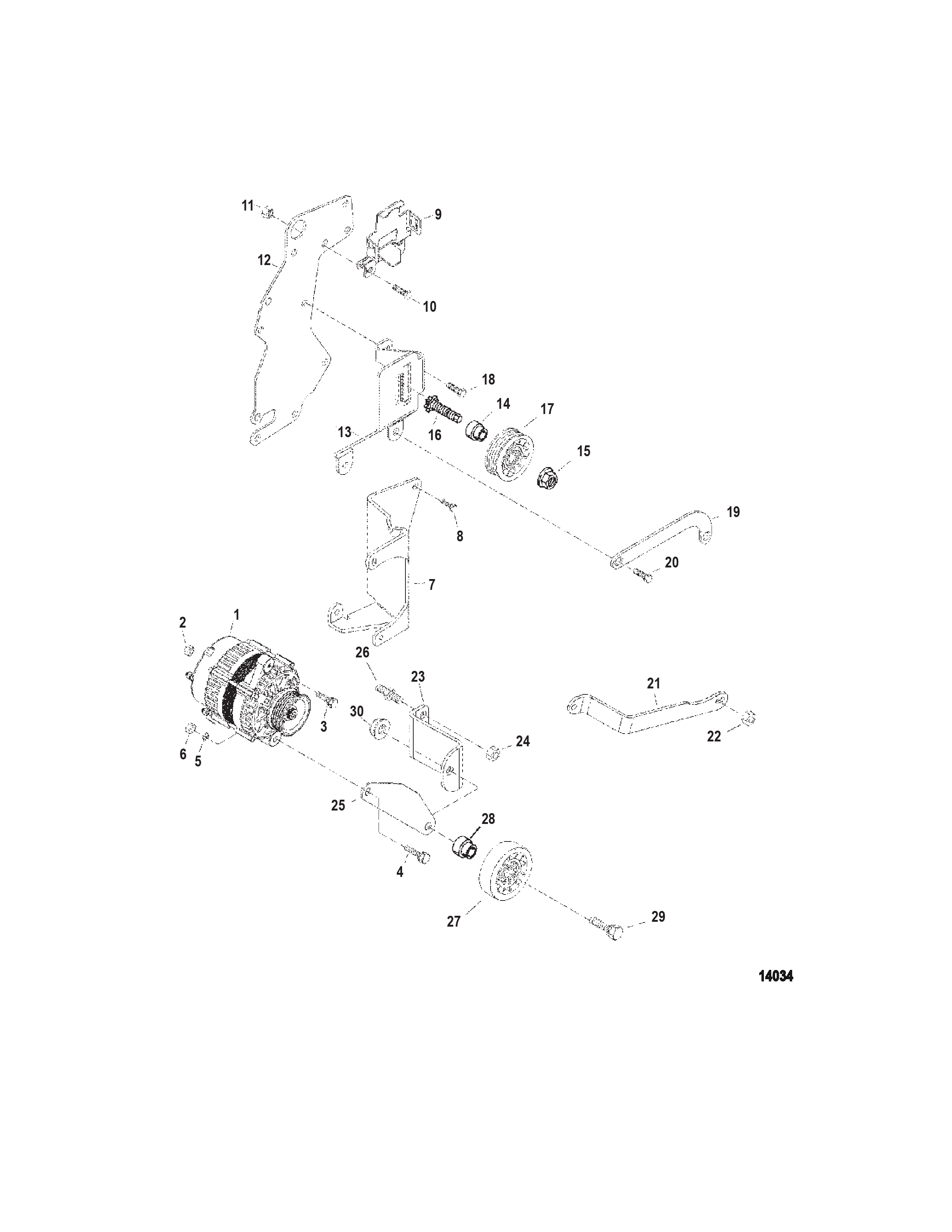

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 862031T ALTERNATOR ASSEMBLY (65 Amp) (With 62 mm Pulley) [0M320024] & Below 1 [1]
1 0000 OEM: 530-863077T, Sierra: 676-18-6298 ALTERNATOR ASSEMBLY Black (65 Amp) (With 50mm Pulley) [0M320025] & Up 1 [2]
2 0011 OEM: 525-11-400212 NUT (M6) Stainless Steel   1
3 0010 OEM: 525-10-40001134 SCREW (M8 x 25)   1
4 0010 OEM: 525-10-828213 SCREW (.312-18 x 1.500) Hex Flange   2
5 0012 OEM: 525-12-57792 WASHER   2
6 0011 OEM: 525-11-26484 NUT (.312-18)   2
7 0000 862055T BRACKET Alternator Mounting   1 [3]
8 0010 OEM: 525-10-98261 SCREW (.375-16 x .750)   3
9 0000 OEM: 525-860065A1 BRACKET KIT Oil Bottle   1
10 0010 OEM: 525-10-98261 SCREW (.375-16 x .750)   6
11 0011 OEM: 525-11-32219 NUT (.375-16)   2
12 0000 862056T BRACKET   1
13 0000 OEM: 525-862083T BRACKET Idler Adjustment   1
14 0000 818380T BUSHING   1
15 0011 OEM: 525-11-859135, GLM: 700-28410 NUT (.437-20) Brass/Nickel Plated   1
16 0043 OEM: 525-43-8183812 PINION STUD (.437-20) Stainless Steel   1
17 0000 OEM: 530-807757T, Sierra: 676-18-6457 PULLEY ASSEMBLY Idler - Black (3.00 Inch Diameter) [0M320024] & Below 1
17 0000 OEM: 530-864625T PULLEY (4.25 Inch Diameter) (With Power Steering) [0M320025] & Up 1
17 0000 OEM: 530-807757T, Sierra: 676-18-6457 PULLEY ASSEMBLY Idler - Black (3.00 Inch Diameter) (Compact Hydraulic Steering) [0M320025] & Up 1
18 0010 OEM: 525-10-34353 SCREW (.375-16 x 1.00)   2
19 0000 OEM: 525-862082T BRACE Power Steering   1 [3]
20 0010 OEM: 525-10-40001188 SCREW (M10 x 20)   1
21 0000 OEM: 525-862778A1 BRACKET (Alpha) 1 [3]
22 0011 OEM: 525-11-29250 NUT (.312-24)   1
23 0000 OEM: 525-862084T BRACKET Idler   1 [3]
24 0011 OEM: 525-11-32219 NUT (.375-16)   2
25 0000 OEM: 525-862085T BRACE Idler Bracket   1 [3]
26 0016 OEM: 525-16-860102 STUD (.375-16 x 1.730) (Bravo) 2
27 0000 818382 PULLEY   1
28 0000 818380T BUSHING   1
29 0010 OEM: 525-10-56393 SCREW (.437-20 x 1.75)   1
30 0011 OEM: 525-11-859135, GLM: 700-28410 NUT (.437-20) Brass/Nickel Plated   1

PART NOTES:

[1] - Alternate part numbers:

862031R01Reman

862031TQS

Part Number Is New And Listed For The First Time


[2] - Alternate part numbers:

863077R01Reman

863077TQS


[3] - Part Number Is New And Listed For The First Time
