4.3L (GEN +) (2 BBL.) GM 262 V-6 - 0L010044 THRU 0M614999 - Exhast Manifold And Exhaust Elbow (Two Piece)

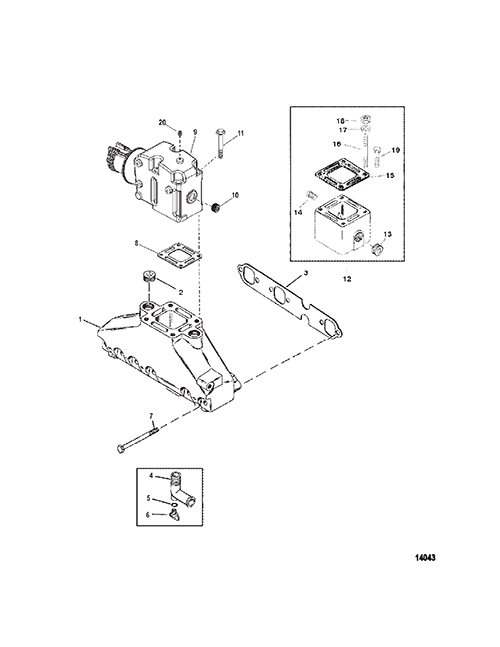

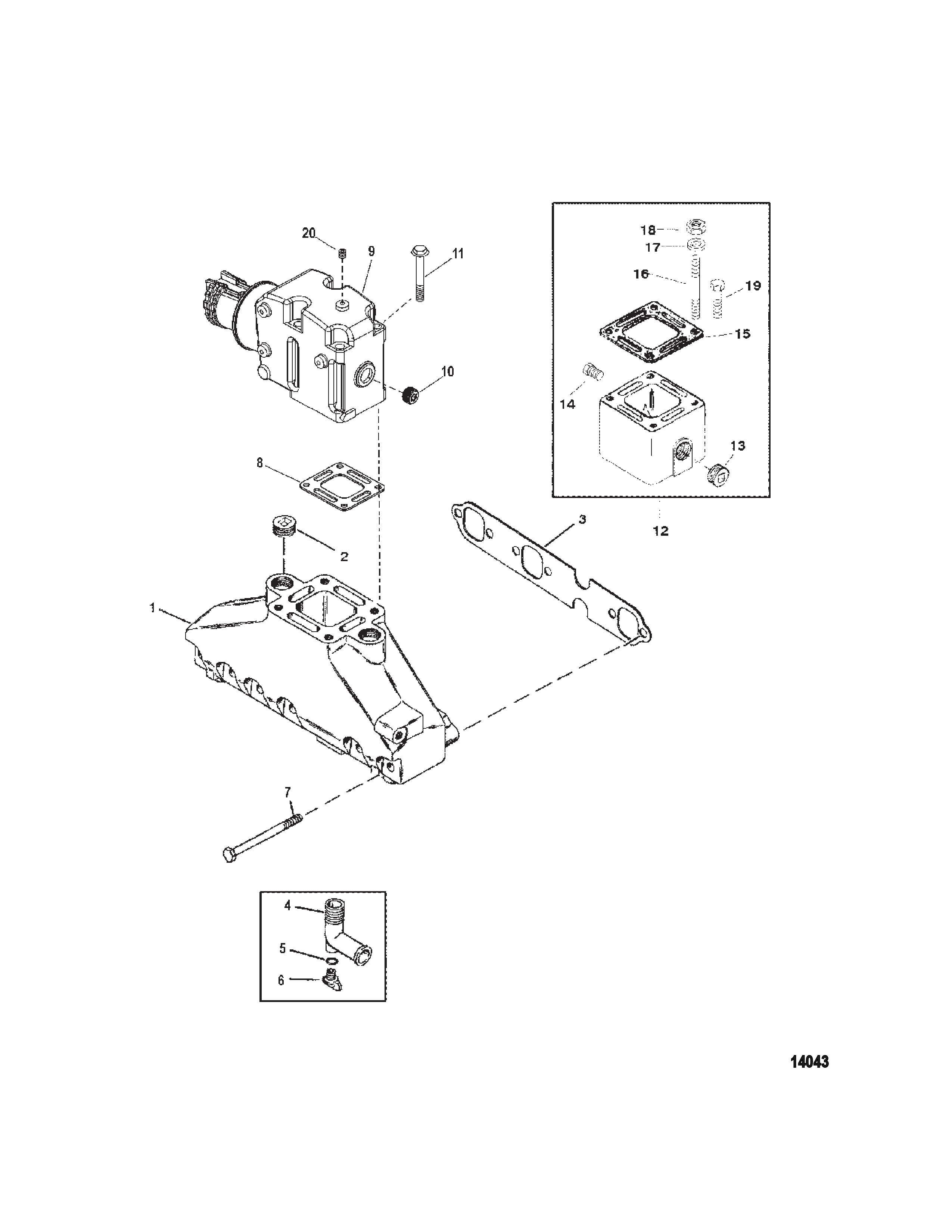

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 OEM: 530-99746A17, Sierra: 676-18-1952-1, GLM: 700-51220 MANIFOLD ASSEMBLY Exhaust   2
2 0022 861187 PLUG (.750-14) Pipe   4
3 0027 OEM: 525-27-99757, Sierra: 676-18-2909, GLM: 700-32170 GASKET   2 [1]
4 0022 806926A1 ELBOW KIT Drain   2
5 0022 806608A1 PLUG KIT (.500-13) Royal Blue   2 [2]
6 0025 32509 O-RING (.489 x .070)   2 [1]
7 0010 OEM: 525-10-53728, GLM: 700-21745 SCREW (.375-16 x 4.75)   12
8 0027 OEM: 530-863726, Sierra: 676-18-2849-1, GLM: 700-32080 GASKET   2
9 0000 807988A2 ELBOW ASSEMBLY Exhaust   2
10 0022 861187 PLUG (.750-14) Pipe   2
11 0010 43749 SCREW (.375-16 x 5.750)   8
12 0000 93320A5 RISER KIT Exhaust (3 Inches)   1
12 0000 93322A7 RISER KIT Exhaust (6 Inches)   1
13 0022 861187 PLUG (.750-14) Pipe   2
14 0022 OEM: 525-22-328022, Sierra: 676-18-4263 PLUG Pipe (.125-27) Brass   2
15 0027 OEM: 530-863726, Sierra: 676-18-2849-1, GLM: 700-32080 GASKET   2
16 0016 11375 STUD (.375 x 9.56) (Use With Three Inch Riser) 8
17 0012 OEM: 525-12-46132 WASHER (Use With Three Inch Riser) 8
18 0011 OEM: 525-11-46335 NUT (.375-24) (Use With Three Inch Riser) 8
19 0010 12244 SCREW (.375-16 x 1.00) (Use With SixInch Riser) 8
20 0022 OEM: 525-22-73379, GLM: 700-22379 PLUG (.250-18)   2
NS 0010 OEM: 525-10-24323, GLM: 700-22336 SET SCREW (.250-20 x 1.25)   3
- 0027 824326A96 GASKET SET Overhaul   1

PART NOTES:

[1] - Component Of Overhaul Gasket Set 824326A96

[2] - Alternate part numbers:

806608A 1Service Part

806608Q01QS
