525 EFI - Serial 0M900146 Thru 0M953619 - Intake Plenum And Components

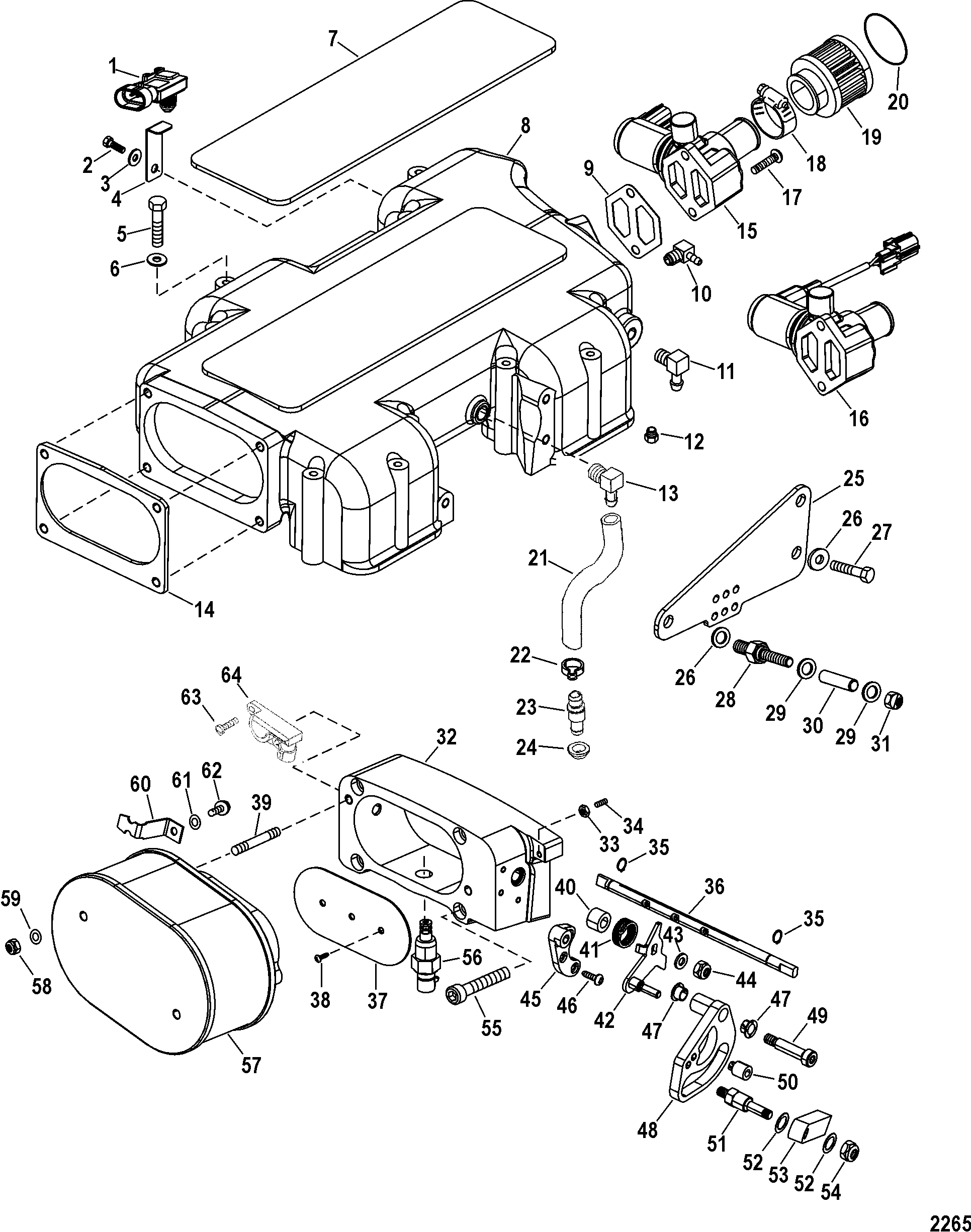

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Closed Cooling System Components
- Driveshaft And Tailstock (Driveline)
- Driveshaft Extension Components (Bravo)
- Electrical Components (Ignition)
- Electrical Components (Starter And Alternator Mount)
- Electrical Components (Starter Assembly)
- Engine Components (Crankshaft - Pistons - Connecting Rods)
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission Models)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-843073A03)
- Intake Manifold And Components
- Intake Plenum And Components
- Mount Plates - Engine
- Oil Cooler (Transmission)
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Power-Assisted Steering Components (849906A15)
- Power-Assisted Steering Components (Design I - 849906T9)
- Pump-Motor Assembly (865380A13)
- Pump-Motor Assembly (Design I - 14336A20)
- Pump-Motor Assembly (Design II - 14336A25)
- Pump-Motor Assembly (Design III - 14336A31)
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components (Bravo - Design I)
- Shift Bracket Components (Bravo)
- Transmission And Components (Driveline)
- Transmission And Components (Six Drive - Bravo)
- Trim Pump Assembly (14336 Series)
- Trim Pump Assembly (865380 Series)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 854445 | 676-9-33603 | SENSOR, MAP, Manifold Absolute Pressure | 1 | |||||
| 2 | 10-847401 | SCREW, (#10-24 x .380) | 1 | ||||||
| 3 | 12-30164 | WASHER, (.192 x .375 x .0312) Stainless Steel | 1 | ||||||
| 4 | 8M0061478 | BRACKET, MAP Sensor Mount | 1 | 840981 | |||||
| 5 | 10-71319 | SCREW, (.250-20 x 3.750) | 12 | ||||||
| 6 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 12 | ||||||
| 7 | 38-840944 | NAMEPLATE, Top Of Plenum | 1 | ||||||
| 8 | 840922T03 | PLENUM ASSEMBLY, Blue | 1 | ||||||
| 9 | 27-863112 | GASKET, Idle Air Valve To Plenum | 1 | 2 | |||||
| 10 | 22-196881 | FITTING, (90 Degree) | 1 | ||||||
| 11 | 22-73817 | CONNECTOR, (90 Degree) | 1 | ||||||
| 12 | 22-328022 | PLUG, Pipe (.125-27) Brass | 1 | ||||||
| 13 | 22-687271 | 676-9-38024 | FITTING, (.250-18) 90 Degree - Brass | 1 | |||||
| 14 | 27-841156 | GASKET, Throttle Body To Plenum | 1 | 2 | |||||
| 15 | 892313T02 | VALVE KIT, Idle Air - Blue | 1 | 841117A01 | Design I | ||||
| 16 | 892313T02 | VALVE ASSEMBLY, Idle Air - Blue | 1 | Design II | |||||
| 17 | 10-64074 | SCREW, (.250-28 x .620) | 2 | ||||||
| 18 | 54-841213 | CLAMP, Worm Gear | 1 | ||||||
| 19 | 841168T | ARRESTOR, Idle Air | 1 | ||||||
| 20 | 37-841211 | DECAL, Idle Air Arrestor | 1 | ||||||
| 21 | 32-844172019 | HOSE, (7.00 Inches) | 1 | ||||||
| 22 | 54-848764 | CLAMP, (21 mm) | 1 | ||||||
| 23 | 848578 | VALVE ASSEMBLY, Crankcase Vent | 1 | ||||||
| 24 | 25-811553 | GROMMET, Intake Manifold | 1 | 2,5 | |||||
| 25 | 843447 | PLATE, Throttle Cable Anchor | 1 | ||||||
| 26 | 12-814806 | 700-21662 | WASHER, (.344 x .688 x .065) Stainless Steel | 3 | |||||
| 27 | 10-90285 | SCREW, (.312-18 x .625) | 2 | ||||||
| 28 | 16-843445 | STUD, (.250-28/.312-18 x 2.070) | 1 | ||||||
| 29 | 12-69056 | WASHER, (.255 x .625 x .0312) | 2 | 12-21631 | |||||
| 30 | 23-31866 | SPACER, (.256 x .313 x .625) | 1 | ||||||
| 31 | 11-826709109 | 525-11-826709109 | NUT, (.250-28) Stainless Steel | 1 | |||||
| 32 | 840920T04 | THROTTLE BODY ASSEMBLY, Blue, Also Includes Gasket p-47276-gasket-mercruiser-27-841156.aspx | 1 | ||||||
| 33 | 11-68219 | NUT, (#10-32) Stainless Steel | 1 | ||||||
| 34 | 10-843444 | SET SCREW, (#10-32) | 1 | ||||||
| 35 | 53-92170 | RING, Snap | 2 | ||||||
| 36 | 843423 | SHAFT, Throttle | 1 | ||||||
| 37 | 841219 | BLADE, Throttle | 1 | ||||||
| 38 | 10-840118 | SCREW, (#8-32 x .380) | 3 | ||||||
| 39 | 16-8M0034442 | STUD, (.312-24 x 6.375) | 2 | 16-843427 | |||||
| 40 | 23-849992 | SPACER, Throttle Body | 1 | ||||||
| 41 | 24-844226 | SPRING, Throttle Return | 1 | ||||||
| 42 | 8434381 | ARM, Cam Follower | 1 | ||||||
| 43 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 1 | ||||||
| 44 | 11-826709113 | NUT, (.375-24) Stainless Steel | 1 | ||||||
| 45 | 843439 | BRACKET, Pivot Mount | 1 | ||||||
| 46 | 10-843443 | SCREW, (#10-32 x .630) | 3 | ||||||
| 47 | 23-26954 | BUSHING | 2 | ||||||
| 48 | 8M0027533 | CAM, Throttle - Blue, Throttle | 1 | 843452 | |||||
| 49 | 10-843442 | SHOULDER SCREW, .312-18 x 1.750) | 1 | ||||||
| 50 | 67748 | ROLLER | 1 | ||||||
| 51 | 16-843446 | STUD, (.250-20/.250-28), Throttle Cable | 1 | ||||||
| 52 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 2 | ||||||
| 53 | 842459 | END, Cable | 1 | ||||||
| 54 | 11-826709109 | 525-11-826709109 | NUT, (.250-28) Stainless Steel | 1 | |||||
| 55 | 10-844997 | SCREW, (M8 x 60) | 4 | ||||||
| 56 | 805223T | SENSOR, Intake Air Temperature | 1 | ||||||
| 57 | 840921T02 | ARRESTOR ASSEMBLY, Flame | 1 | 840921T01 | |||||
| 58 | 11-826709111 | NUT, (.312-24) Stainless Steel | 2 | ||||||
| 59 | 12-70132 | WASHER, (.323 x .563 x .063) Stainless Steel | 2 | ||||||
| 60 | 843121 | BRACKET, Vent Tube | 1 | ||||||
| 61 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 1 | ||||||
| 62 | 10-85486 | SCREW, (.250-20 x .380) Stainless Steel | 1 | ||||||
| 63 | 10-805400 | SCREW, (#8-32 x .500) Stainless Steel | 2 | ||||||
| 64 | 849903 | SENSOR, Throttle Position | 1 | ||||||
| - | 27-843073A06 | GASKET/SEAL SET, Engine Overhaul | 1 | 27-843073A03 | NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing | ||||
| - | 841178A1 | PARTIAL ENGINE ASSEMBLY | 1 |
