525 EFI - Serial 0M900146 Thru 0M953619 - Engine Components (Cylinder Block And Camshaft)

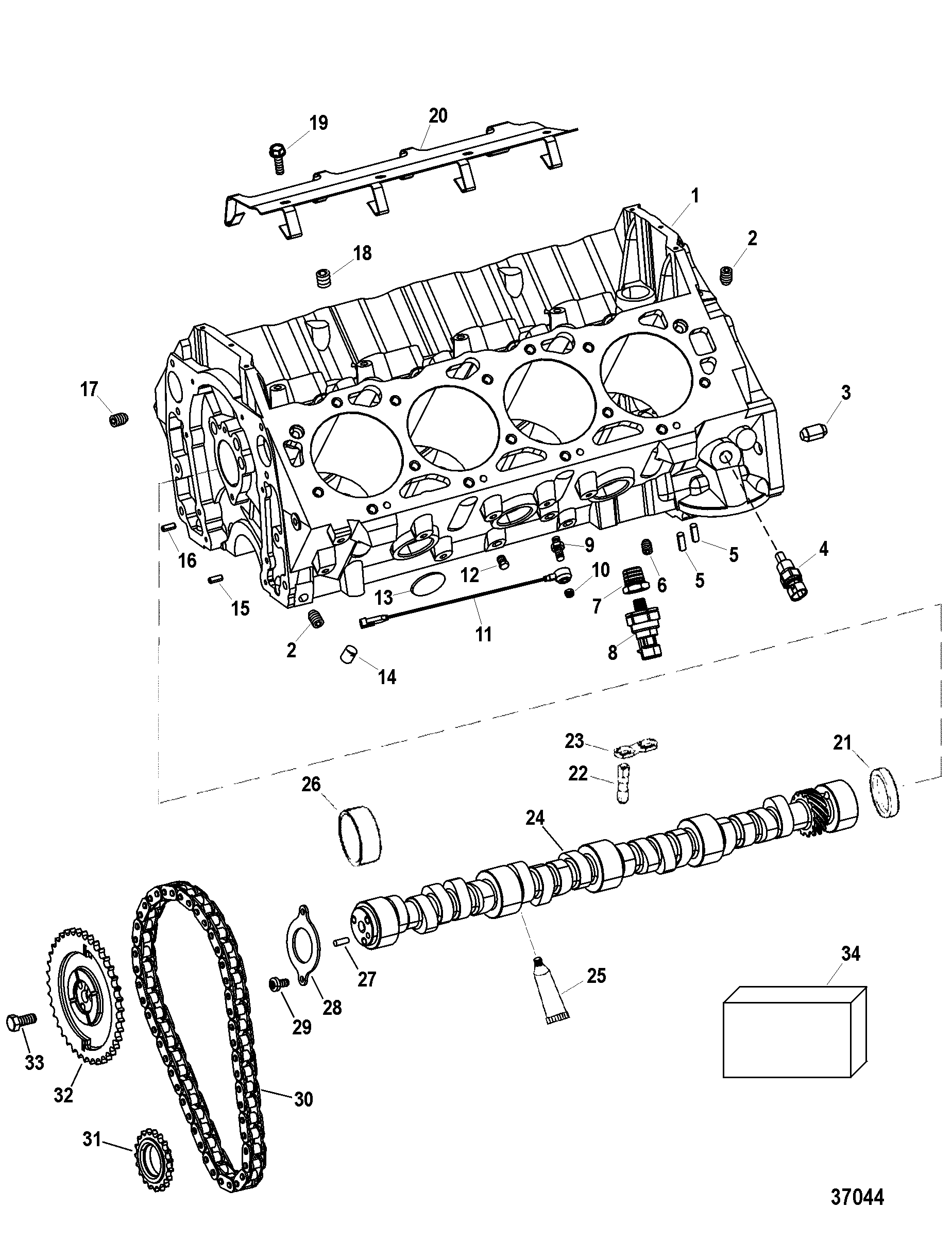

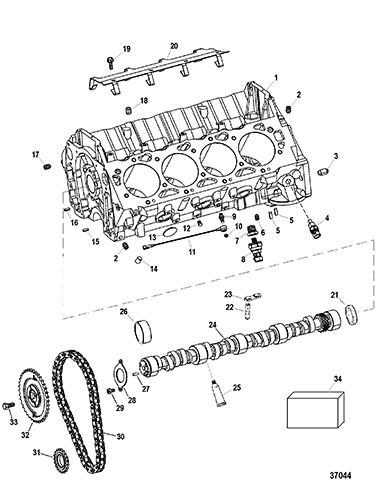

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Closed Cooling System Components
- Driveshaft And Tailstock (Driveline)
- Driveshaft Extension Components (Bravo)
- Electrical Components (Ignition)
- Electrical Components (Starter And Alternator Mount)
- Electrical Components (Starter Assembly)
- Engine Components (Crankshaft - Pistons - Connecting Rods)
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission Models)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-843073A03)
- Intake Manifold And Components
- Intake Plenum And Components
- Mount Plates - Engine
- Oil Cooler (Transmission)
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Power-Assisted Steering Components (849906A15)
- Power-Assisted Steering Components (Design I - 849906T9)
- Pump-Motor Assembly (865380A13)
- Pump-Motor Assembly (Design I - 14336A20)
- Pump-Motor Assembly (Design II - 14336A25)
- Pump-Motor Assembly (Design III - 14336A31)
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components (Bravo - Design I)
- Shift Bracket Components (Bravo)
- Transmission And Components (Driveline)
- Transmission And Components (Six Drive - Bravo)
- Trim Pump Assembly (14336 Series)
- Trim Pump Assembly (865380 Series)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes | |
| 1 | 841178A1 | PARTIAL ENGINE ASSEMBLY | 1 | NOTE: Bravo Models With Driveline Also Require Pilot Bushing Part Number | 23-823108 | |||||
| 2 | 22-32561 | PLUG, Pipe - Allen Head (.250-18), Oil Gallery Rear Cam Plugs | 3 | 5 | ||||||
| 3 | 17-843379 | PIN, Dowel (.6206/.6211 x 1.20), Flywheel Housing | 2 | 5 | ||||||
| 4 | 805218T | 676-9-42402 | SENSOR, Coolant | 1 | ||||||
| 5 | 17-843378 | PIN, Dowel (1/4 In. Diameter) (.250) Bottom Of Block | 2 | 17-35312 | 5 | |||||
| 6 | 22-36373 | PLUG, (.375-18) Hex - Steel, Bottom Of Block Oil Plug | 1 | 5 | ||||||
| 6 | 22-36373 | PLUG, (.375-18) Hex - Steel, Rear Of Block Oil Plugs | 2 | 5 | ||||||
| 7 | 22-64013 | FITTING, (.375 Male To .125 Female) | 1 | |||||||
| 8 | 881879T11 | SENSOR, Pressure (0 - 100 PSI), Oil Pressure | 1 | 881879011 | ||||||
| 9 | 16-862915 | STUD, (.250-18/M10 Special), Knock Sensor Assembly Mount | 2 | |||||||
| 10 | 11-826292 | NUT, (M10) Brass/Nickel Plated | 2 | |||||||
| 11 | 878187 | SENSOR ASSEMBLY, Knock | 2 | |||||||
| 12 | 22-36382 | 700-21887 | FITTING, (.250-18 x .62) Brass, Lower Side Of Block | 2 | 5 | |||||
| 13 | 19-34270 | EXPANSION PLUG, (1.625) | 6 | 5 | ||||||
| 14 | 17-845758 | PIN, Dowel, .660 Relaxed Outside Diameter x .500 | 4 | 5 | ||||||
| 15 | 17-843143 | PIN, Spring, Port Side - Timing Cover | 1 | 5 | ||||||
| 16 | 17-843378 | PIN, Dowel (1/4 In. Diameter) (.250) Timing Cover | 1 | 17-35312 | 5 | |||||
| 17 | 845606 | PLUG, (.250-18 x .410) Allen Head With Hole, Oil Gallery | 2 | 5 | ||||||
| 18 | 22-328022 | PLUG, Pipe (.125-27) Brass, Oil Gallery | 3 | 5 | ||||||
| 19 | 10-841389 | SCREW, (.312-18 x .620) | 4 | 5 | ||||||
| 20 | 8M0050807 | RETAINER, Lifter Guide | 1 | 845755 | 5 | |||||
| 21 | 19-94140 | EXPANSION PLUG | 1 | 5 | ||||||
| 22 | 849947T01 | LIFTER | 16 | 849947T | 5 | |||||
| 23 | 845754 | GUIDE, Lifter | 8 | 5 | ||||||
| 24 | 8M0043065 | CAMSHAFT | 1 | 2409-840919T | 5 | |||||
| 25 | 92-15875 | LUBE, Camshaft (8 Ounces) | AR | |||||||
| 26 | 23-85684 | BEARING SET | 1 | 5 | ||||||
| 27 | 17-843378 | PIN, Dowel (1/4 In. Diameter) (.250) | 1 | 17-35312 | 5 | |||||
| 28 | 845941 | RETAINER, Gear Thrust | 1 | 5 | ||||||
| 29 | 10-845943 | SCREW, (.250-20 x .500) | 2 | 5 | ||||||
| 30 | 8M8023355 | TIMING SET KIT | 1 | 5 | ||||||
| 31 | NSS | NOT SOLD SEPARATE, Crankshaft Sprocket | 1 | This Part is not sold separately 5 | ||||||
| 32 | NSS | NOT SOLD SEPARATE, Camshaft Sprocket | 1 | This Part is not sold separately 5 | ||||||
| 33 | 10-845942 | SCREW, (.312-18 x .750) | 3 | 5 | ||||||
| 34 | 27-843073A06 | GASKET/SEAL SET, Engine Overhaul | 1 | 27-843073A03 | NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
