496 Mag Base Model - Serial 0M025000 Thru 0M687082 - Remote Oil System

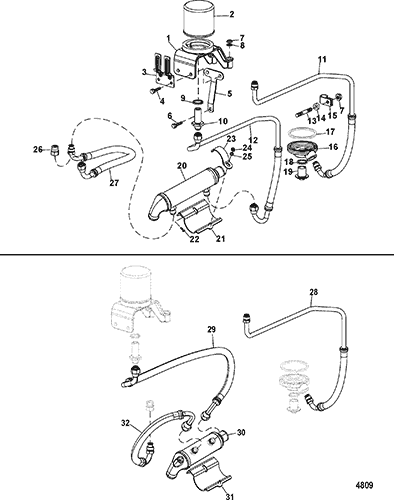

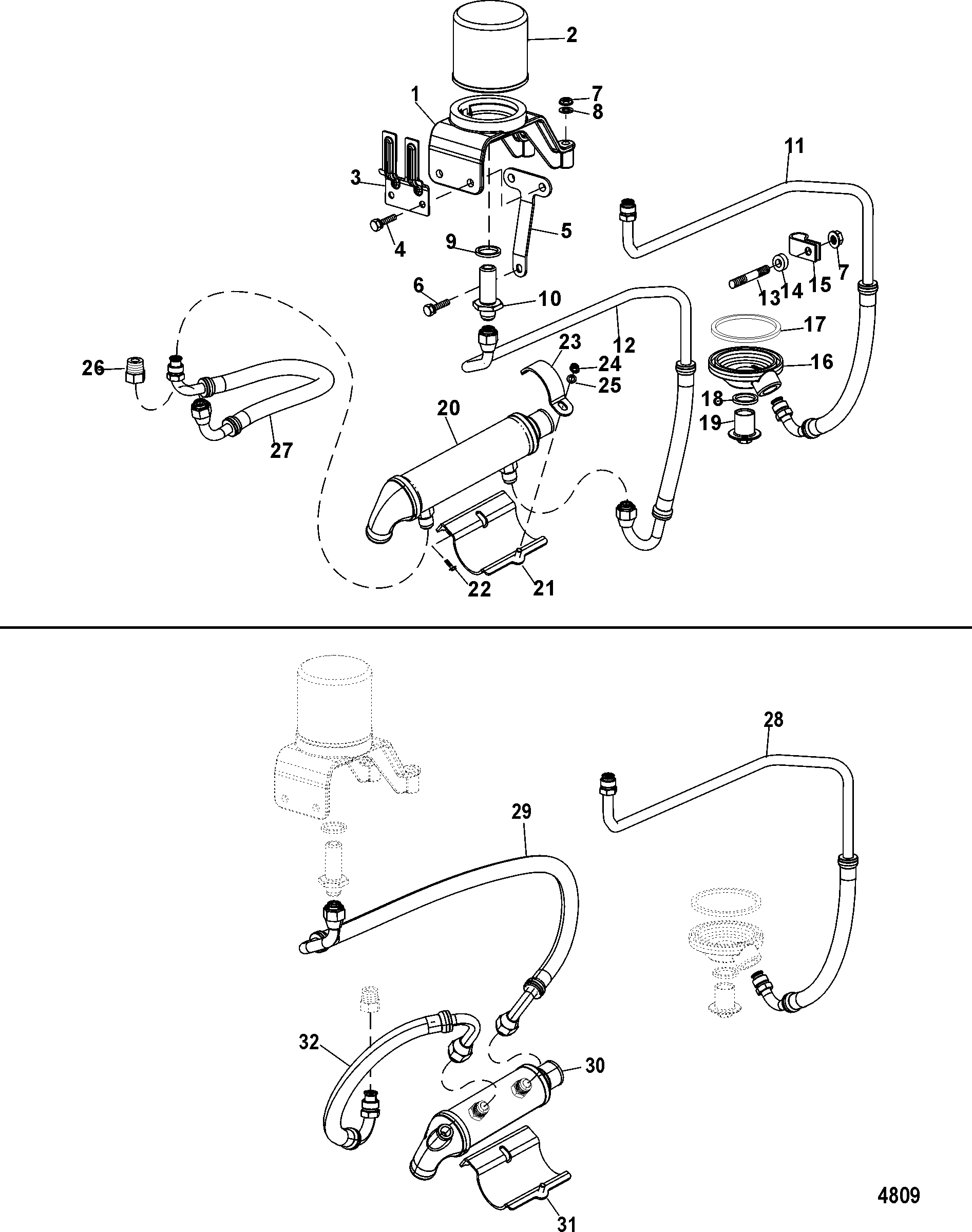

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Block-Camshaft And Pistons
- Block-Crankshaft, Oil Pump, And Front Cover
- Closed Cooling System
- Cylinder Head
- Drive Reservoir And Bracket
- Engine Cover
- Engine Mounts
- Exhaust Manifold (With Water Rail), Elbow, And Riser
- Exhaust Manifold (W-O Water Rail), Elbow, And Riser
- Flywheel Housing
- Fuel Filter And Boost Pump
- Fuel Pump And Fuel Cooler
- Gasket Set Components (27-883231A1), Engine
- Gasket Set Components (27-889924A01), Overhaul
- Intake Manifold
- Lifting Brackets And Wiring Harness
- Mercathode
- Oil Pan And Drain System
- Pcm And Bracket
- Power Steering
- Raw Water Cooling System 1 (0M095324 And Below)
- Raw Water Cooling System 2 (0M095325 And Up)
- Remote Oil System
- Seawater Pump
- Shift Bracket (Digital Throttle-Shift)
- Shift Bracket (Mechanical Shift)(0M659999 And Below)
- Shift Bracket (Mechanical Shift)(0M660000 And Up)
- Smartcraft Sensors And Harnesses
- Starter And Alternator
- Throttle Body (Digital Throttle-Shift)
- Throttle Body (Mechanical Throttle-Shift)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 862342T | BRACKET, Remote Oil Filter | 1 | ||||||
| 2 | 35-866340Q03 | 676-9-57825 | FILTER, Oil | 1 | 35-802885Q | ||||
| 3 | 863119 | BRACKET, Power Steering Reservoir | 1 | ||||||
| 4 | 10-4000354 | SCREW, (M8 x 30) | 2 | ||||||
| 5 | 8629102 | BRACKET, Support | 1 | ||||||
| 6 | 10-4010716 | SCREW, (M8 x 16), Flange | 1 | ||||||
| 7 | 11-4002030 | NUT, (M8) | 3 | ||||||
| 8 | 12-12038 | WASHER | 3 | ||||||
| 9 | 26-42077 | SEAL | 1 | 2,3 | |||||
| 10 | 22-806328 | FITTING, Oil Adaptor | 1 | ||||||
| 11 | 32-8628641 | HOSE, Filter to Adaptor | 1 | SN# 0M095324 & Below | |||||
| 12 | 32-8628651 | HOSE, Filter to Cooler | 1 | SN# 0M095324 & Below | |||||
| 13 | 16-424632 | STUD, (M8 x 37.1) | 1 | ||||||
| 14 | 23-34948 | SPACER | 1 | ||||||
| 15 | 54-475451 | CLIP | 2 | ||||||
| 16 | 862870T | ADAPTOR, Oil Filter | 1 | ||||||
| 17 | 26-862957 | SEAL, Oil Filter Adaptor | 1 | 2,3 | |||||
| 18 | 26-42077 | SEAL, Swivel Tube | 1 | 2,3 | |||||
| 19 | 22-862958 | FITTING, Oil Filter Adaptor | 1 | ||||||
| 20 | 861946T | COOLER, Oil | 1 | SN# 0M095324 & Below | |||||
| 21 | 862343T1 | BRACKET, Oil Cooler | 1 | 8623431 | This Part is NLA from Mercruiser. SN# 0M095324 & Below | ||||
| 22 | 10-4000327 | SCREW, (M6 x 14) | 2 | ||||||
| 23 | 807445T | CLAMP, Cooler Bracket | 1 | ||||||
| 24 | 11-401366 | NUT, (M6) Stainless Steel | 1 | ||||||
| 25 | 12-22937 | WASHER | 1 | ||||||
| 26 | 22-805563 | CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare) | 1 | ||||||
| 27 | 32-8628661 | HOSE | 1 | SN# 0M095324 & Below | |||||
| 28 | 32-863899 | HOSE, Oil, Filter to Adaptor | 1 | SN# 0M095325 & Up | |||||
| 29 | 32-863900 | HOSE, Oil, Filter to Cooler | 1 | SN# 0M095325 & Up | |||||
| 30 | 863904T | COOLER, Oil | 1 | SN# 0M095325 & Up | |||||
| 31 | 863905T | BRACKET, Oil Cooler | 1 | SN# 0M095325 & Up | |||||
| 32 | 32-863915 | HOSE, Oil, Cooler to Engine | 1 | SN# 0M095325 & Up |
