200 PRO VERADO 4-STROKE 6 CYL - Serial 2B034840 Thru 2B144122 - Power Trim Components

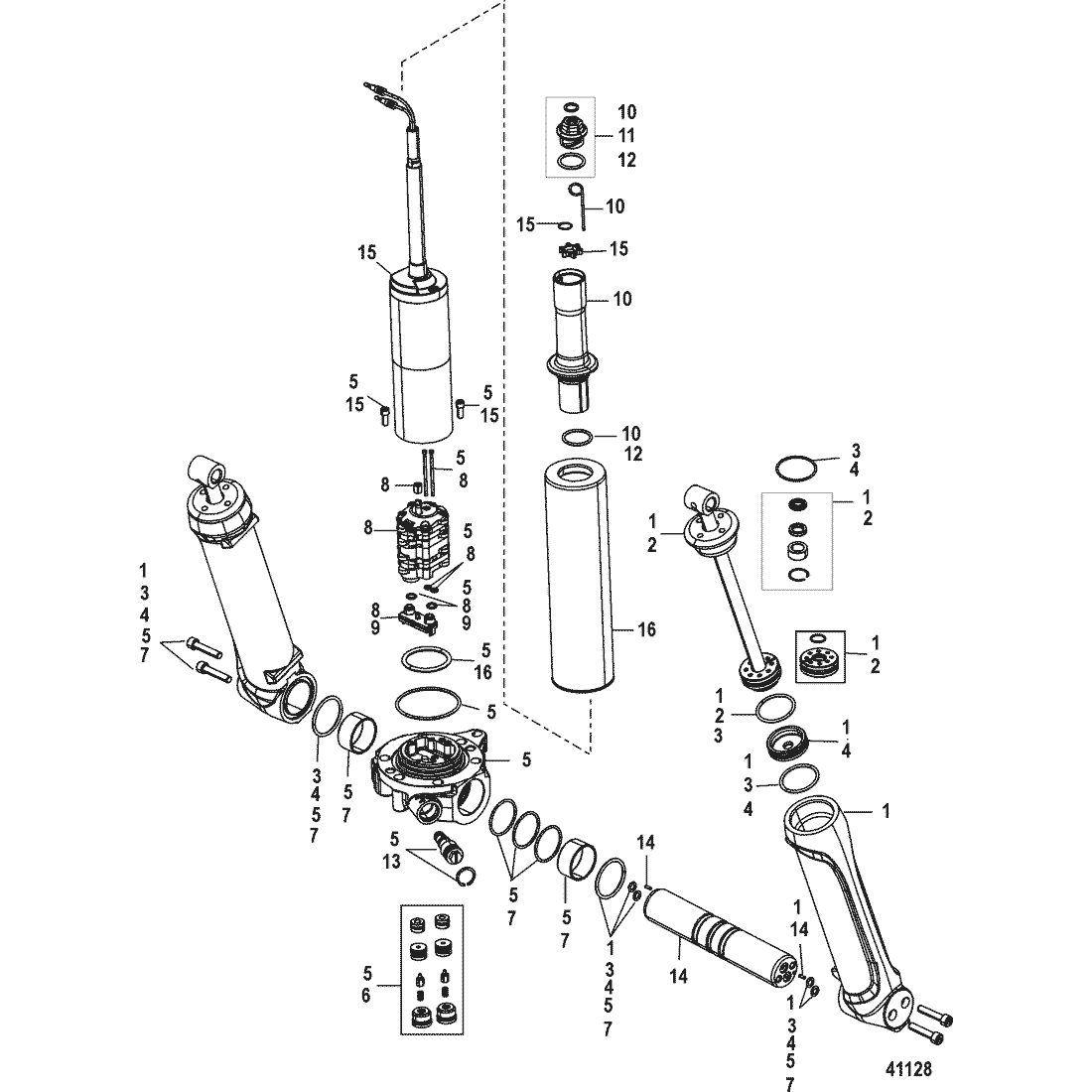

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold Hose Routings
- Charge Cooler/Intake Manifold(Gen I) End Cap Not Serviced
- Charge Cooler/Intake Manifold(Gen II) End Cap Serviced
- Cowl Latching
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Driveshaft Housing
- Electrical Box Components
- Fuel Supply Module
- Gear Housing(Driveshaft)
- Gear Housing, Propeller Shaft 2B026816 and below
- Gear Housing, Propeller Shaft 2B026817 and up
- Ground Cable Kit(899712A01)
- Induction Components
- Mercathode Kit
- Mount Cradle
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Power Trim/Steering Cylinder
- Powerhead Gasket Set Components
- Pump Kit-Power Steering(4 thru 24 Feet)
- Rear Cowl
- Starboard Cylinder Block/Oil Cooler(1B830815 and Below)
- Starboard Cylinder Block/Oil Cooler(1B830816 and Above)
- Starter Motor
- Steering Helm Kit-Standard(892557A02, 892380A02, 892558A02)
- SuperCharger
- Tools
- Top Cowl
- Upper Shift Components
- Water Separator Filter Kit, 886638A01
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 896156A01 | TRIM CYLINDER KIT | 1 | ||||||
| 2 | 896157A01 | TRIM ROD KIT | 1 | ||||||
| 3 | 896158A01 | O-RING KIT | 1 | ||||||
| 4 | 896159A01 | PISTON KIT | 1 | ||||||
| 5 | 896166A01 | MANIFOLD KIT, Trim | 1 | ||||||
| 6 | 896165A01 | CHECK KIT, Trim PO | 1 | ||||||
| 7 | 896160A01 | O-RING KIT | 1 | ||||||
| 8 | 896163A01 | PUMP KIT, Trim | 1 | ||||||
| 9 | 896164A01 | TRIM FILTER KIT | 1 | ||||||
| 10 | 896162A01 | TRIM NECK KIT | 1 | ||||||
| 11 | 25-895854A01 | O-RING KIT | 1 | ||||||
| 12 | 19-893419 | CAP KIT | 1 | ||||||
| 13 | 893420A01 | MANUAL RELEASE KIT | 1 | ||||||
| 14 | 17-893408A01 | PIN KIT, Trim | 1 | ||||||
| 15 | 896161A02 | TRIM MOTOR KIT | 1 | ||||||
| 16 | 896167A01 | RESERVOIR KIT | 1 |
