200 PRO VERADO 4-STROKE 6 CYL - Serial 2B034840 Thru 2B144122 - Rear Cowl

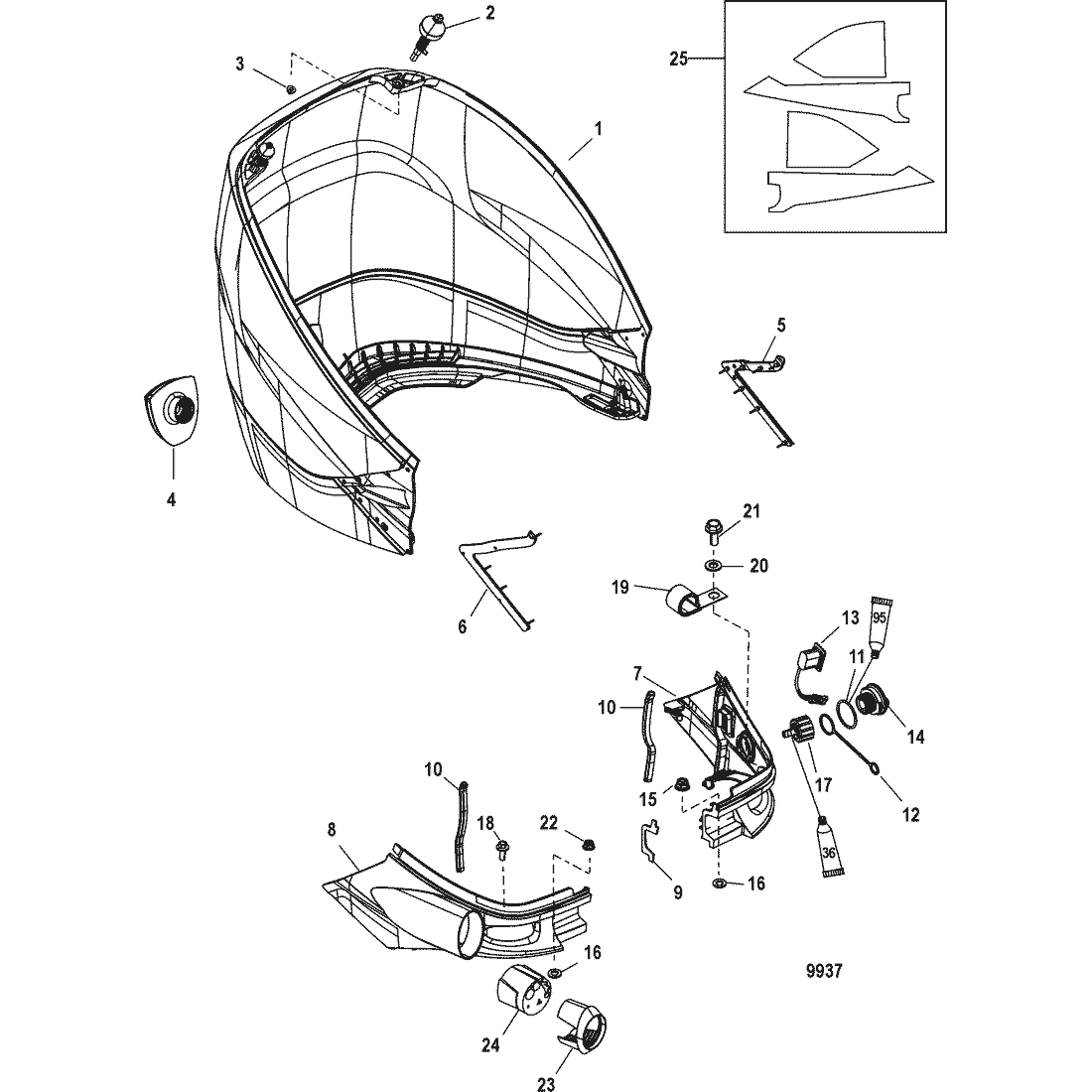

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold Hose Routings
- Charge Cooler/Intake Manifold(Gen I) End Cap Not Serviced
- Charge Cooler/Intake Manifold(Gen II) End Cap Serviced
- Cowl Latching
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Driveshaft Housing
- Electrical Box Components
- Fuel Supply Module
- Gear Housing(Driveshaft)
- Gear Housing, Propeller Shaft 2B026816 and below
- Gear Housing, Propeller Shaft 2B026817 and up
- Ground Cable Kit(899712A01)
- Induction Components
- Mercathode Kit
- Mount Cradle
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Power Trim/Steering Cylinder
- Powerhead Gasket Set Components
- Pump Kit-Power Steering(4 thru 24 Feet)
- Rear Cowl
- Starboard Cylinder Block/Oil Cooler(1B830815 and Below)
- Starboard Cylinder Block/Oil Cooler(1B830816 and Above)
- Starter Motor
- Steering Helm Kit-Standard(892557A02, 892380A02, 892558A02)
- SuperCharger
- Tools
- Top Cowl
- Upper Shift Components
- Water Separator Filter Kit, 886638A01
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 100-8M0100175 | COWL ASSEMBLY, Rear, Black (WITHOUT DECALS) | 1 | 885358T04 | |||||
| 2 | 17-888961A01 | PIN ASSEMBLY | 2 | ||||||
| 3 | 11-892233 | NUT, (M6) Stainless Steel | 4 | ||||||
| 4 | 885360 | IDLE RELIEF | 1 | ||||||
| 5 | 893343001 | SEAL, Port | 1 | ||||||
| 6 | 893344001 | SEAL, Starboard | 1 | ||||||
| 7 | 8M0100172 | INTAKE, Air - Starboard/Port | 1 | 8M0045334 | |||||
| 8 | 8M0100172 | INTAKE, Air - Starboard/Port | 1 | 8M0045334 | |||||
| 9 | 27-892315 | GASKET | 1 | ||||||
| 10 | 8M0043266 | SEAL | 2 | 897125 | |||||
| 11 | 25-888957 | O-RING | 1 | ||||||
| 12 | 889823001 | TETHER | 1 | ||||||
| 13 | 87-8M0042300 | SWITCH, Trim | 1 | 896620001 | |||||
| 14 | 22-888958001 | PLUG, Flush | 1 | ||||||
| 15 | 11-892233 | NUT, (M6) Stainless Steel | 1 | ||||||
| 16 | 12-4002316 | WASHER | 2 | ||||||
| 17 | 22-885361A01 | FITTING ASSEMBLY, Flush | 1 | ||||||
| 18 | 10-4006731 | SCREW, (M6 x 16) | 1 | ||||||
| 19 | 54-858951A01 | CLAMP KIT | 1 | ||||||
| 20 | 12-4002316 | WASHER | 1 | ||||||
| 21 | 10-4006731 | SCREW, (M6 x 16) | 1 | ||||||
| 22 | 11-892233 | NUT, (M6) Stainless Steel | 1 | ||||||
| 23 | 8M0043519 | ADAPTOR | 1 | 895316 | |||||
| 24 | 25-897169 | GROMMET | 1 | ||||||
| 25 | 8M4501634 | SOUND BLANKET KIT, Component of 885358T04 | 1 | ||||||
| - | 37-8M0052110 | DECAL SET, Mercury Pro Verado, Cowl, With Out Horse Power Decals | 1 | ||||||
| - | 37-8M0088739 | DECAL, HORSEPOWER , 200 PRO, Top of Cowl | 1 | ||||||
| - | 37-8M0088740 | DECAL, HORSEPOWER , 200 PRO, Rear of Cowl | 1 | ||||||
| - | 37-8M0051735 | DECAL, HORSEPOWER , 250 PRO, Top of Cowl | 1 | ||||||
| - | 37-8M0051737 | DECAL, HORSEPOWER , 250 PRO, Rear of Cowl | 1 | ||||||
| - | 37-8M0054242 | DECAL, HORSEPOWER , 300 PRO, Top of Cowl | 1 | ||||||
| - | 37-8M0054241 | DECAL, HORSEPOWER , 300 PRO, Rear of Cowl | 1 |
