200 PRO VERADO 4-STROKE 6 CYL - Serial 2B034840 Thru 2B144122 - Mercathode Kit

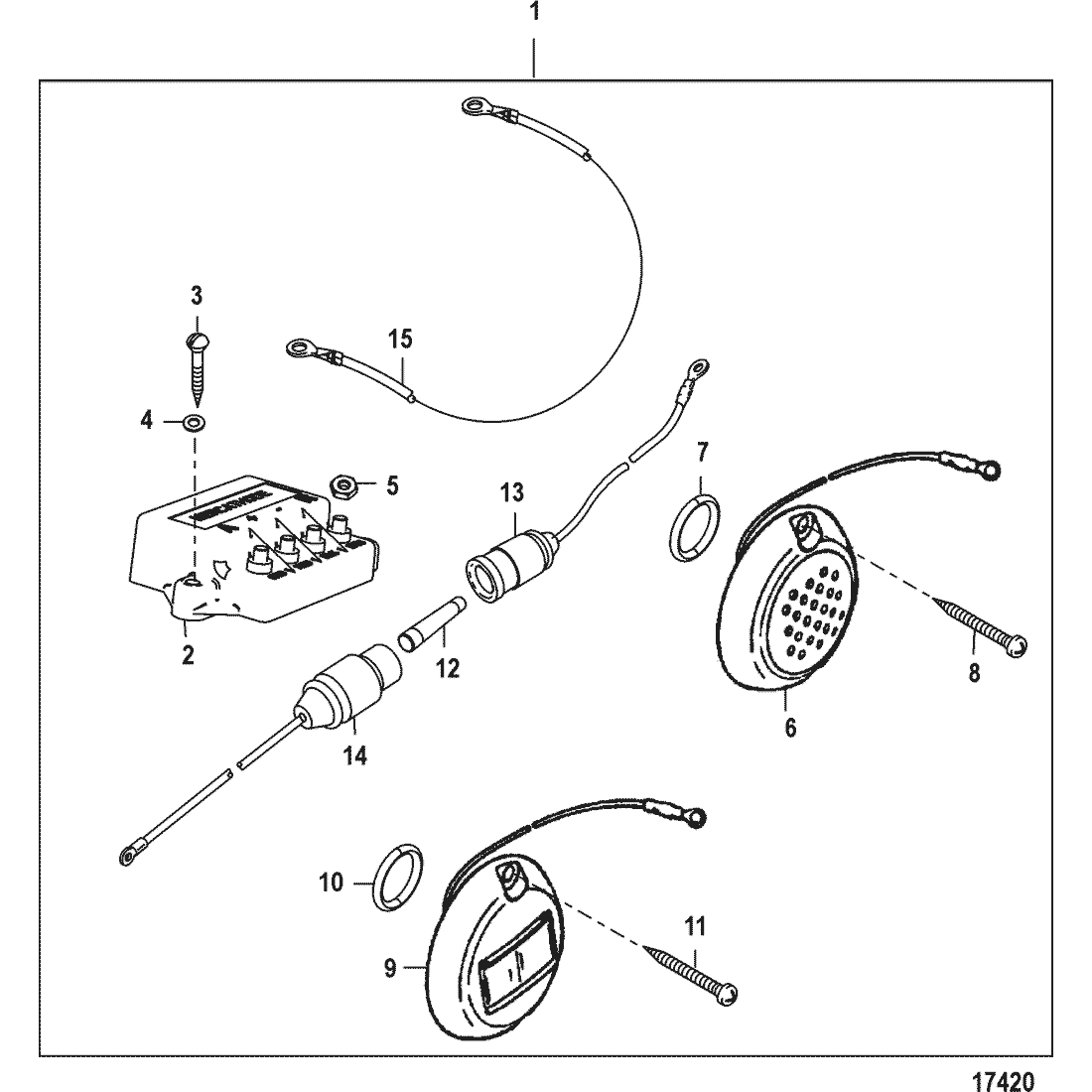

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold Hose Routings
- Charge Cooler/Intake Manifold(Gen I) End Cap Not Serviced
- Charge Cooler/Intake Manifold(Gen II) End Cap Serviced
- Cowl Latching
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Driveshaft Housing
- Electrical Box Components
- Fuel Supply Module
- Gear Housing(Driveshaft)
- Gear Housing, Propeller Shaft 2B026816 and below
- Gear Housing, Propeller Shaft 2B026817 and up
- Ground Cable Kit(899712A01)
- Induction Components
- Mercathode Kit
- Mount Cradle
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Power Trim/Steering Cylinder
- Powerhead Gasket Set Components
- Pump Kit-Power Steering(4 thru 24 Feet)
- Rear Cowl
- Starboard Cylinder Block/Oil Cooler(1B830815 and Below)
- Starboard Cylinder Block/Oil Cooler(1B830816 and Above)
- Starter Motor
- Steering Helm Kit-Standard(892557A02, 892380A02, 892558A02)
- SuperCharger
- Tools
- Top Cowl
- Upper Shift Components
- Water Separator Filter Kit, 886638A01
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 88334A2 | MERCATHODE KIT | 1 | ||||||
| 2 | 42600A09 | MERCATHODE ASSEMBLY | 1 | No Longer Available | |||||
| 3 | 10-22793 | SCREW, (#9-14 x .875) | 2 | ||||||
| 4 | 12-30164 | WASHER, (.192 x .375 x .0312) Stainless Steel | 2 | ||||||
| 5 | 11-45076 | NUT, (#10-32) Brass | 4 | ||||||
| 6 | 72958A5 | ELECTRODE ASSEMBLY | 1 | ||||||
| 7 | 25-21836 | O-RING, (.796 x .139) | 1 | ||||||
| 8 | 10-87698 | SCREW, (#10-16 x 1.250) Stainless Steel | 2 | ||||||
| 9 | 97-72957A5 | ANODE ASSEMBLY | 1 | ||||||
| 10 | 25-21836 | O-RING, (.796 x .139) | 1 | ||||||
| 11 | 10-87698 | SCREW, (#10-16 x 1.250) Stainless Steel | 2 | ||||||
| 12 | 88-79091 | FUSE, 20 Ampere | 1 | ||||||
| 13 | 84-95084A10 | CABLE ASSEMBLY, (5.00 Inches) Red | 1 | ||||||
| 14 | 84-95084A13 | CABLE ASSEMBLY, (64.00 Inches) | 1 | ||||||
| 15 | 84-79138A8 | CABLE ASSEMBLY, (72.00 Inches) Black | 1 |
