200 PRO VERADO 4-STROKE 6 CYL - Serial 2B034840 Thru 2B144122 - Power Trim/Steering Cylinder

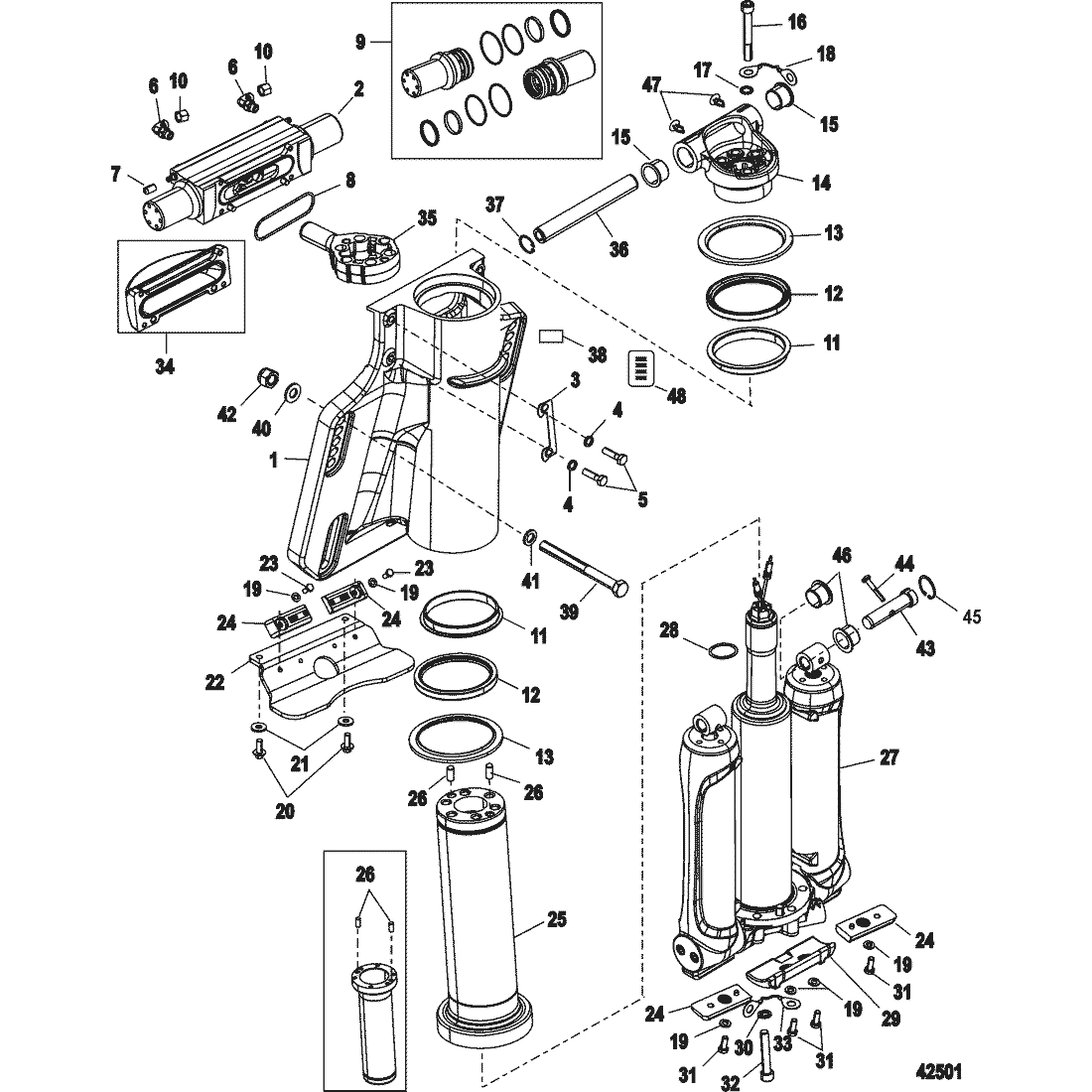

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold Hose Routings
- Charge Cooler/Intake Manifold(Gen I) End Cap Not Serviced
- Charge Cooler/Intake Manifold(Gen II) End Cap Serviced
- Cowl Latching
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Driveshaft Housing
- Electrical Box Components
- Fuel Supply Module
- Gear Housing(Driveshaft)
- Gear Housing, Propeller Shaft 2B026816 and below
- Gear Housing, Propeller Shaft 2B026817 and up
- Ground Cable Kit(899712A01)
- Induction Components
- Mercathode Kit
- Mount Cradle
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Power Trim/Steering Cylinder
- Powerhead Gasket Set Components
- Pump Kit-Power Steering(4 thru 24 Feet)
- Rear Cowl
- Starboard Cylinder Block/Oil Cooler(1B830815 and Below)
- Starboard Cylinder Block/Oil Cooler(1B830816 and Above)
- Starter Motor
- Steering Helm Kit-Standard(892557A02, 892380A02, 892558A02)
- SuperCharger
- Tools
- Top Cowl
- Upper Shift Components
- Water Separator Filter Kit, 886638A01
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | NSS | Transom Assembly | 1 | Not Sold Separate | |||||
| 1 | 880652T02 | PEDESTAL | 1 | 880652T01 | |||||
| 2 | 896500A01 | STEERING CYLINDER KIT | 1 | ||||||
| 3 | 893409 | RETAINER | 2 | ||||||
| 4 | 12-895853 | WASHER | 4 | ||||||
| 5 | 10-88509530 | SCREW, (M8 x 30) | 4 | ||||||
| 6 | 22-889552 | ELBOW | 1 | ||||||
| 7 | 889550 | CAP, Bleeder - Vinyl | 2 | ||||||
| 8 | 26-880667 | SEAL | 1 | ||||||
| 9 | 8M0045604 | SEAL KIT, Steering Cylinder | 1 | ||||||
| 10 | 22-892524 | CAP, Fitting | 2 | ||||||
| 11 | 31-8806621 | BEARING | 2 | ||||||
| 12 | 26-880661 | SEAL | 2 | ||||||
| 13 | 31-8806561 | BEARING | 2 | ||||||
| 14 | 880654T03 | HEAD, Steering | 1 | ||||||
| 15 | 31-8806551 | BEARING, (1.25 Inch) | 2 | ||||||
| 16 | 10-885094105 | SCREW, (M14 x 105) | 6 | ||||||
| 17 | 12-885112 | WASHER | 7 | ||||||
| 18 | 88238T23 | CABLE ASSEMBLY | 1 | ||||||
| 19 | 12-889545 | WASHER | 6 | ||||||
| 20 | 10-4010720 | SCREW, (M8 x 20) | 2 | ||||||
| 21 | 12-72397 | WASHER | 2 | ||||||
| 22 | 896120T | PLATE, Deflector (Silver) | 1 | ||||||
| 22 | 8M0045157 | PLATE, Deflector (Black) | 1 | ||||||
| 23 | 10-4000327 | SCREW, (M6 x 14) | 2 | ||||||
| 24 | 97-893404 | ANODE | 4 | ||||||
| 25 | 880660T02 | TUBE, Steering | 1 | ||||||
| 26 | 17-885111 | PIN, Dowel (.375 x .875) | 6/8 | ||||||
| 27 | 880658T03 | POWER TRIM ASSEMBLY | 1 | ||||||
| 28 | 25-895854 | O-RING | 1 | ||||||
| 29 | 97-880653 | ANODE | 1 | ||||||
| 30 | 12-889549 | WASHER | 6 | ||||||
| 31 | 10-889543016 | BOLT | 4 | ||||||
| 32 | 10-88510450 | SCREW | 6 | ||||||
| 33 | 88238T24 | CABLE ASSEMBLY | 1 | ||||||
| 34 | 893405T | COVER | 1 | ||||||
| 35 | 880665T01 | ARM, Steering | 1 | ||||||
| 36 | 17-895390 | TILT PIN | 1 | ||||||
| 37 | 53-8M0038931 | RING, Retaining | 1 | ||||||
| 38 | NSS | Decal-Serial Overlaminate | 1 | Not Sold Separate | |||||
| 39 | 10-8M0038370 | SCREW, (.500-20 x 5.50) | 4 | ||||||
| 40 | 12-28421 | WASHER, (1.5 x 3.05 x 0.13) Stainless Steel | 4 | ||||||
| 41 | 12-895062 | WASHER | 4 | ||||||
| 42 | 11-82671117 | NUT, (.500-20) | 4 | ||||||
| 43 | 17-884889002 | PIN | 2 | ||||||
| 44 | 17-821539 | PIN, Trilobe | 2 | ||||||
| 45 | 3-895304 | RING, Retaining | 2 | ||||||
| 46 | 23-8M0085825 | BEARING, Flanged Journal | 4 | 8M0032437 | |||||
| 47 | 19-95925 | PLUG | 2 | ||||||
| 48 | 37-8M0043059 | DECAL, Warning | 1 |
