200 PRO VERADO 4-STROKE 6 CYL - Serial 2B034840 Thru 2B144122 - Starter Motor

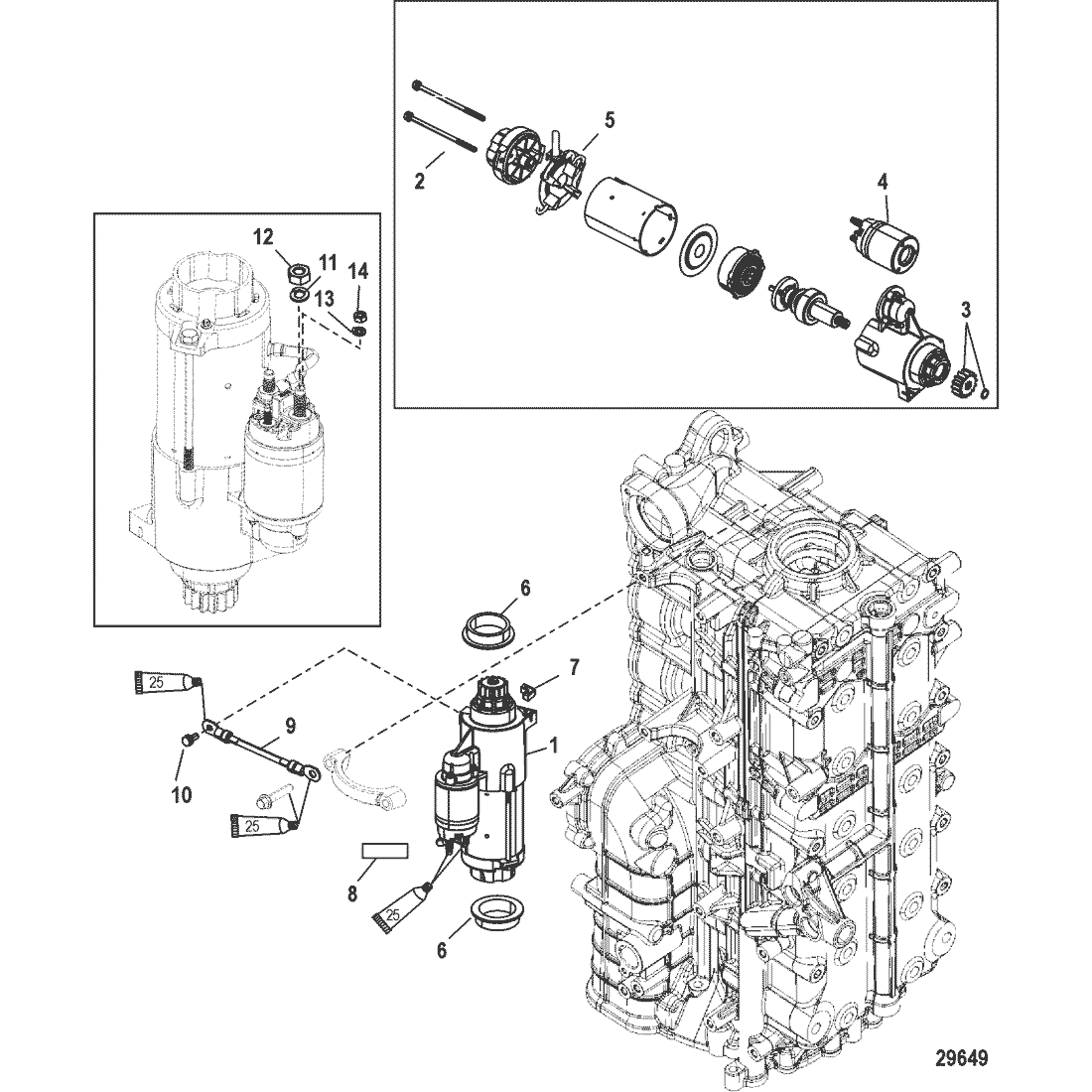

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- NSS         Starter Motor Assembly 1   Not Sold Separate
1 50-892339T01         STARTER MOTOR ASSEMBLY 1
2 NSS         Screws 2   Not Sold Separate
3 43-880805A1         GEAR KIT 1
4 809463A1         SOLENOID KIT 1
5 8M0065258         BRUSH SET 1
6 23-8M0034918         COLLAR 2
7 8M0043276         STOP 1
8 NSS         Decal-Waring-High Voltage 1   Not Sold Separate
9 84-93388A1         CABLE ASSEMBLY, (6.00 Inches) Black 1
10 10-69035         SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel 1
11 13-26993         LOCKWASHER, (.312) 1
12 11-400213         NUT, (M8) Stainless Steel 1
13 13-400255         LOCKWASHER, (M5) 1
14 11-400211         NUT, (M5) Stainless Steel 1
