200 PRO VERADO 4-STROKE 6 CYL - Serial 2B034840 Thru 2B144122 - Gear Housing, Propeller Shaft 2B026817 and up

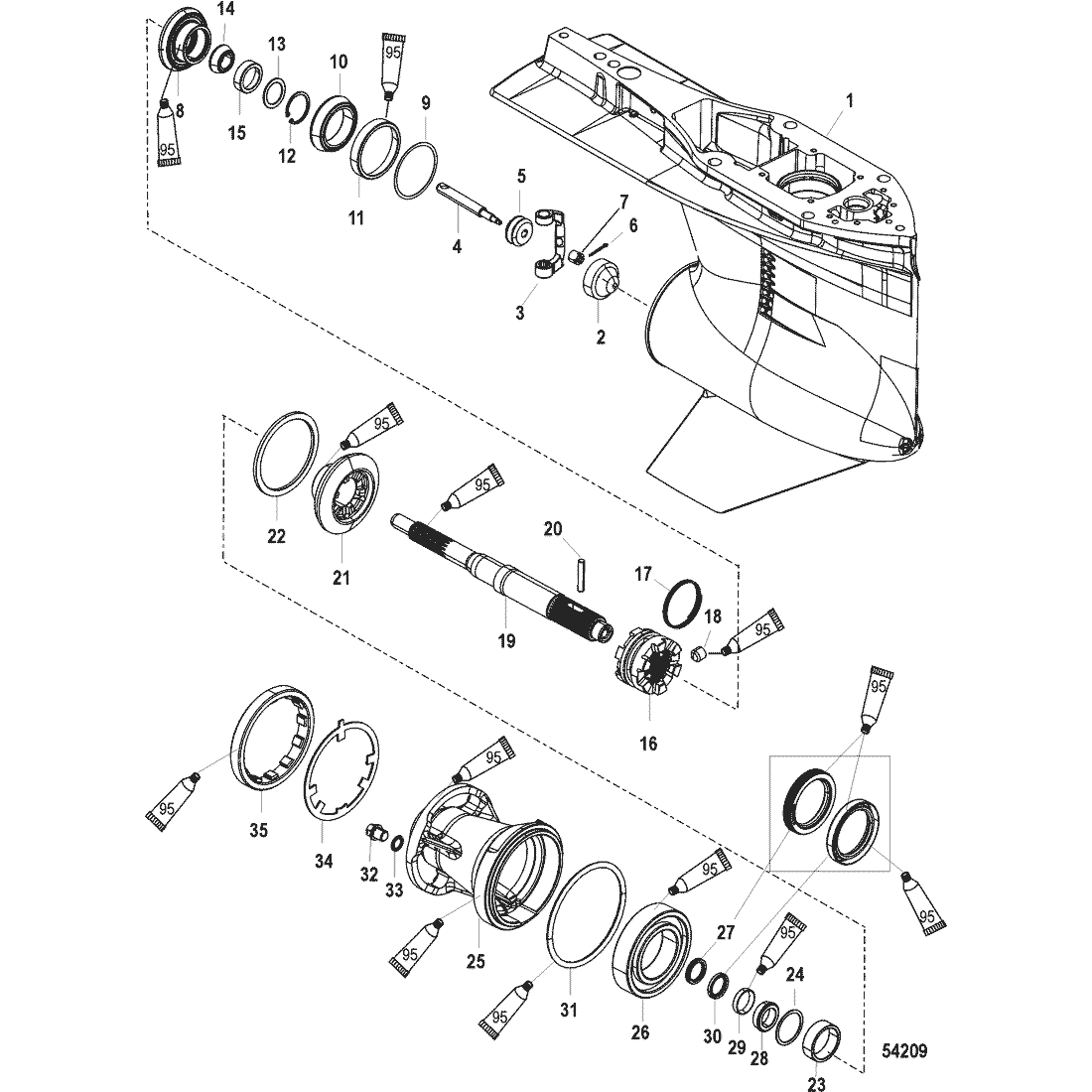

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 1600-880686T13         GEAR HOUSING ASSEMBLY, Complete 1
- 1600-880686T14         GEAR HOUSING ASSEMBLY, Complete 1
- 1600-880686T54         GEAR HOUSING ASSEMBLY, Complete 1
- 1600-880686T55         GEAR HOUSING ASSEMBLY, Complete 1
1 1600-8M0056631         GEAR HOUSING ASSEMBLY, Basic 1
2 NSS         Plug 1   Not Sold Separate
3 8M0046215         CRANK, Shifter, 1/4 Pivot Pin 1
4 19755T7         SPOOL ASSEMBLY 1
5 NSS         Spool 1   Not Sold Separate
6 18-469501         COTTER PIN 1
7 NSS         Sleeve Adjusting 1   Not Sold Separate
8 43-892595A05         GEAR SET, Forward/Pinion 1
8 43-892595A04         GEAR SET, Forward/Pinion 1
9 15-8M0063270         SHIM SET AR   No Longer Available
10 31-884323T01         BEARING ASSEMBLY, Roller 1
11 NSS         Cup 1   Not Sold Separate
12 53-8M0051043         RING, Retaining 1 23721
13 12-8M0053823         THRUST WASHER 1 892805
14 31-884325T01         BEARING ASSEMBLY, Roller-Tappered 1
15 NSS         Cup 1   Not Sold Separate
16 52-880714T         CLUTCH 1
17 24-30893         SPRING 1
18 17-828356     700-21104   PIN, Detent 1
19 44-8M0069774         PROPELLER SHAFT 1
20 17-8M0100263         PIN, Cross 1 8M0020941
21 43-880695A01         GEAR ASSEMBLY, Reverse 1
21 43-880707A01         GEAR, Reverse 1
22 880699         THRUST RING 1
23 23-8M0064306         SPACER 1
24 15-8M0076745         SHIM SET 1
24 12-8M0050423         WASHER, .020 AR
24 12-8M0050424         WASHER, .022 AR
24 12-8M0050425         WASHER, .024 AR
24 12-8M0050427         WASHER, .026 AR
24 12-8M0050428         WASHER, .028 AR
24 12-8M0050429         WASHER, .030 AR
24 12-8M0050430         WASHER, .032 AR
24 12-8M0050431         WASHER, .034 AR
24 12-8M0050432         WASHER, .036 AR
24 12-8M0050433         WASHER, .038 AR
24 12-8M0050434         WASHER, .040 AR
24 12-8M0050435         WASHER, .042 AR
24 12-8M0050436         WASHER, .044 AR
24 12-8M0050437         WASHER, .046 AR
24 12-8M0050438         WASHER, .048 AR
24 12-8M0050439         WASHER, .050 AR
25 8M0083392         CARRIER ASSEMBLY, Bearing 1
26 30-884329T         BEARING, Ball 1
27 26-888483         SEAL, Oil 1
28 31-884330T01         BEARING ASSEMBLY, Tapered 1
29 NSS         Cup 1   Not Sold Separate
30 26-888483         SEAL, Oil 1
31 25-896524         O-RING, (3.850 x .210) 1
32 10-880717A01         SCREW/SEAL KIT 1
33 26-830749         SEAL 1
34 14-880697         KEYED WASHER 1
35 8M2011027         RETAINER 1 79448
- 26-830749A01         SEAL KIT, Gear Housing 1
