600 SCi - Serial 0M952908 Thru 0M962885 - Engine Components (Crankshaft - Piston - Connecting Rods)

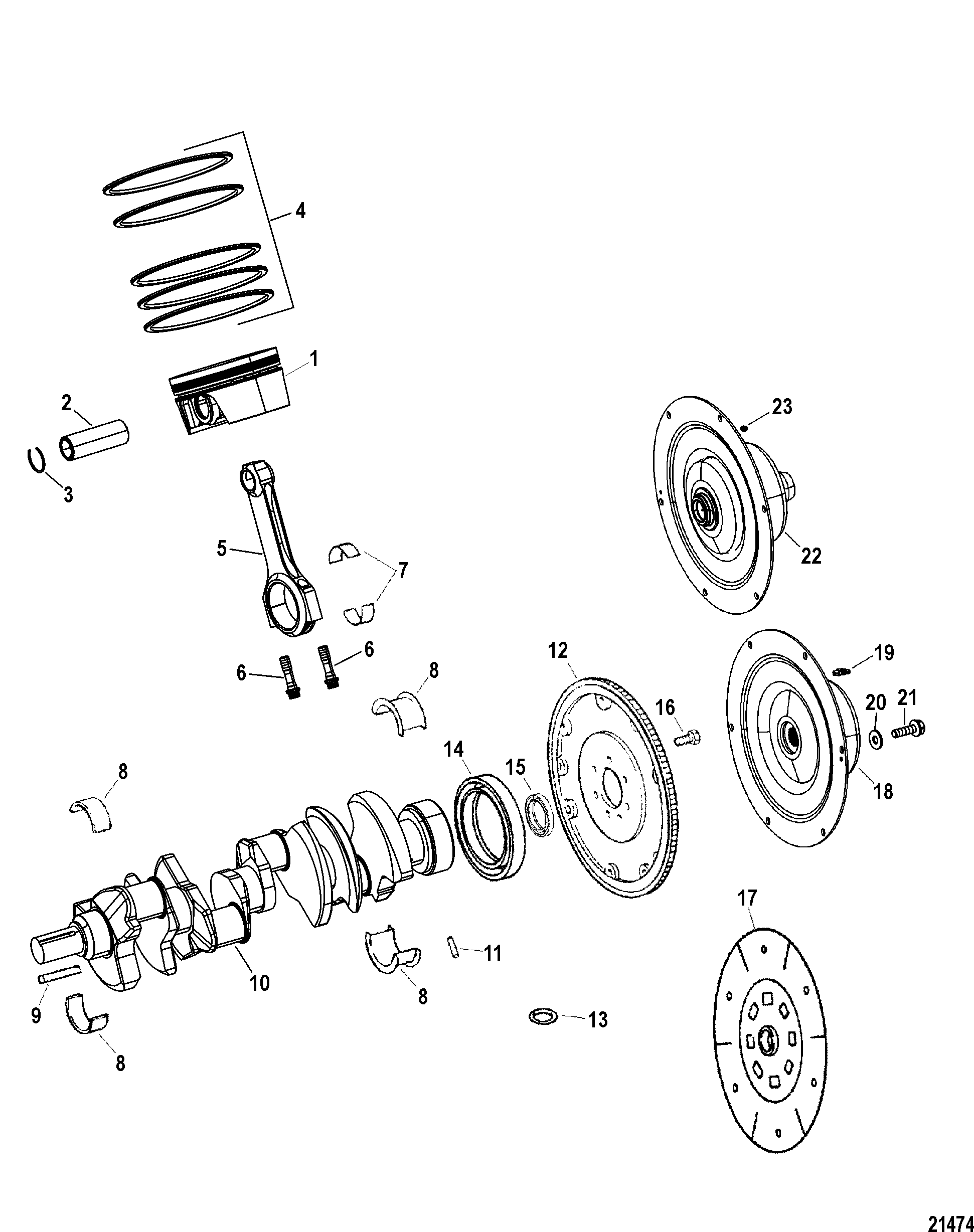

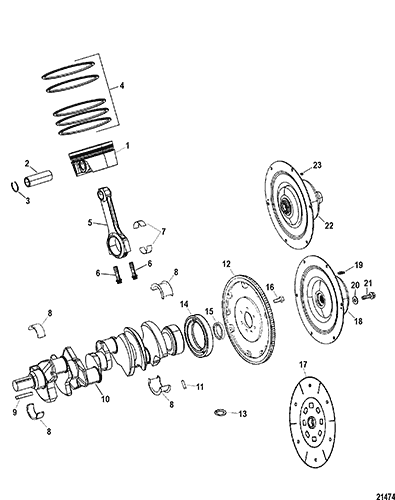

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Mounting
- Closed Cooling System Components
- Driveshaft And Tailstock (Driveline)
- Driveshaft Extension Components(Bravo)
- Electrical Components (Coils)
- Electrical Components (Engine Harness)
- Electrical Components (Mounting Box)
- Electrical Components (Starter Motor)
- Engine Components (Crankshaft - Piston - Connecting Rods)
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission Models)
- Fuel Lines And Fuel Components
- Fuel Pump And Fuel Cooler
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-843073A05)
- Intake Components (Air Plenum)
- Intake Components (Boost Valve)
- Intake Components (Intercooler And Manifold)
- Intake Components (Supercharger Assembly)
- Mount Plates (Engine - Design I)
- Mount Plates (Engine - Design II)
- Oil Cooler - Oil Filter (0M952908 Thru 0M953904)
- Oil Cooler - Oil Filter (0M953905 And Up)
- Oil Cooler (Six Drive)
- Oil Pan And Oil Pump
- Paint Color Chart
- Power-Assisted Steering (0M952908 Thru 0M955606)
- Power-Assisted Steering (0M955607 And Up)
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components (Bravo)
- Tool List (Special - Engine)
- Transmission (Driveline)
- Transmission (Six Drive)
- Transmission Components (Six Drive)
- Trim Pump Assembly (Bravo)
- Trim Pump-Motor Assembly (Bravo)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes | |
| 1 | 798-843231T01 | PISTON ASSEMBLY, Standard | 8 | 5 | ||||||
| 2 | 41-843006T | PIN, Piston | 8 | 5 | ||||||
| 3 | 40-843007 | CIRCLIP | 16 | 5 | ||||||
| 4 | 39-843008A01 | RING SET, Piston - Standard | 8 | 5 | ||||||
| 5 | 614-8M8020322 | CONNECTING ROD ASSEMBLY | 8 | 5 | ||||||
| 6 | 10-8M0000838 | SCREW, Special | 16 | 5 | ||||||
| 7 | 23-8M0030217 | BEARING SET, Connecting Rod - Standard | 8 | 23-841447 | SN# 0M952908 THRU 0M958497 5 | |||||
| 7 | 23-8M0030217 | BEARING SET, Connecting Rod - Standard | 8 | SN# 0M958498 & Up 5 | ||||||
| 7 | 23-8M0030218 | BEARING SET, Connecting Rod - .001 Oversize | AR | 23-841448 | SN# 0M952908 THRU 0M958497 | |||||
| 7 | 23-8M0030218 | BEARING SET, Connecting Rod - .001 Oversize | AR | SN# 0M958498 & Up | ||||||
| 7 | 23-8M0030216 | BEARING SET, Connecting Rod - .001 Undersize | AR | 23-841449 | SN# 0M952908 THRU 0M958497 | |||||
| 7 | 23-8M0030216 | BEARING SET, Connecting Rod - .001 Undersize | AR | SN# 0M958498 & Up | ||||||
| 7 | 23-8M0030982 | BEARING SET, Connecting Rod - .010 Undersize | AR | 23-841450 | SN# 0M952908 THRU 0M958497 | |||||
| 7 | 23-8M0030982 | BEARING SET, Connecting Rod - .010 Undersize | AR | SN# 0M958498 & Up | ||||||
| 8 | 8M0051198 | BEARING SET, Main - Standard | 1 | 23-842400 | 5 | |||||
| 8 | 8M0053743 | BEARING SET, Main - .001 Oversize | AR | 23-842401 | ||||||
| 8 | 23-842402 | BEARING SET, Main - .001 Undersize | AR | |||||||
| 8 | 23-8M0053549 | BEARING SET, Main - .010 Undersize | AR | 23-842403 | ||||||
| 9 | 28-845607 | KEY, Crankshaft | 1 | 5 | ||||||
| 10 | 400-842478T02 | CRANKSHAFT/FLYWHEEL ASSEMBLY, Balanced | 1 | NOTE: Also Includes Damper | 8M8021041 - Reference Engine Components Section - Water Pump And Front Cover 5 | |||||
| 11 | 17-43504 | PIN, Dowel | 1 | 5 | ||||||
| 12 | 899898T59 | FLYWHEEL | 1 | 5 | ||||||
| 13 | 25-69756 | O-RING, (.549 x .103), For #5 Bearing Cap Oil Hole | 1 | 2,5 | ||||||
| 14 | 26-811554 | SEAL, Oil | 1 | 2,5 | ||||||
| 15 | 23-823108 | BUSHING, Crankshaft Pilot | 1 | Driveline Models 5 | ||||||
| 16 | 10-845757 | SCREW, (.437-20 x 1.00) | 6 | 5 | ||||||
| 17 | 8M0051206 | DRIVEPLATE ASSEMBLY | 1 | 816618 | Six Drive Models | |||||
| 18 | 861523A9 | COUPLER ASSEMBLY, Engine - Short Aluminium Hub | 1 | Driveline Models | ||||||
| 19 | 22-49099 | FITTING | 2 | |||||||
| 20 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 6 | |||||||
| 21 | 10-35091 | SCREW, (.375-16 x 1.00) | 6 | |||||||
| 22 | 861523A20 | COUPLER ASSEMBLY, Engine - Long Steel Hub | 1 | Bravo Models | ||||||
| 23 | 22-74036 | FITTING, Grease | 1 | |||||||
| - | 27-843073A05 | GASKET/SEAL SET, Engine Overhaul | 1 | NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing | ||||||
| - | 844200A08 | PARTIAL ENGINE ASSEMBLY | 1 |
