575 SCi - Serial 0M900000 Thru 0M950526 - Electrical Components

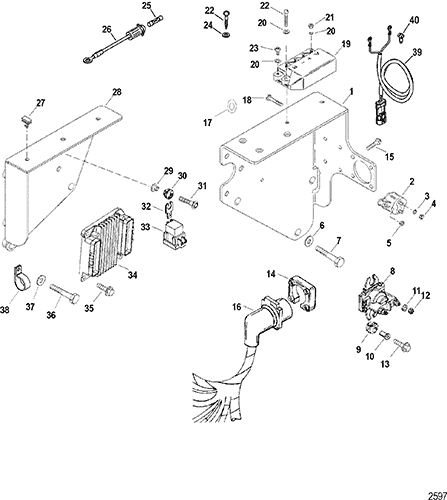

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Circulating Water Pump And Front Cover
- Crankshaft - Piston And Coupler Components
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft And Tailstock (Transmission)
- Driveshaft Extension Components (Bravo)
- Electrical Components
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo Plug In)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission)
- Fuel Pump And Fuel Cooler
- Gasket-Seal Set - Engine Overhaul (27-842182A1)
- Harness Assembly (EFI Wiring)
- Intake Manifold And Supercharger
- Intake Throttle Body Assembly
- Intake Throttle Body Components
- Monitor Assembly (Drive Lube)
- Mount Plates - Engine
- Oil Cooler (Transmission)
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Power-Assisted Steering Components (Design I)
- Power-Assisted Steering Components (Design II)
- Pump-Motor Assembly (865380A13)
- Pump-Motor Assembly (Design I - 14336A20)
- Pump-Motor Assembly (Design I - 14336A8)
- Pump-Motor Assembly (Design II - 14336A25)
- Pump-Motor Assembly (Design III - 14336A31)
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Sender And Sensors
- Shift Bracket Components (Bravo Design I)
- Shift Bracket Components (Bravo Design II)
- Starter And Alternator Mounting
- Starter Assembly
- Thermostat Housing
- Transmission And Components (Driveline)
- Transmission And Components (Six Drive - Bravo)
- Trim Pump Assembly (14336 Series)
- Trim Pump Assembly (865380 Series)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 849915T1 | BRACKET, Electrical Components | 1 | ||||||
| 2 | 88-11178A01 | BREAKER, Circuit - 50 Ampere | 1 | 88-11178 | This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work. | ||||
| 3 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 2 | ||||||
| 4 | 11-68219 | NUT, (#10-32) Stainless Steel | 2 | ||||||
| 5 | 11-61356 | NUT, (#10-32) Reduced Hex | 2 | ||||||
| 6 | 12-45176 | 700-28420 | WASHER, (.453 x .812 x .105) Stainless Steel | 3 | |||||
| 7 | 10-825427 | SCREW, (.437-14 x 1.250) Stainless Steel | 3 | ||||||
| 8 | 89-818999A2 | SOLENOID ASSEMBLY, Starter | 1 | ||||||
| 9 | 25-818967 | GROMMET | 2 | ||||||
| 10 | 23-818968 | BUSHING | 2 | ||||||
| 11 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 2 | ||||||
| 12 | 11-94330 | NUT, (.250-20) Brass | 2 | ||||||
| 13 | 10-828478 | SCREW, (.250-20 x 1.00) Stainless Steel | 2 | ||||||
| 14 | 26079A2 | PLATE KIT, Wire Harness Mount | 1 | ||||||
| 15 | 10-15001 | SCREW, (#8-16 x .875) | 4 | ||||||
| 16 | 84-8M0050123 | HARNESS ASSEMBLY, Engine | 1 | 84-842420A1 | |||||
| 17 | 37-72554 | DECAL, Circuit Breaker | 1 | ||||||
| 18 | 10-45862 | SCREW, (#10-32 x .875) | 2 | ||||||
| 19 | 42600A09 | CONTROLLER ASSEMBLY | 1 | 42600A3 | |||||
| 20 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 7 | ||||||
| 21 | 11-68219 | NUT, (#10-32) Stainless Steel | 4 | ||||||
| 22 | 10-41771 | SCREW, (#10-24 x .875) | 2 | Bracket Mounted | |||||
| 22 | 10-35401 | SCREW, (#10 x 1.00) | OPT | Remote Mounted | |||||
| 23 | 10-62568 | SCREW, (#10-16 x .375) | 1 | ||||||
| 24 | 12-30164 | WASHER, (.192 x .375 x .0312) Stainless Steel | 2 | ||||||
| 25 | 88-79091 | FUSE, 20 Ampere | 1 | ||||||
| 26 | 84-95084A9 | CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip, Fuse | 1 | ||||||
| 26 | 84-95084A10 | CABLE ASSEMBLY, (5.00 Inches) Red, Fuse | 1 | ||||||
| 27 | 54-804352 | CLIP, Fuse Case Hold Down | 2 | ||||||
| 28 | 849910T1 | BRACKET | 1 | ||||||
| 29 | 23-818968 | BUSHING | 2 | ||||||
| 30 | 25-818967 | GROMMET | 2 | ||||||
| 10-828478d> | 10-828478 | SCREW, (.250-20 x 1.00) Stainless Steel | 2 | ||||||
| 32 | 828102 | BRACKET, Relay Mount | 2 | ||||||
| 33 | 86-865202T | RELAY, Ignition And Fuel Pump | 2 | ||||||
| 34 | 840138T04 | ECM, Engine Control Module | 1 | ||||||
| 35 | 10-90192 | SCREW, (.250-20 x .750) Stainless Steel | 3 | ||||||
| 36 | 10-825427 | SCREW, (.437-14 x 1.250) Stainless Steel | 2 | ||||||
| 37 | 12-45176 | 700-28420 | WASHER, (.453 x .812 x .105) Stainless Steel | 2 | |||||
| 38 | 54-848183 | J CLIP, Wire Harness Support | 1 | ||||||
| 39 | 84-865181A01 | HARNESS ASSEMBLY, Mercathode | 1 | No longer made, limited availability | |||||
| 40 | 85-65208 | BOOT, Insulator - Black | 2 |
