525 SC (Gen 6) - Serial 0F745260 Thru 0F877734 - Oil Reservoir Bottle

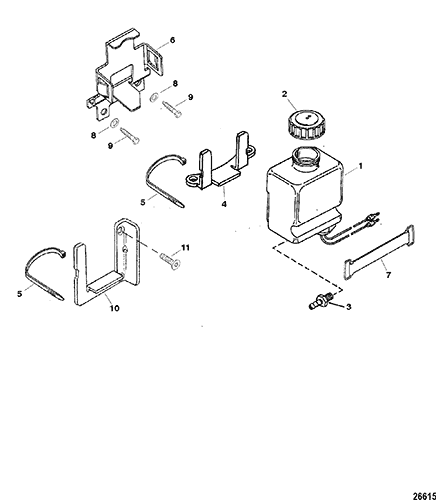

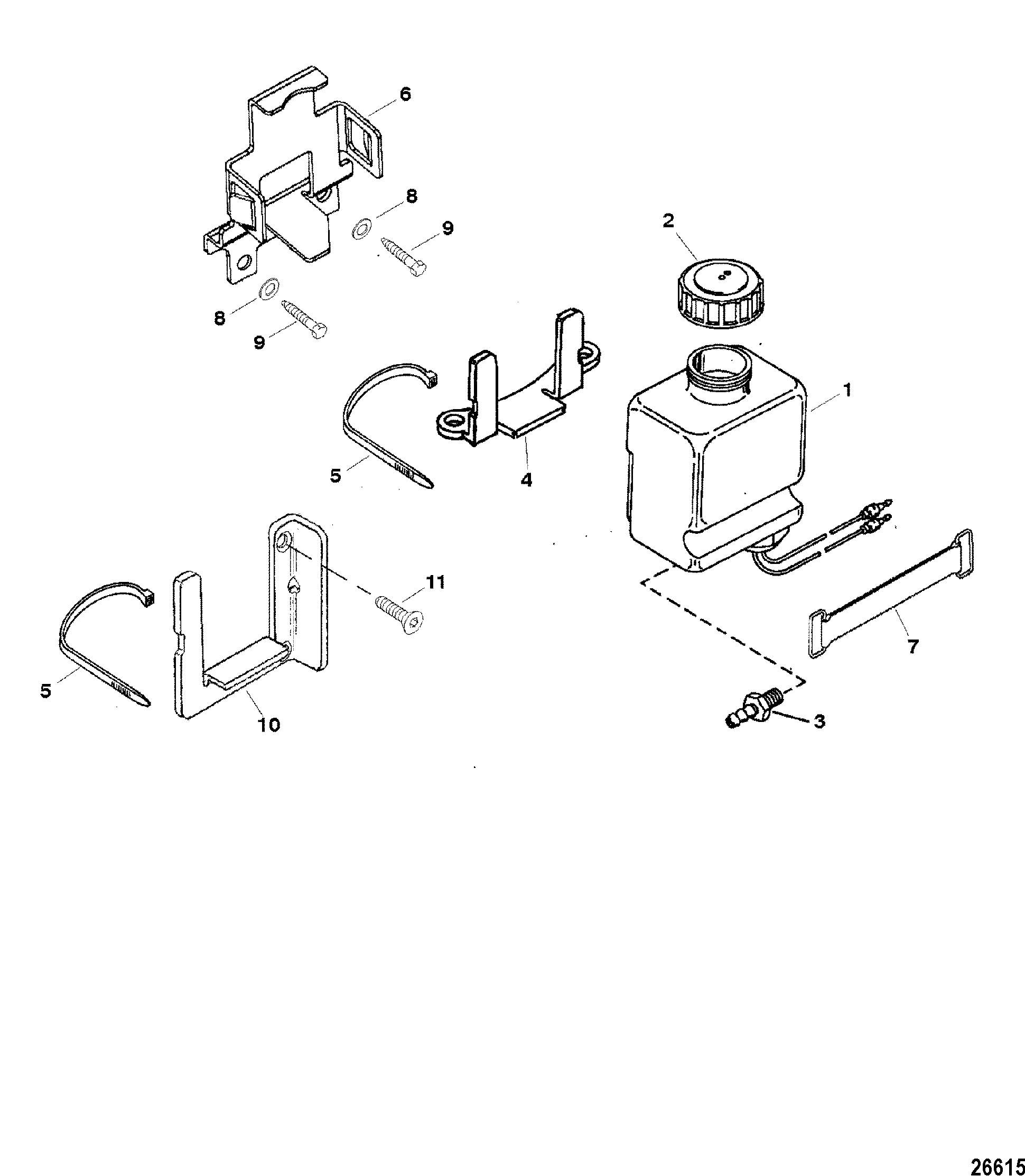

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components(Bravo Models)
- Electrical Components (0F745260 Thru 0F877734)
- Electrical Components (0K000012 Thru 0L415623)
- Exhaust Block Off Plate
- Exhaust Header-Tailpipe (0K000012 Thru 0L415623)
- Exhaust Manifold-Elbow (0F745260 Thru 0F877734)
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug In Models)
- Fuel Pump And Fuel Filter
- Intake Manifold And Supercharger
- Mount Plates
- Oil Cooler And Oil Filter
- Oil Pan And Oil Pump
- Oil Reservoir Bottle
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter And Alternator Mounting
- Starter Assembly (50-808011A1) (Driveline)
- Starter Assembly (50-8M8021116) (Bravo Plug In)
- Thermostat Housing
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 806193A51 | RESERVOIR ASSEMBLY, Oil | 1 | 806193A3 | |||||
| 2 | 36-8067271 | CAP, Drive Lube Monitor | 1 | 36-808625 | |||||
| 3 | 22-808624 | CONNECTOR | 1 | ||||||
| 4 | 848406 | BRACKET, Reservoir Mount | 1 | SN# 0F745260 THRU 0F877734 | |||||
| 5 | 77054 | TIE STRAP, (14.50 Inches) | 1 | ||||||
| 6 | 860065A1 | BRACKET KIT, Oil Bottle - Remote Mounting | 1 | SN# 0K000012 THRU 0L415623 | |||||
| 7 | 808023T | STRAP, Bracket - Retaining | 1 | SN# 0K000012 THRU 0L415623 | |||||
| 8 | 12-69057 | WASHER, (.281 x .734 x .063) | 2 | SN# 0K000012 THRU 0L415623 | |||||
| 9 | 10-59784 | SCREW, (.250-10 x 1.00) | 2 | SN# 0K000012 THRU 0L415623 | |||||
| 10 | 848888 | BRACKET, Reservoir Mount | 1 | This Part is No Longer Available SN# 0K000012 THRU 0L415623 | |||||
| 11 | 10-848889 | SCREW (.250-20 x .500) | 2 | This Part is No Longer Available SN# 0K000012 THRU 0L415623 |
