5.7L (2 BBL) GM 350 V-8 1998-2001 - Serial 0L010037 Thru 0M599999 - Cylinder Head And Rocker Cover

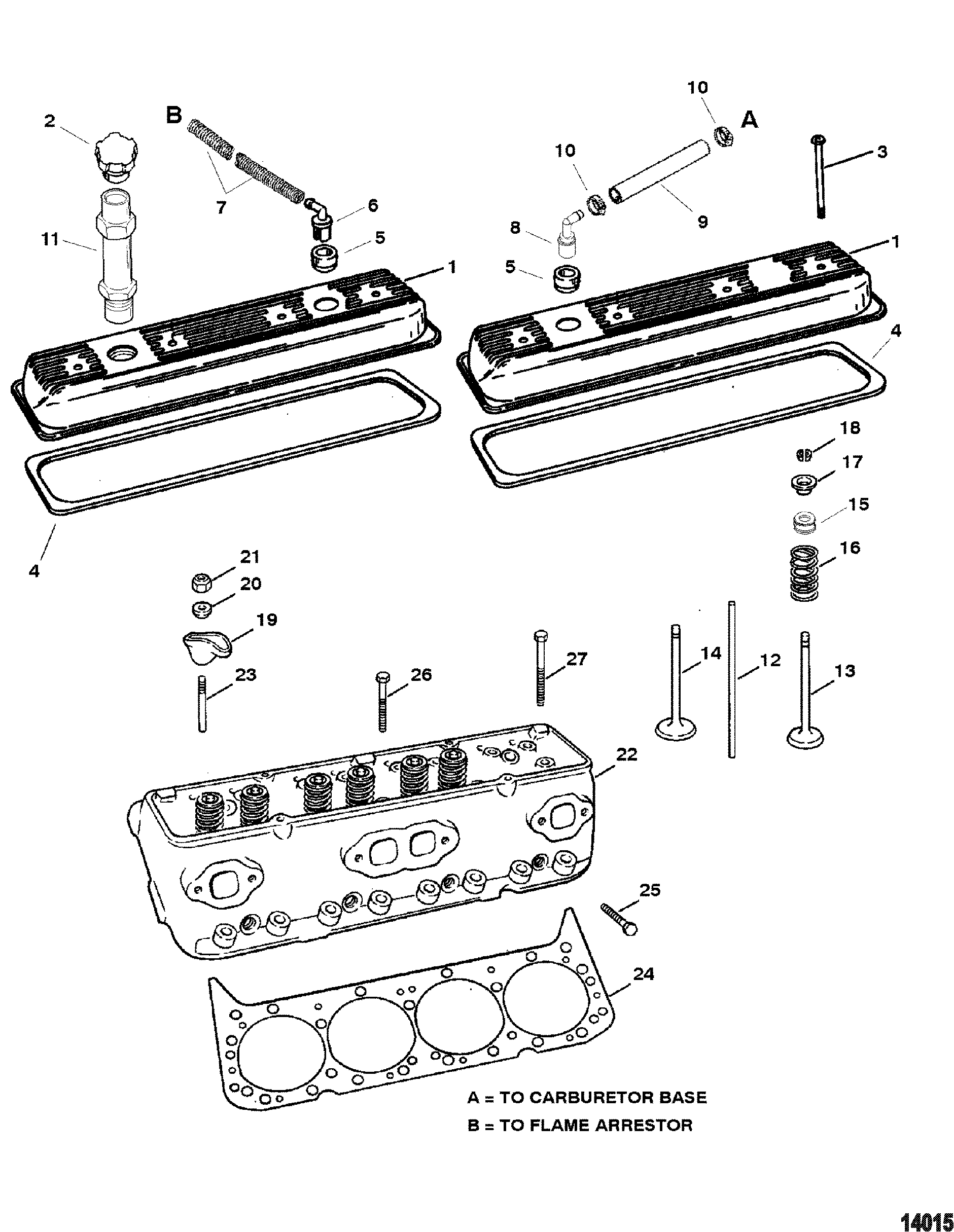

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 809995         COVER, Rocker, With Oil Fill Hole 1

1 809996         COVER, Rocker, With Out Oil Fill Hole 1

2 36-18710002         CAP, Oil Fill 1 36-187101
3 10-17344         SCREW 8

4 27-17467   676-9-61305 700-30357   GASKET, Rocker Cover 2
3
5 25-52188         GROMMET 2

6 97850T         ELBOW, 90 Degree 1 97850
7 32-1589424         HOSE, (16.50 Inches Bulk) (Cut to 10.00 Inch Length) 1
(5.0L)
7 32-8M0062669         TUBING, (24.00 Inches Bulk) (Cut to 16.75 Inch Length) 1 32-807498240 (5.7L)
8 8M2017060         VALVE, PCV 1 21-861476
9 32-8M0062321         HOSE, (33.00 Inches Bulk) (Cut To 9.00 Inch Length) 1 32-86197763 (5.0L)
9 32-8M0062321         HOSE, (33.00 Inches Bulk) (Cut to 12.50 Inch Length) 1 32-86197763 (5.7L)
10 54-815504105         CLAMP, Worm Gear 2

11 807688T         TUBE, Oil Fill 1

12 173391         PUSH ROD 16

13 8243171         VALVE 8

13 8243181         VALVE AR
4
14 802555         VALVE, Standard 8
(5.0L)
14 809992         VALVE 8
(5.7L)
15 26-976641         SEAL 8
3
15 26-804507         SEAL 8

16 24-483471         SPRING 16

17 483481         CAP 16

18 28-547971         KEY 32

19 35329         ARM KIT, Rocker 16

20 35331         BALL, Rocker Arm 16

21 11-34516         NUT 16

22 938-802556T         CYLINDER HEAD ASSEMBLY 2 938-802556 (5.0L)
22 938-803860T         CYLINDER HEAD ASSEMBLY, Cylinder 2
(5.7L)
23 16-34522         STUD AR
4
23 16-34521         STUD AR   This Part is No Longer Available 4
24 75611001         GASKET 2 27-75611 3
25 10-11968         SCREW, (.437-14 x 1.750) 16

26 10-119671         SCREW, (.437-14 x 3.00) 4

27 10-11966         SCREW, (.437-14 x 3.750) 14

- 27-861246A05     700-39016   GASKET SET 1 27-861246A98
