800 SC (Gen 4-5) GM 572 V8 1991-1996 - Serial 0D763836 and Up - Carburetor And Linkage (Page 1 0F 2)

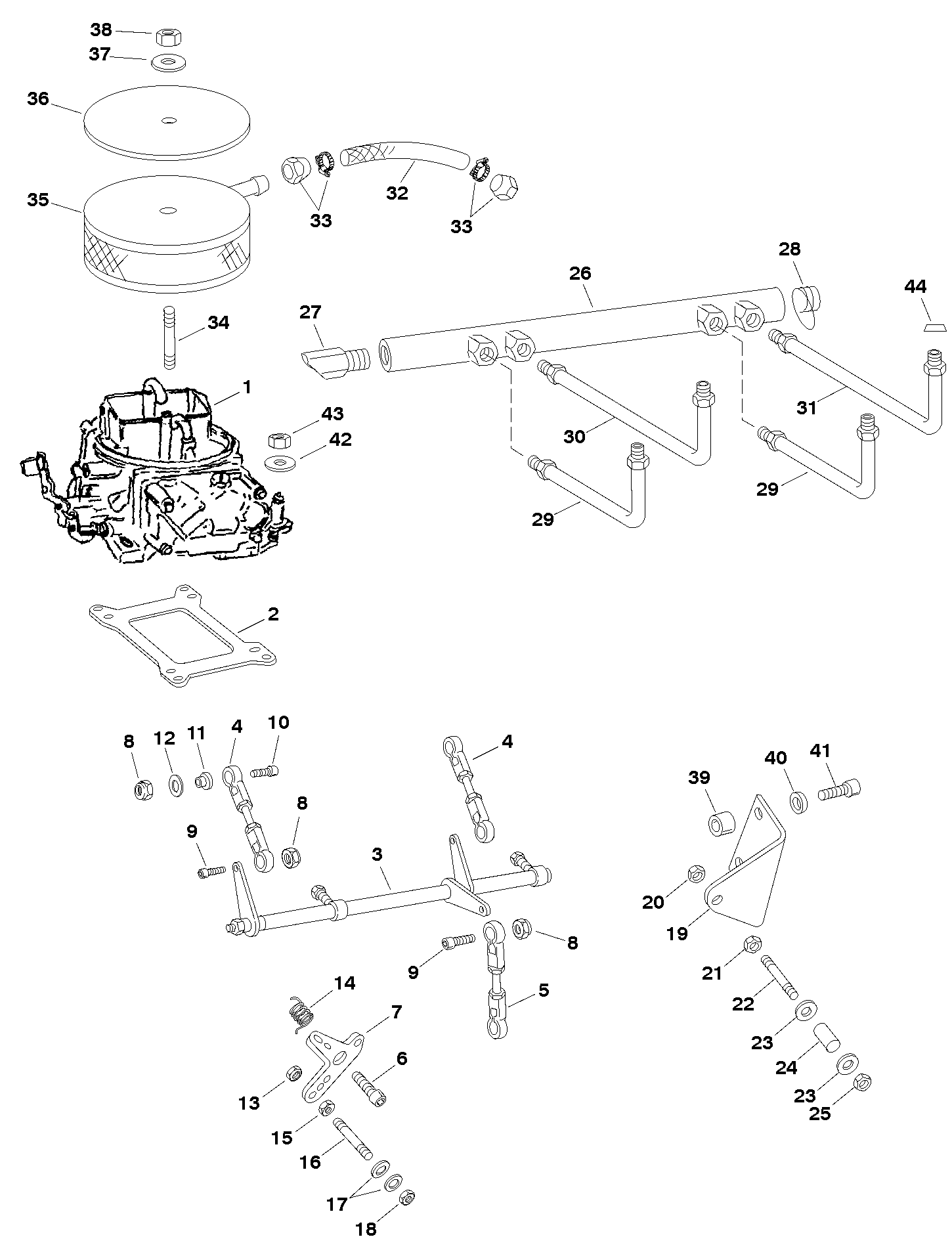

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage (Page 1 0F 2)
- Carburetor And Linkage (Page 2 0F 2)
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover (0F348742 And Below)
- Cylinder Head And Rocker Cover (0F615830 And Up)
- Distributor And Ignition Components
- Driveshaft And Tailstock (Driveline)
- Electrical Components (0D763836 Thru 0F877725)
- Electrical Components (0K000223 And Up)
- Exhaust Manifold Assembly
- Flywheel Housing (Transmission Models)
- Fuel Pump Assembly
- Intake Manifold And Front Cover
- Mount Plates-Engine
- Oil Cooler (Transmission)
- Oil Cooler, Filter And Adaptor (0F348742 And Down)
- Oil Cooler, Filter And Adaptor (0F615830 And Up)
- Oil Pan And Oil Pump
- Power Steering Components
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-808011A1)
- Supercharger
- Thermostat Housing And Water Hoses
- Transmission And Components - VI Drive (Bravo) (Pg 1 0F 2)
- Transmission And Components - VI Drive (Bravo) (Pg 2 0F 2)
- Transmission And Components (Driveline)
- Transmission Components (Plug In) (Page 1 0F 2)
- Transmission Components (Plug In) (Page 2 0F 2)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 3312-821030A17 | CARBURETOR (BLUE) | 1 | This Part is No Longer Available (REAR) | |||||
| 1 | 3312-821030A18 | CARBURETOR (BLUE) | 1 | (FRONT) | |||||
| 2 | 818892 | SPACER-Carburetor Base | 2 | 5 | |||||
| NS | 1399-650878 | JET-Main (.089) | 2 | 1 | |||||
| NS | 1399-650888 | JET-Main (.104) | 2 | 1 | |||||
| NS | 24-48143 | SPRING | 2 | 1 | |||||
| NS | 35-93568 | FILTER | 2 | 1 | |||||
| NS | 32-42265 | TUBE-Fuel Bowl Vent | 1 | 1 | |||||
| NS | 22-47945 | PLUG-Pipe | 1 | 1 | |||||
| NS | 27-42270A1 | GASKET SET-Bowl | 2 | 1 | |||||
| NS | 17-35973 | PIN-Dowel | 1 | 1 | |||||
| 3 | 849094A1 | LINKAGE ASSEMBLY-Throttle | 1 | 818974A1 | This Part is No Longer Available 3 | ||||
| 4 | 849095A1 | LINK KIT-Connecting | 2 | 818975 | |||||
| 5 | 849096A1 | LINK KIT-Connecting | 1 | 818978 | This Part is No Longer Available | ||||
| 6 | 10-849117 | SCREW-Shoulder | 1 | 10-818980 | |||||
| 7 | 849093 | BELLCRANK-Lower | 1 | 818979 | This Part is No Longer Available 3 | ||||
| 8 | 11-826709109 | NUT (.250-28) | 6 | 11-35045 | |||||
| 9 | 10-821282 | SCREW (.250-28 x .750) | 4 | This Part is No Longer Available | |||||
| 10 | 10-92702 | SCREW (.250-28 x .875)-Link Arm | 2 | ||||||
| 11 | 23-818894 | BUSHING-Carburetor Lever | 2 | ||||||
| 12 | 12-39143 | WASHER | 2 | ||||||
| 13 | 11-826709109 | NUT (.250-28) | 1 | 11-35045 | |||||
| 14 | 24-821001 | SPRING-Throttle Return | 1 | ||||||
| 15 | 11-21825 | NUT (.250-28) | 1 | ||||||
| 16 | 16-728091 | STUD (.250-28 x 1.620) | 1 | 16-72809 | |||||
| 17 | 12-29245 | WASHER | 2 | ||||||
| 18 | 11-8267098 | NUT (.250-20) | 1 | 11-56374 | |||||
| 19 | 818995 | BRACKET-Throttle Cable | 1 | This Part is No Longer Available | |||||
| 20 | 11-826709109 | NUT (.250-28) | 1 | 11-35045 | |||||
| 21 | 11-21825 | NUT (.250-28) | 1 | ||||||
| 22 | 16-728091 | STUD (.250-28 x 1.625) | 1 | 16-72809 | |||||
| 23 | 12-69056 | WASHER | 2 | 12-21631 | |||||
| 24 | 23-31866 | SPACER | 1 | ||||||
| 25 | 11-8267098 | NUT (.250-20) | 1 | 11-56374 | |||||
| 26 | 32-821120A1 | RAIL ASSEMBLY-Fuel | 1 | This Part is No Longer Available | |||||
| 27 | 22-817395 | FITTING (45 Degree) | 1 | ||||||
| 28 | 22-73379 | PLUG (.250-18) | 1 | ||||||
| 29 | 32-821121 | LINE-Fuel-Carb To Rail (Short) | 2 | ||||||
| 30 | 32-821123 | LINE-Fuel-Carb To Rail (Long-Front) | 1 | 32-821122 | This Part is No Longer Available | ||||
| 31 | 32-821123 | LINE-Fuel-Carb To Rail (Long-Rear) | 1 | This Part is No Longer Available | |||||
| - | 27-822740A3 | GASKET SET-Engine Overhaul | 1 | This Part is No Longer Available |
