800 SC (Gen 4-5) GM 572 V8 1991-1996 - Serial 0D763836 and Up - Transmission And Components - VI Drive (Bravo) (Pg 2 0F 2)

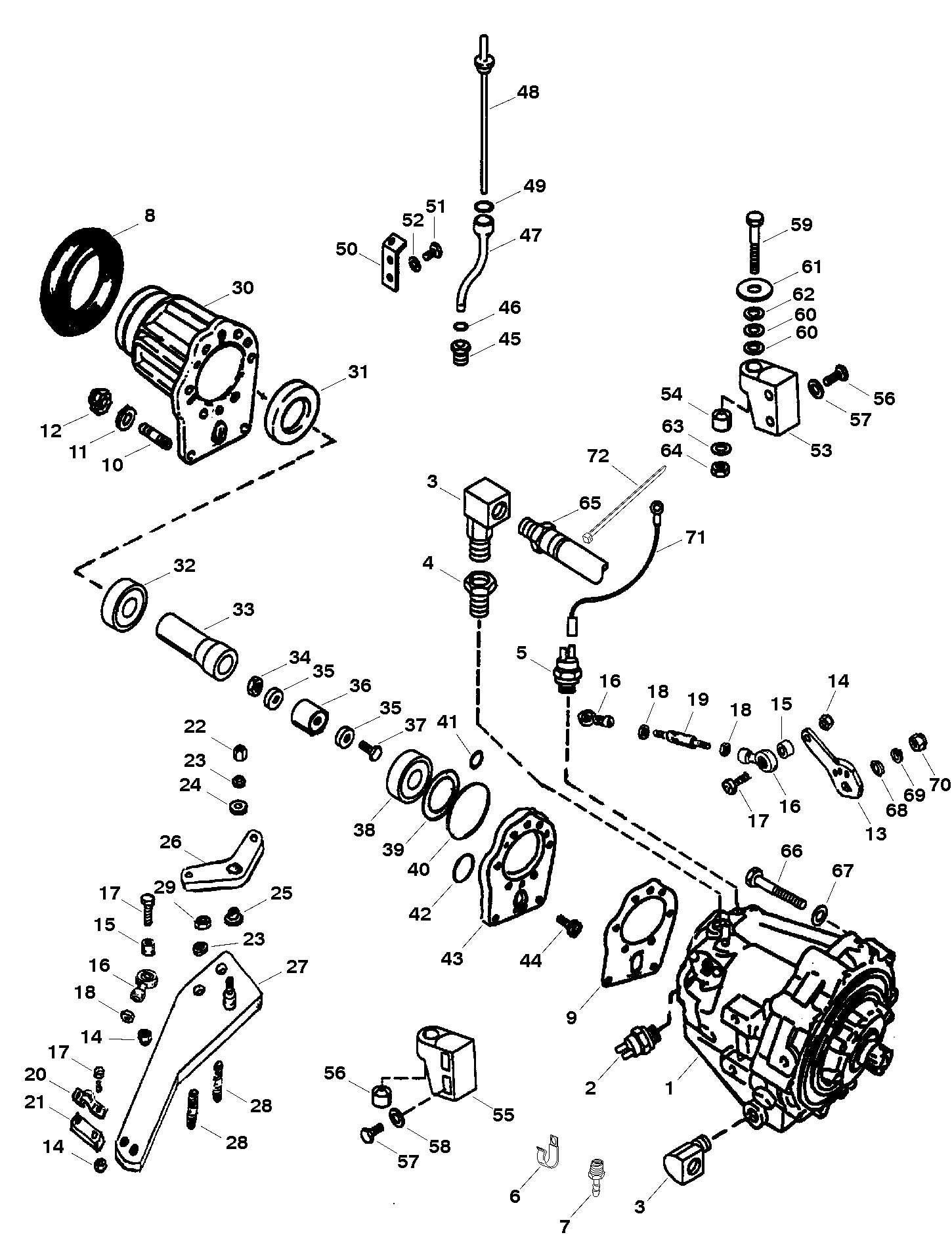

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage (Page 1 0F 2)
- Carburetor And Linkage (Page 2 0F 2)
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover (0F348742 And Below)
- Cylinder Head And Rocker Cover (0F615830 And Up)
- Distributor And Ignition Components
- Driveshaft And Tailstock (Driveline)
- Electrical Components (0D763836 Thru 0F877725)
- Electrical Components (0K000223 And Up)
- Exhaust Manifold Assembly
- Flywheel Housing (Transmission Models)
- Fuel Pump Assembly
- Intake Manifold And Front Cover
- Mount Plates-Engine
- Oil Cooler (Transmission)
- Oil Cooler, Filter And Adaptor (0F348742 And Down)
- Oil Cooler, Filter And Adaptor (0F615830 And Up)
- Oil Pan And Oil Pump
- Power Steering Components
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-808011A1)
- Supercharger
- Thermostat Housing And Water Hoses
- Transmission And Components - VI Drive (Bravo) (Pg 1 0F 2)
- Transmission And Components - VI Drive (Bravo) (Pg 2 0F 2)
- Transmission And Components (Driveline)
- Transmission Components (Plug In) (Page 1 0F 2)
- Transmission Components (Plug In) (Page 2 0F 2)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 821847A1 | TRANSMISSION ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 1 | 821847A5 | TRANSMISSION | 1 | ||||||
| 45 | 48461 | ADAPTOR-Oil Level Gauge Tube | 1 | This Part is No Longer Available | |||||
| 46 | 25-48462 | O RING-Oil Level Gauge Tube | 1 | ||||||
| 47 | 48463 | TUBE-Oil Level Gauge | 1 | This Part is No Longer Available | |||||
| 48 | 48464 | DIPSTICK-Oil Level | 1 | This Part is No Longer Available | |||||
| 49 | 25-35276 | O RING-Oil Level Gauge | 1 | ||||||
| 50 | 48466 | BRACKET-Mounting | 1 | This Part is No Longer Available | |||||
| 51 | 10-34290 | SCREW (.250-20 x .625) | 2 | ||||||
| 52 | 13-26992 | LOCKWASHER (.250) | 2 | ||||||
| 53 | 47340A1 | BRACKET ASSY-Trans Mount (PORT) | 1 | ||||||
| 54 | 35852 | MOUNT-Transmission Bracket | 1 | ||||||
| 55 | 47334A2 | BRACKET ASSY-Trans Mount (STBD) | 1 | This Part is No Longer Available | |||||
| 56 | 35852 | MOUNT-Transmission Bracket | 1 | ||||||
| 57 | 10-47462 | SCREW (.437-14 x 1.250) | 4 | ||||||
| 58 | 13-32993 | LOCKWASHER (.437) | 4 | ||||||
| 59 | 10-47467 | SCREW (.625-18 x 5.500) | 2 | ||||||
| 60 | 12-47466 | WASHER | 4 | ||||||
| 61 | 12-47475 | WASHER | 2 | ||||||
| 62 | 13-34846 | LOCKWASHER | 2 | ||||||
| 63 | 12-33171 | WASHER | 2 | ||||||
| 64 | 11-22339 | NUT (.625-18) | 2 | ||||||
| 65 | 32-475166 | HOSE (30.00 In.)-Transmission to Oil Cooler | 2 | ||||||
| 66 | 10-60179 | SCREW (.437-14 x 3.500) | 6 | ||||||
| 67 | 13-32993 | LOCKWASHER (.437) | 6 | ||||||
| 68 | 12-20722 | WASHER-Lever to Transmission | 1 | This Part is No Longer Available | |||||
| 69 | 13-39107 | 700-21496 | LOCKWASHER (.312) | 1 | |||||
| 70 | 11-22053 | NUT (.312-24) | 1 | ||||||
| 71 | 84-88032A5 | CABLE ASSEMBLY (Tan/Blue) | 1 | ||||||
| 71 | 84-86322A29 | CABLE ASSEMBLY (Black) | 1 | ||||||
| 72 | 77054 | STA STRAP (14.500 In.) | 1 |
