800 SC (Gen 4-5) GM 572 V8 1991-1996 - Serial 0D763836 and Up - Intake Manifold And Front Cover

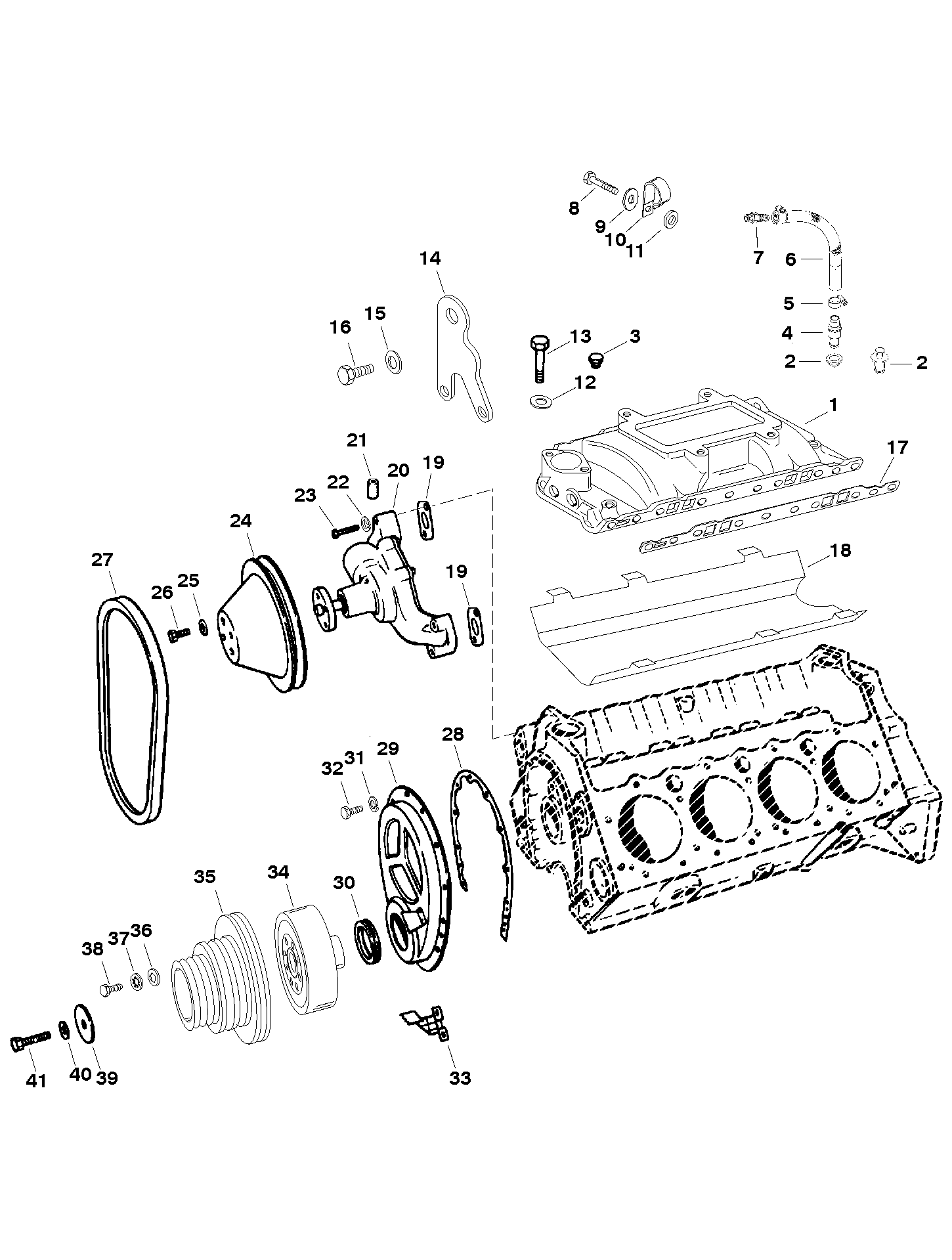

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage (Page 1 0F 2)
- Carburetor And Linkage (Page 2 0F 2)
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover (0F348742 And Below)
- Cylinder Head And Rocker Cover (0F615830 And Up)
- Distributor And Ignition Components
- Driveshaft And Tailstock (Driveline)
- Electrical Components (0D763836 Thru 0F877725)
- Electrical Components (0K000223 And Up)
- Exhaust Manifold Assembly
- Flywheel Housing (Transmission Models)
- Fuel Pump Assembly
- Intake Manifold And Front Cover
- Mount Plates-Engine
- Oil Cooler (Transmission)
- Oil Cooler, Filter And Adaptor (0F348742 And Down)
- Oil Cooler, Filter And Adaptor (0F615830 And Up)
- Oil Pan And Oil Pump
- Power Steering Components
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-808011A1)
- Supercharger
- Thermostat Housing And Water Hoses
- Transmission And Components - VI Drive (Bravo) (Pg 1 0F 2)
- Transmission And Components - VI Drive (Bravo) (Pg 2 0F 2)
- Transmission And Components (Driveline)
- Transmission Components (Plug In) (Page 1 0F 2)
- Transmission Components (Plug In) (Page 2 0F 2)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 848584T1 | MANIFOLD-Intake | 1 | 848137 | This Part is No Longer Available (SERIAL # 0F348742 AND DOWN) 3 | ||||
| 1 | 848584T1 | MANIFOLD ASSY-Intake | 1 | 848584A1 | This Part is No Longer Available (SERIAL # 0F615830 AND UP) 2 | ||||
| 2 | 25-811553 | GROMMET | 1 | ||||||
| 2 | 22-848646 | PLUG-Grommet | 1 | (WITHOUT PCV VALVE) | |||||
| 3 | 22-328022 | PLUG-Manifold | 1 | 22-32802 | 3 | ||||
| 4 | 848578 | VALVE ASSEMBLY-Vent | 1 | (SERIAL # 0F615830 AND UP) | |||||
| 5 | 54-815504104 | CLAMP | 1 | (SERIAL # 0F615830 AND UP) | |||||
| 6 | 32-823229A5 | HOSE ASSEMBLY (21.00 In.) | 1 | This Part is No Longer Available (SERIAL # 0F615830 AND UP) | |||||
| 7 | 22-823195 | ADAPTOR | 1 | This Part is No Longer Available (SERIAL # 0F615830 AND UP) | |||||
| 8 | 10-821281 | SCREW (.312-18 x 2.50) | 1 | ||||||
| 9 | 12-70132 | WASHER | 1 | ||||||
| 10 | 54-78945 | J CLIP | 1 | ||||||
| 11 | 821018 | SPACER | 1 | This Part is No Longer Available | |||||
| 12 | 12-37828 | WASHER | 16 | 2 | |||||
| 13 | 10-822168 | SCREW (.375-16 x 1.750) | 13 | 2 | |||||
| 13 | 10-848160 | SCREW (.375-16 x 1.380)-Socket Head | 1 | 2 | |||||
| 13 | 10-842787 | SCREW (.375-16 x 2.00)-Socket Head | 2 | 10-47432 | 2 | ||||
| 14 | 848129 | LIFTING EYE | 1 | 818985 | 2 | ||||
| 15 | 12-45175 | WASHER | 3 | 3 | |||||
| 16 | 10-58642 | SCREW (.375-16 x 1.500) | 1 | ||||||
| 16 | 10-35047 | SCREW (.375-16 x 1.250) | 2 | ||||||
| 17 | 27-8181881 | GASKET-Intake Manifold | 2 | 27-818188 | 2,3,5 | ||||
| 18 | 845756T | SHIELD-Oil-Intake | 1 | 816073 | 2 | ||||
| 19 | 27-49110 | GASKET-Water Pump Mount | 2 | 2,5 | |||||
| 20 | 8504541 | PUMP ASSEMBLY-Water | 1 | 811573 | 2 | ||||
| 21 | 22-845174 | PLUG-Circulating Pump | 2 | 22-61162 | 2 | ||||
| 22 | 13-35048 | LOCKWASHER (.375) | 4 | 2 | |||||
| 23 | 10-32132 | SCREW (.375-16 x 1.750) | 4 | 2 | |||||
| 24 | 523491 | PULLEY (BLUE) | 1 | This Part is No Longer Available | |||||
| 25 | 13-39107 | 700-21496 | LOCKWASHER (.312) | 4 | |||||
| 26 | 10-47277 | SCREW (.312-24 x .750) | 4 | ||||||
| 27 | 57-816034Q | V BELT | 1 | 57-816034 | |||||
| 28 | 27-54529 | 676-9-61601 | 700-30440 | GASKET | 1 | 2,5 | |||
| 29 | 66215 | COVER ASSEMBLY-Timing Chain | 1 | This Part is No Longer Available 2 | |||||
| 30 | 26-8219471 | SEAL-Oil | 1 | 5 | |||||
| 31 | 13-26992 | LOCKWASHER (.250) | 10 | 2 | |||||
| 32 | 10-28635 | SCREW (.250-20 x .625) | 10 | 2 | |||||
| 33 | 59966 | POINTER-Timing | 1 | 2 | |||||
| 34 | 847679 | DAMPER-Torsional | 1 | This Part is No Longer Available 2 | |||||
| 35 | 847700 | PULLEY-Crankshaft (BLUE) | 1 | This Part is No Longer Available 2 | |||||
| 36 | 12-20553 | WASHER | 3 | 2 | |||||
| 37 | 13-35048 | LOCKWASHER (.375) | 3 | 2 | |||||
| 38 | 10-524091 | SCREW (.375-24 x 3.250) | 3 | This Part is No Longer Available 2 | |||||
| 39 | 12-49103 | WASHER | 1 | 2 | |||||
| 40 | 13-38829 | LOCKWASHER (.500) | 1 | 2 | |||||
| 41 | 10-8M2011240 | SCREW-Crankshaft | 1 | 10-48490 | 2 | ||||
| - | 27-822740A3 | GASKET SET-Engine Overhaul | 1 | This Part is No Longer Available | |||||
| - | 847718A10 | COMPONET OF PARTIAL ENGINE | This Part is No Longer Available |
