800 SC (Gen 4-5) GM 572 V8 1991-1996 - Serial 0D763836 and Up - Transmission And Components - VI Drive (Bravo) (Pg 1 0F 2)

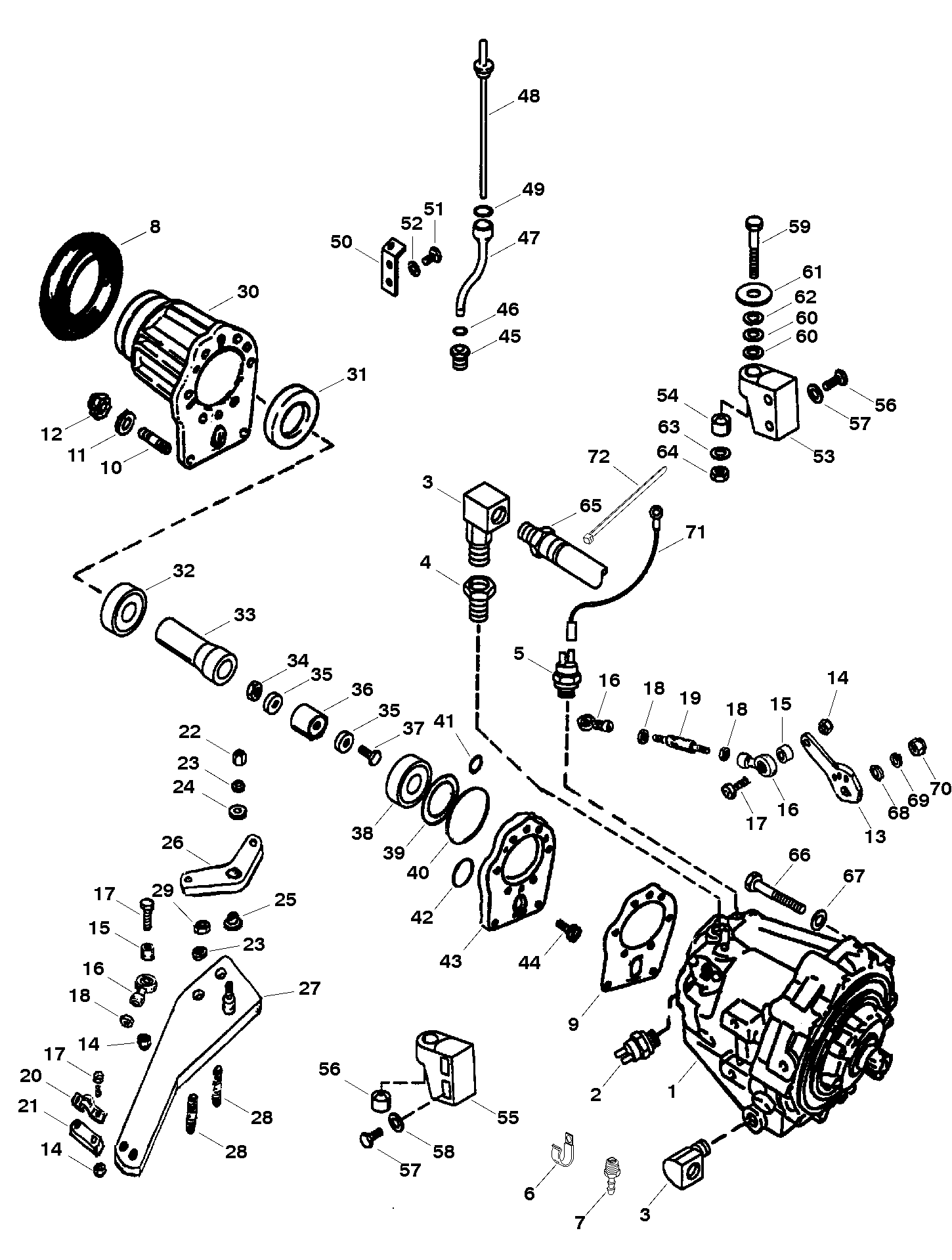

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage (Page 1 0F 2)
- Carburetor And Linkage (Page 2 0F 2)
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover (0F348742 And Below)
- Cylinder Head And Rocker Cover (0F615830 And Up)
- Distributor And Ignition Components
- Driveshaft And Tailstock (Driveline)
- Electrical Components (0D763836 Thru 0F877725)
- Electrical Components (0K000223 And Up)
- Exhaust Manifold Assembly
- Flywheel Housing (Transmission Models)
- Fuel Pump Assembly
- Intake Manifold And Front Cover
- Mount Plates-Engine
- Oil Cooler (Transmission)
- Oil Cooler, Filter And Adaptor (0F348742 And Down)
- Oil Cooler, Filter And Adaptor (0F615830 And Up)
- Oil Pan And Oil Pump
- Power Steering Components
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-808011A1)
- Supercharger
- Thermostat Housing And Water Hoses
- Transmission And Components - VI Drive (Bravo) (Pg 1 0F 2)
- Transmission And Components - VI Drive (Bravo) (Pg 2 0F 2)
- Transmission And Components (Driveline)
- Transmission Components (Plug In) (Page 1 0F 2)
- Transmission Components (Plug In) (Page 2 0F 2)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 821847A1 | TRANSMISSION ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 1 | 821847A5 | TRANSMISSION | 1 | ||||||
| 2 | 47613 | SWITCH-Neutral | 1 | ||||||
| 3 | 22-47629 | ELBOW-Transmission To Oil Hose | 2 | ||||||
| 4 | 22-88517 | FITTING-Reducing-Transmission Elbow | 1 | ||||||
| 5 | 87-88031 | SWITCH-Oil Temp | 1 | ||||||
| 6 | 54-47483 | J CLIP | 1 | ||||||
| 7 | 22-63186 | FITTING (.125-27) (To Hose On Bottle) | 1 | ||||||
| - | 847145T1 | SUPPORT/LEVER KIT-U Joint | 1 | 847145A1 | |||||
| 8 | 846693 | SEAL-Housing | 1 | ||||||
| 9 | 27-47903 | GASKET-Trans to Support Housing | 1 | ||||||
| 10 | 16-847030 | STUD (.437 x 3.00 In.) | 6 | ||||||
| 10 | 16-847031 | STUD (.437 x 2.750 In.) | 2 | ||||||
| 11 | 12-842922 | WASHER | 8 | ||||||
| 12 | 11-34933 | 676-9-72004 | NUT (.437-20) | 8 | |||||
| 13 | 847052 | LEVER-Shift-Transmission | 1 | ||||||
| 14 | 11-8267096 | NUT (#10-32) | 5 | 11-34059 | |||||
| 15 | 23-846787 | SPACER-Rod End | 3 | ||||||
| 16 | 846786 | END-Rod | 3 | ||||||
| 17 | 10-34994 | SCREW (#10-32 x 1.00) | 5 | ||||||
| 18 | 11-68219 | NUT (#10-32) | 3 | ||||||
| 19 | 16-846964 | STUD-Shift Rod | 1 | ||||||
| 20 | 54-846341 | BRACKET-Shift Cable | 1 | ||||||
| 21 | 846344 | SPACER-Cable Bracket | 1 | ||||||
| 22 | 11-826709113 | NUT (.375-24) | 1 | 11-34863 | |||||
| 23 | 12-841388 | WASHER | 3 | ||||||
| 24 | 12-846783 | WASHER-Nylon | 1 | ||||||
| 25 | 23-812707 | BUSHING | 1 | ||||||
| 26 | 847025 | ARM-Shift Cable | 1 | ||||||
| 27 | 8M0053746 | PLATE ASSY-Shift Linkage Mount | 1 | 847175 | |||||
| 28 | 16-846453 | STUD-Mounting Plate | 2 | ||||||
| 29 | 11-826709112 | NUT (.375-16) | 2 | 11-846869 | |||||
| - | 8M0050742 | SUPPORT ASSEMBLY-U Joint | 1 | 847123A1 | |||||
| 30 | 8M0054154 | HOUSING-U Joint Support | 1 | 8469611 | |||||
| 31 | 26-846497 | SEAL-Coupler-Inner | 1 | ||||||
| 32 | 31-846477A1 | BEARING ASSY-Coupler-Rear | 1 | ||||||
| 33 | 8M0050930 | SHAFT-Coupling | 1 | 846960 | This Part is No Longer Available | ||||
| 34 | 11-82670910 | NUT (.312-18) | 1 | 11-67980 | |||||
| 35 | 12-846967 | WASHER | 2 | ||||||
| 36 | 23-847027 | SEAL-Coupler | 1 | ||||||
| 37 | 10-847209 | SCREW (.375-16 x 1.250) | 1 | ||||||
| 38 | 31-846695A1 | BEARING ASSY-Coupler-Front | 1 | ||||||
| 39 | 15-847029A1 | SHIM SET-Bearing | 2 | ||||||
| 40 | 25-841807 | O RING (3.500 x 3.690) | 1 | ||||||
| 41 | 25-847033 | O RING (.440 x .620) | 1 | ||||||
| 42 | 25-847034 | O RING (1.120 x 1.310) | 1 | ||||||
| 43 | 8470121 | SPACER-U Joint | 1 | ||||||
| 44 | 10-30206 | 700-22430 | SCREW (.375-16 x 1.00) | 3 |
