800 SC (Gen 4-5) GM 572 V8 1991-1996 - Serial 0D763836 and Up - Electrical Components (0K000223 And Up)

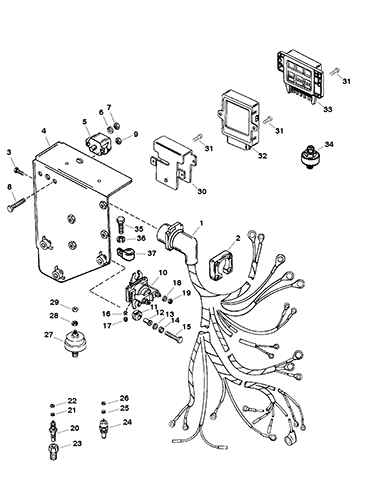

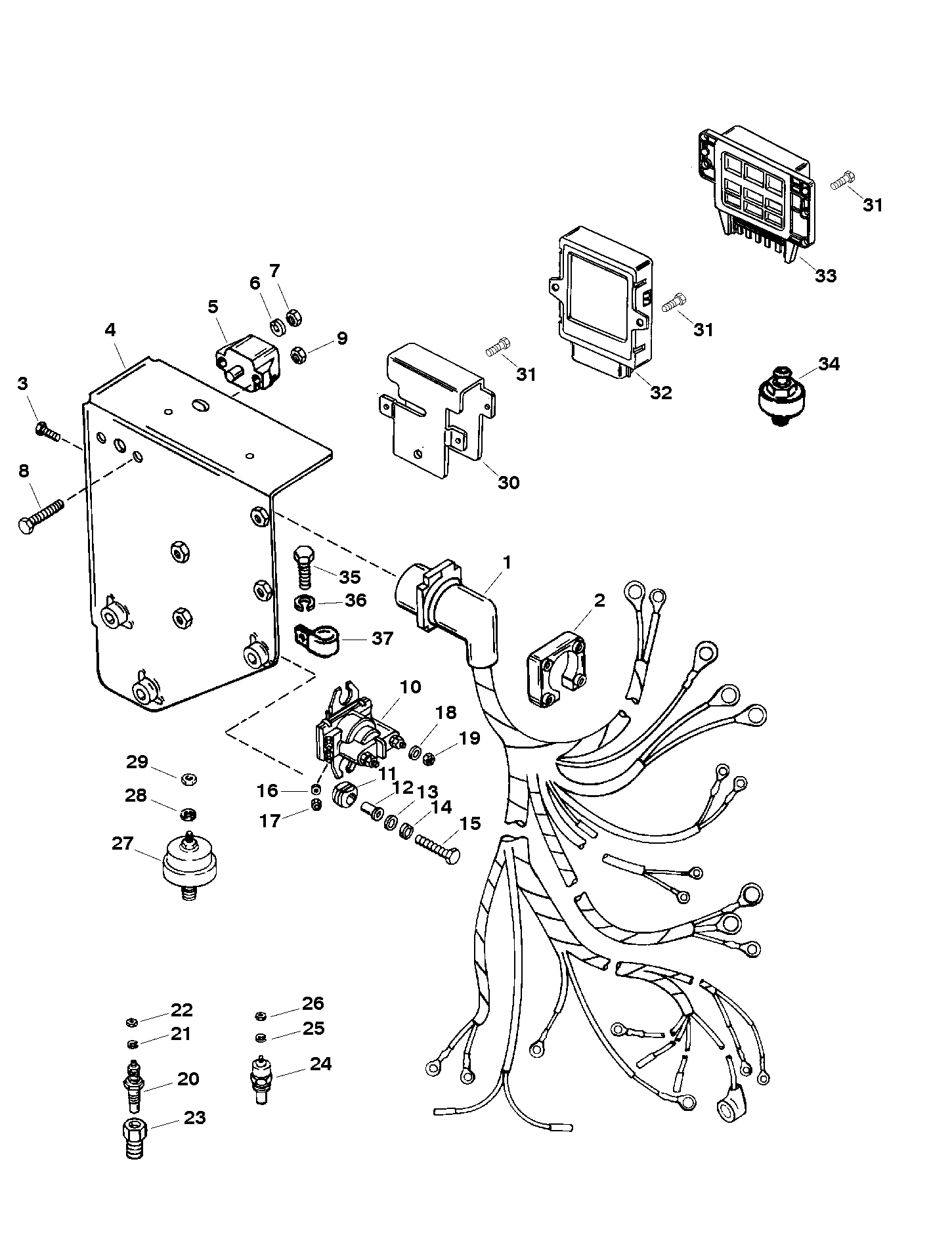

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage (Page 1 0F 2)
- Carburetor And Linkage (Page 2 0F 2)
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover (0F348742 And Below)
- Cylinder Head And Rocker Cover (0F615830 And Up)
- Distributor And Ignition Components
- Driveshaft And Tailstock (Driveline)
- Electrical Components (0D763836 Thru 0F877725)
- Electrical Components (0K000223 And Up)
- Exhaust Manifold Assembly
- Flywheel Housing (Transmission Models)
- Fuel Pump Assembly
- Intake Manifold And Front Cover
- Mount Plates-Engine
- Oil Cooler (Transmission)
- Oil Cooler, Filter And Adaptor (0F348742 And Down)
- Oil Cooler, Filter And Adaptor (0F615830 And Up)
- Oil Pan And Oil Pump
- Power Steering Components
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-808011A1)
- Supercharger
- Thermostat Housing And Water Hoses
- Transmission And Components - VI Drive (Bravo) (Pg 1 0F 2)
- Transmission And Components - VI Drive (Bravo) (Pg 2 0F 2)
- Transmission And Components (Driveline)
- Transmission Components (Plug In) (Page 1 0F 2)
- Transmission Components (Plug In) (Page 2 0F 2)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 84-849142A1 | HARNESS ASSEMBLY-Wiring | 1 | ||||||
| 2 | 26079A2 | PLATE KIT | 1 | ||||||
| 3 | 10-15001 | SCREW (#8-16 x .875) | 4 | ||||||
| 4 | 848734T1 | BRACKET-Electrical Components | 1 | 8487341 | This Part is No Longer Available | ||||
| 5 | 88-11178A01 | BREAKER-Circuit (50 AMP) | 1 | 88-11178 | This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work. | ||||
| 6 | 13-26996 | LOCKWASHER (#10) | 2 | ||||||
| 7 | 11-68219 | NUT (#10-32) | 2 | ||||||
| 8 | 10-45862 | SCREW (#10-32 x .875) | 2 | ||||||
| 9 | 11-61356 | NUT (#10-32) | 2 | ||||||
| 10 | 89-818999A2 | SOLENOID ASSEMBLY-Starter | 1 | ||||||
| 11 | 25-818967 | GROMMET | 2 | ||||||
| 12 | 23-818968 | BUSHING | 2 | ||||||
| 13 | 12-29245 | WASHER | 2 | ||||||
| 14 | 13-26992 | LOCKWASHER (.250) | 2 | ||||||
| 15 | 10-76630 | SCREW (.250-20 x 1.00) | 2 | ||||||
| 16 | 13-26995 | LOCKWASHER (#8) | 2 | ||||||
| 17 | 11-26419 | NUT (#8-32) | 2 | ||||||
| 18 | 13-26992 | LOCKWASHER (.250) | 2 | ||||||
| 19 | 11-94330 | NUT (.250-20) | 2 | ||||||
| 20 | 849363 | SENDER ASSEMBLY-Oil Temperature | 1 | ||||||
| 21 | 13-26996 | LOCKWASHER (#10) | 1 | ||||||
| 22 | 11-45076 | NUT (#10-32) | 1 | ||||||
| 23 | 22-64013 | REDUCER-Engine Block | 1 | ||||||
| 24 | 806490T | SENDER ASSY-Water Temperature | 1 | 97257A1 | |||||
| 24 | 49734 | SENDER ASSY-Water Temperature | OPT | (DUAL) 6 | |||||
| 25 | 13-26996 | LOCKWASHER (#10) | 1 | ||||||
| 26 | 11-45076 | NUT (#10-32) | 1 | ||||||
| 27 | 8M0068784 | SENDER ASSEMBLY-Oil Pressure | 1 | 815425 | |||||
| 27 | 37293T | SENDER ASSEMBLY-Oil Pressure | OPT | 37293 | (DUAL) 6 | ||||
| 28 | 13-26996 | LOCKWASHER (#10) | 1 | ||||||
| 29 | 11-45076 | NUT (#10-32) | 1 | ||||||
| 30 | 807763T | BRACKET-Module Mounting | 1 | ||||||
| 31 | 10-806827 | SCREW (#8-32 x .375) | 6 | ||||||
| 32 | 8488251 | MODULE-Ignition | 1 | ||||||
| 33 | 805443 | MODULE ASSEMBLY-Spark Control | 1 | 805443T | This Part is No Longer Available | ||||
| 34 | 8M0077616 | SENSOR ASSEMBLY-Knock | 1 | 805544T | |||||
| 35 | 10-37612 | SCREW (.375-16 x 1.250) | 3 | ||||||
| 36 | 13-35048 | LOCKWASHER (.375) | 3 | ||||||
| 37 | 54-848183 | J CLIP-Wiring Harness | 1 |
