5.7LX EFI (4 BBL-TBI) GM 350 V-8 1996 - Serial 0F752400 Thru 0K001505 - Shift Bracket (Bravo Engines)

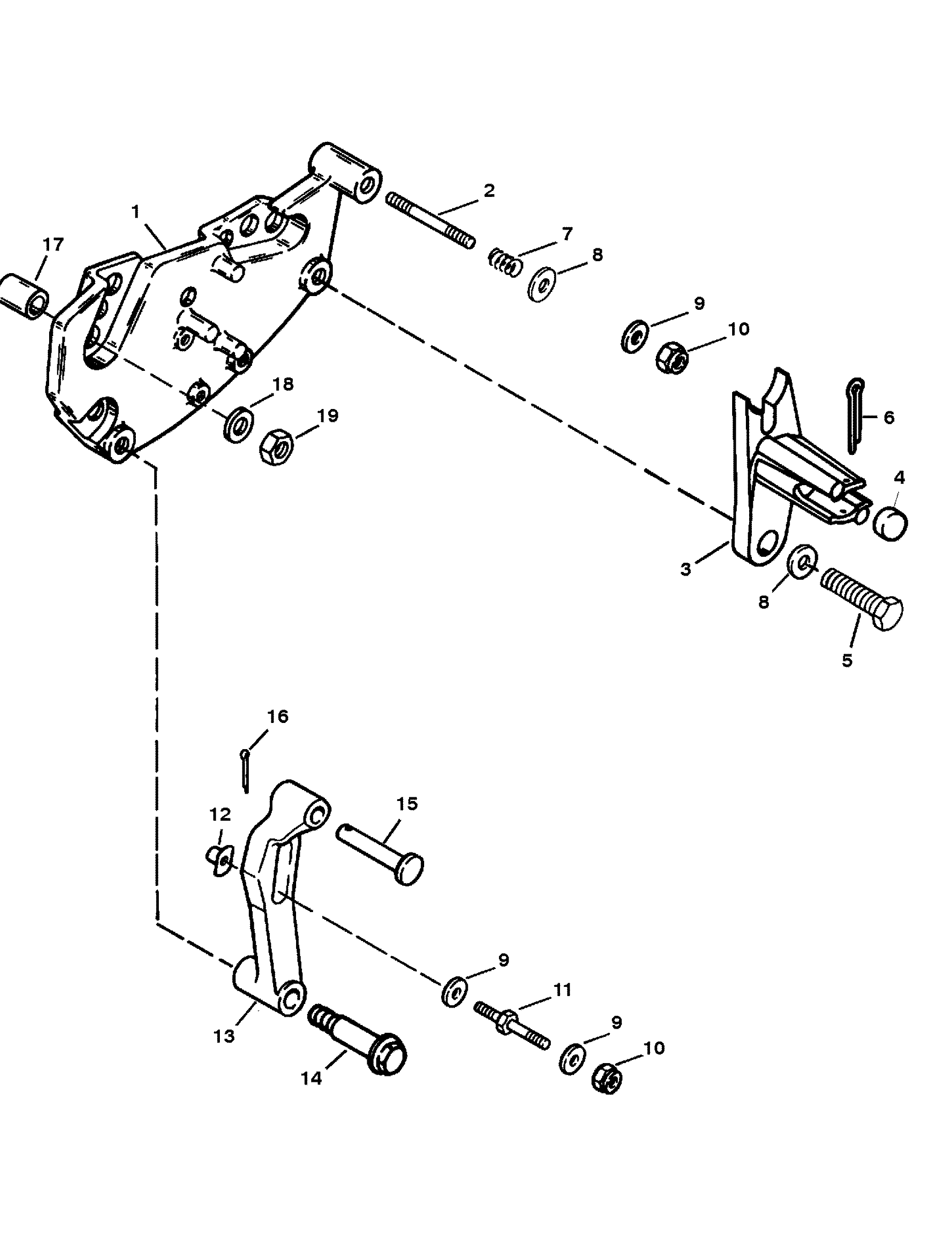

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 807962A15



SHIFT BRACKET ASSEMBLY 1 99237A10
2 16-865154A02



STUD 1 16-987981
3 865434A02



RETAINER 1 123811
4 23-98828



SPACER 1

5 10-53167



SCREW 1

6 18-328571



COTTER PIN 1 18-32857
7 24-98880



SPRING 1

8 12-56720



WASHER 2

9 12-35462



WASHER 5

10 11-8267119



NUT 2 11-13438
11 16-96112



STUD 1

12 11-63341



TEE NUT 1

13 863911A12



SHIFT LEVER 1 138981
14 10-13743



SHOULDER SCREW 1

15 17-68402



SHOULDER PIN 1

16 18-210711



COTTER 1 18-21071
17 23-92152T



SPACER 3 23-92152
18 12-35462



WASHER 3

19 11-64015



NUT 3
