5.7LX EFI (4 BBL-TBI) GM 350 V-8 1996 - Serial 0F752400 Thru 0K001505 - Cylinder Block And Camshaft (5.7L Alpha / Bravo)

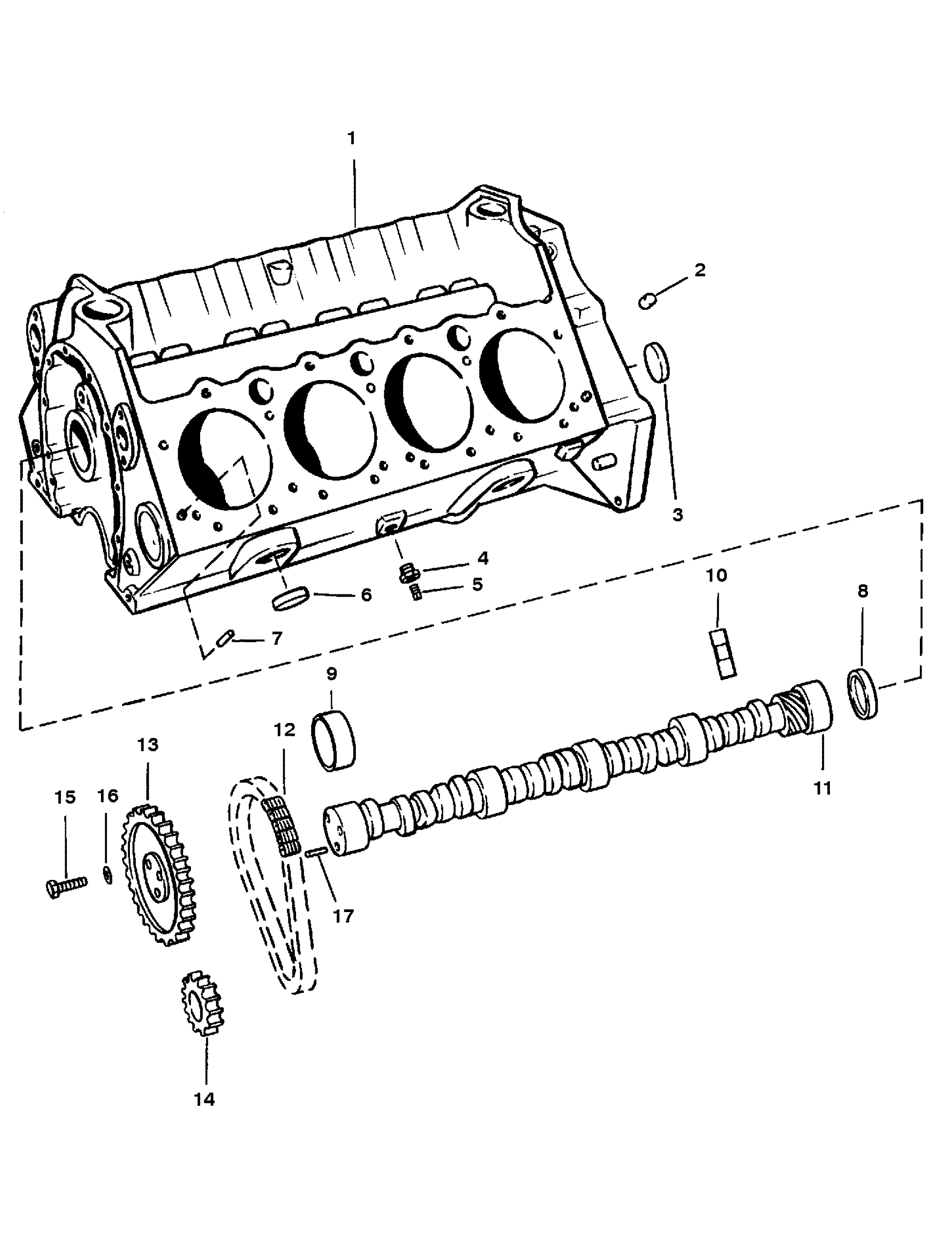

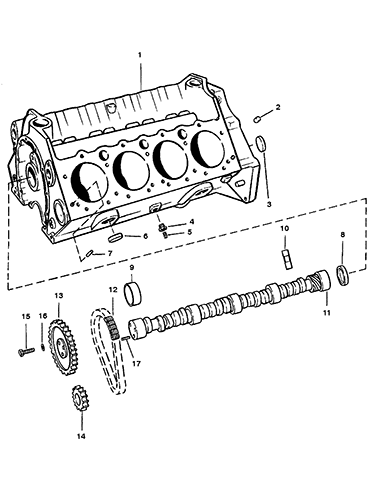

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 NSS         NOT SOLD SEPARATE, CYLINDER BLOCK 1
This Part is not sold separately (ORDER LONG BLOCK 807315A1) 1,2,3,4
2 22-48340         PIPE PLUG (1/4") 3

3 19-816565         EXPANSION PLUG (15/32") 5

4 22-48556         BUSHING 2

5 22-328022         PIPE PLUG 2 22-328021
6 19-34270         EXPANSION PLUG (1-5/8" DIA.) 8

7 17-35465         DOWEL PIN (5/16" DIA.) 4

8 22-72640         PLUG 1

9 23-85674         BEARING UNIT (SET) 1

10 72638         LIFTER 16

11 431-5943         CAMSHAFT 1

12 17161T         CHAIN 1 17161
13 43-17159         SPROCKET 1   This Part is No Longer Available
14 43-17160         SPROCKET 1

15 10-845942         BOLT (3/4") 3 10-35339
16 12-848136         WASHER 3

17 17-843378         PIN 1 17-35312
- 883944R5         MARINE LONG BLOCK ENGINE (2 BBL TBI) 1 807315A1
- 92-809825         SEALER-RED RTV (WHERE APPLICABLE) 1

- 34227Q02         PERFECT SEAL (WHERE APPLICABLE) 1 92-342271
