5.7LX EFI (4 BBL-TBI) GM 350 V-8 1996 - Serial 0F752400 Thru 0K001505 - Throttle Linkage (Alpha Engines)

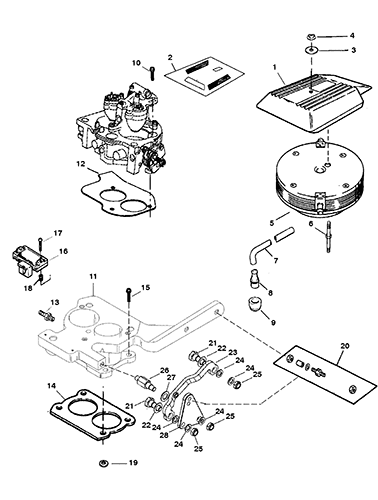

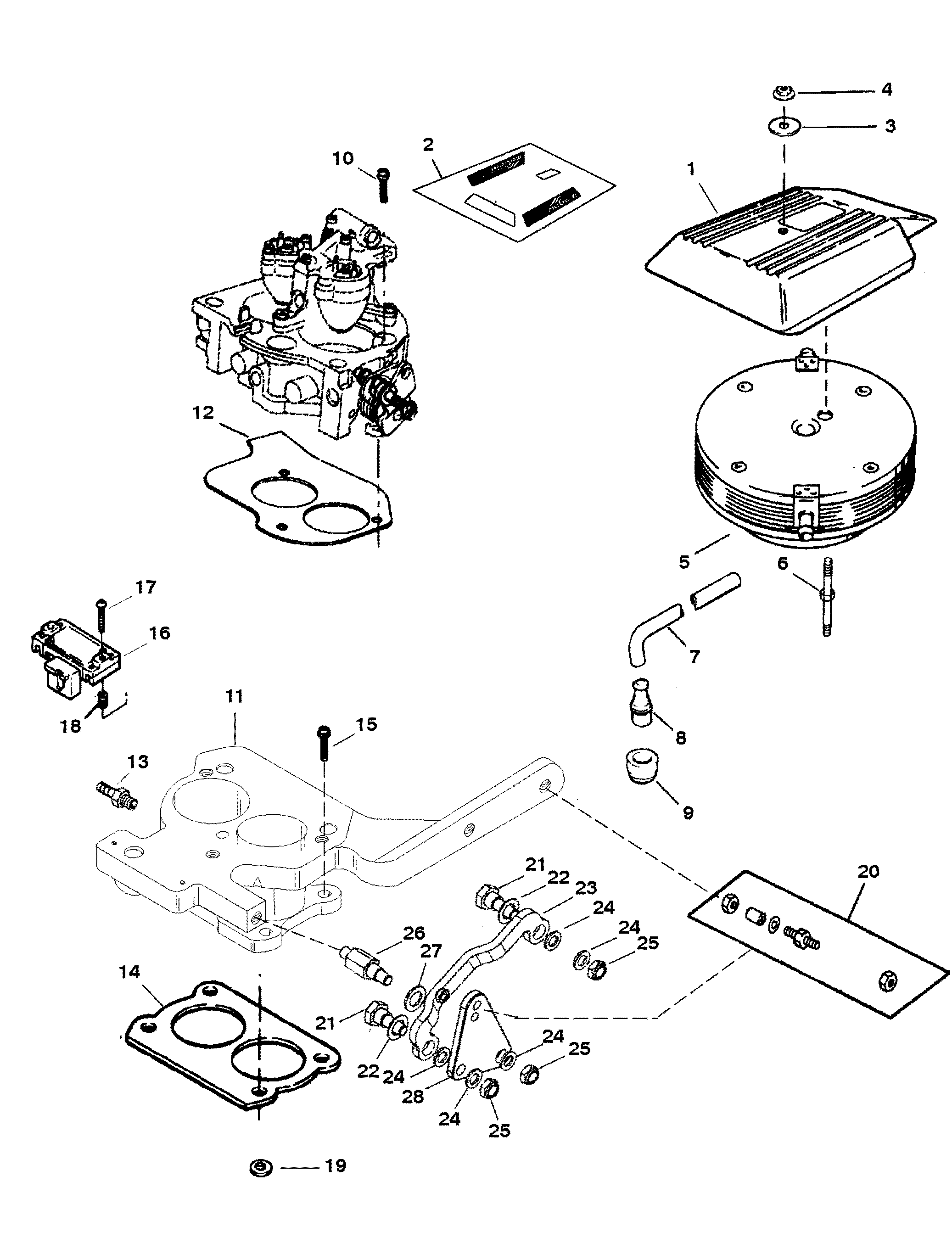

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 18484A3         COVER 1

2 37-812776A34         DECAL SET 1   This Part is No Longer Available
3 12-86400         WASHER 1

4 11-826709109         NUT 1 11-35045
5 806637A1         FLAME ARRESTOR 1 806637T This Part is No Longer Available
6 16-806703         STUD 1

7 32-1589424         HOSE 2 32-1589418
8 97850T         ELBOW (90 DEG.) 2 97850
9 25-52188         GROMMET 2

10 10-805390         SCREW 3

11 807486A1         ADAPTOR ASSEMBLY 1   This Part is No Longer Available
12 27-806640         GASKET 1
5
13 22-805691         FITTING 1

14 27-8079821         GASKET 1 27-701431 5
15 10-807717         SCREW 4   This Part is No Longer Available
16 864856A1         MAP SENSOR 1 805217A1
17 10-807120         SCREW 2

18 26-805412         SEAL 1

19 22-48358T         PLUG 1 22-48358
20 16-97477A3         STUD KIT 2

21 10-806946         BOLT 2

22 12-861854         WASHER 2 12-91964
23 807097T         CONNECTOR 1

24 12-20084         WASHER 5

25 11-826709111         NUT 3 11-45592
26 806915         SHAFT 1

27 12-79552         WASHER 1

28 806916T         PLATE 1

- 27-806871A96         GASKET SET-OVERHAUL 1
